Installation Procedure

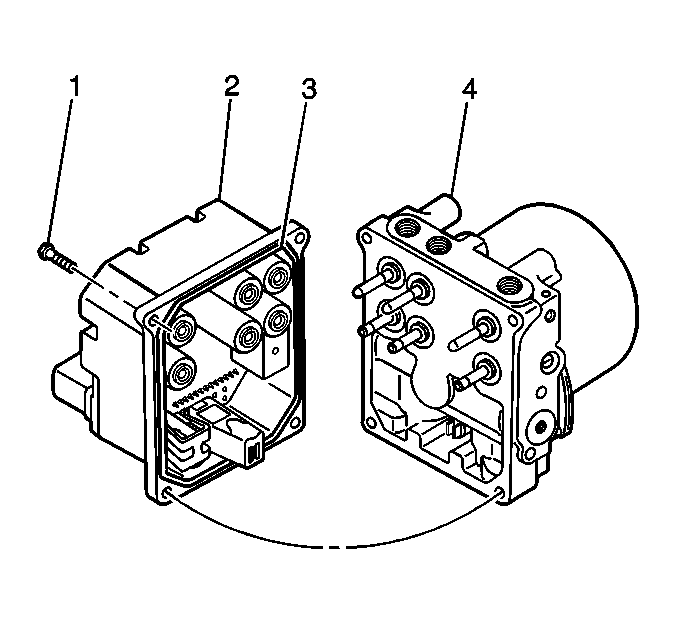

- Clean the EBCM gasket and the BPMV surface with alcohol using a clean rag.
- Install the EBCM (2) to the BPMV (4).
- Install the four screws (1) that attaches the EBCM (2) to BPMV (4).
Tighten: Tighten the four screws to 5 N.m (44 lb in).

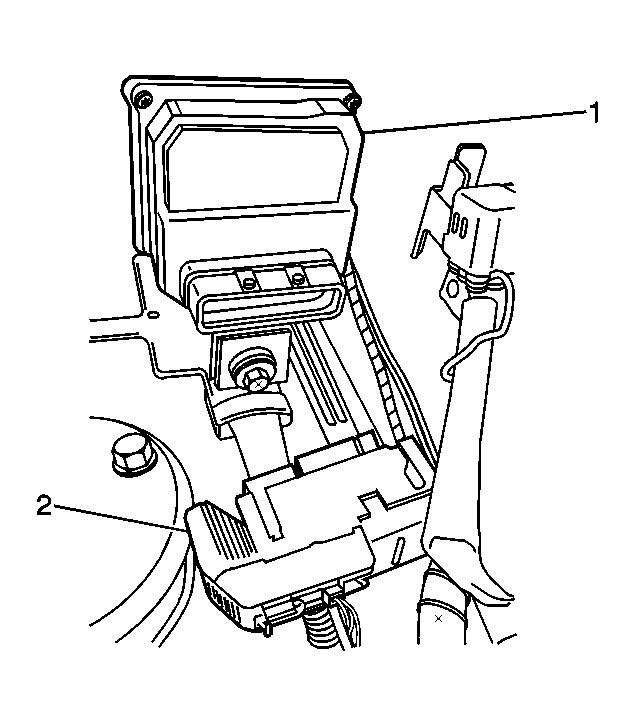

- Connect the EBCM harness connector (2).
- Push down lock tab and then move sliding connector cover back in the home position to lock.
- Push the CPA (2) back into place.
- Perform Diagnostic System Check - ABS .
