2004 Chevrolet Tracker 4WDFACTORY OEM SERVICE PROCEDURE
Installation Procedure

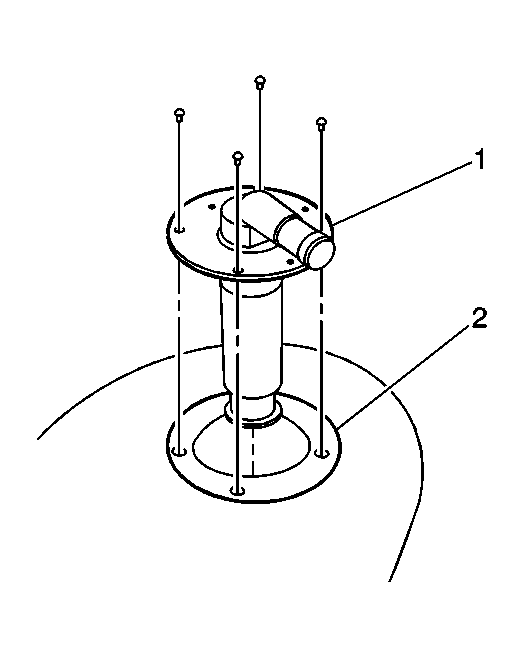

- Install the fuel tank vent valve (1) and the gasket (2) to the fuel tank.
- Secure the fuel tank vent valve (1) to the fuel tank with the four fasteners.
Tighten: Tighten the fasteners to 3.5 N.m (30 lb in).
- Connect the vapor hose to the fuel tank vent valve.
- Install the fuel tank. Refer to Fuel Tank Replacement .
NOTE:
Refer to Fastener Notice in Cautions and Notices.
