2004 Chevrolet Tracker 4WDFACTORY OEM SERVICE PROCEDURE

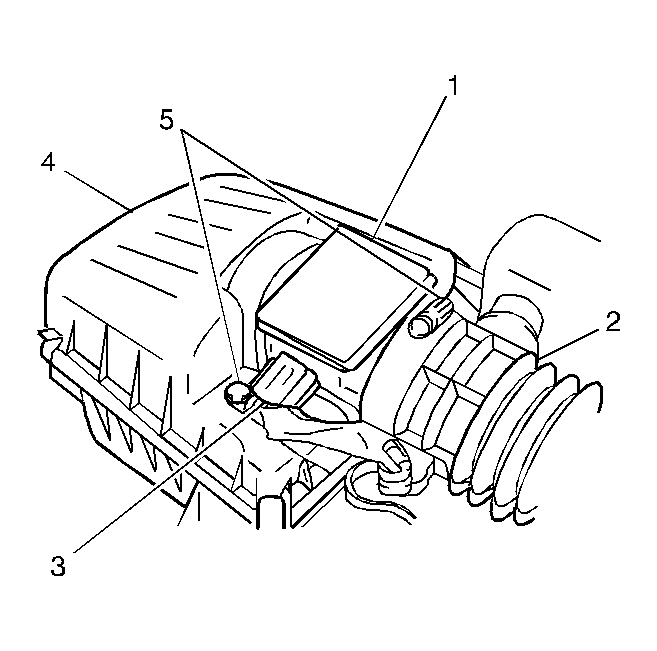

Removal Procedure
- Remove intake manifold air inlet duct (2).
- Disconnect the MAF sensor electrical connector (3).
- Remove the 2 MAF sensor bracket attaching bolts (5).
- Remove the MAF sensor (1) from the air filter housing (4).
