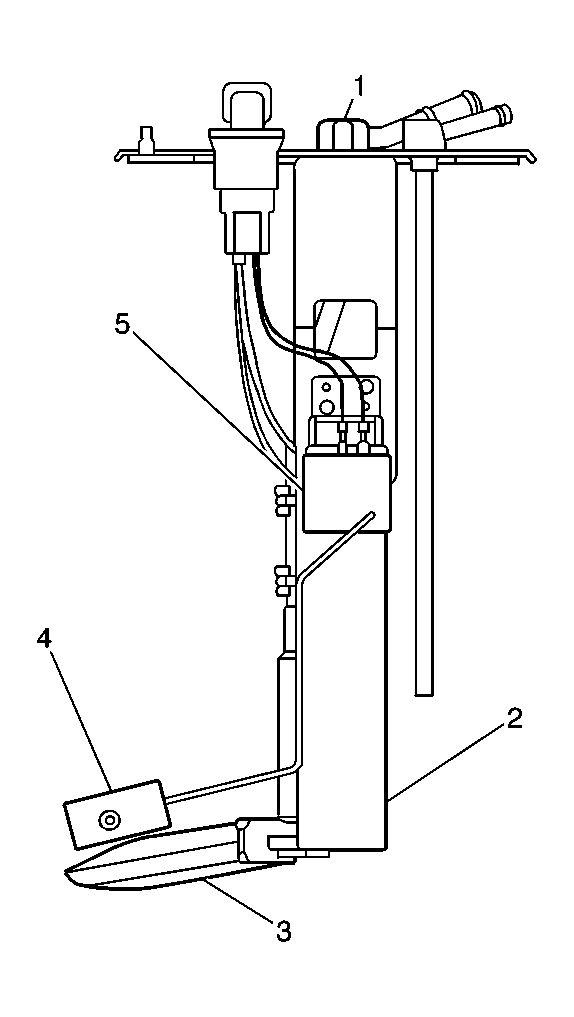

Fuel Sender Assembly
| Callout | Component Name |
|---|---|
| 1 | Fuel Sender Assembly |
| 2 | Fuel Pump |
| 3 | Fuel Strainer |
| 4 | Fuel Level Float |
| 5 | Fuel Level Sensor |
The fuel sender assembly is located in the fuel tank. The fuel sender assembly contains the electric fuel pump and the fuel level sensor, or fuel gauge sender. The fuel sender assembly is fastened to the fuel tank with 6 bolts and sealed with a gasket.
