2004 Chevrolet SSRFACTORY OEM SERVICE PROCEDURE

Power Outlet Component Views

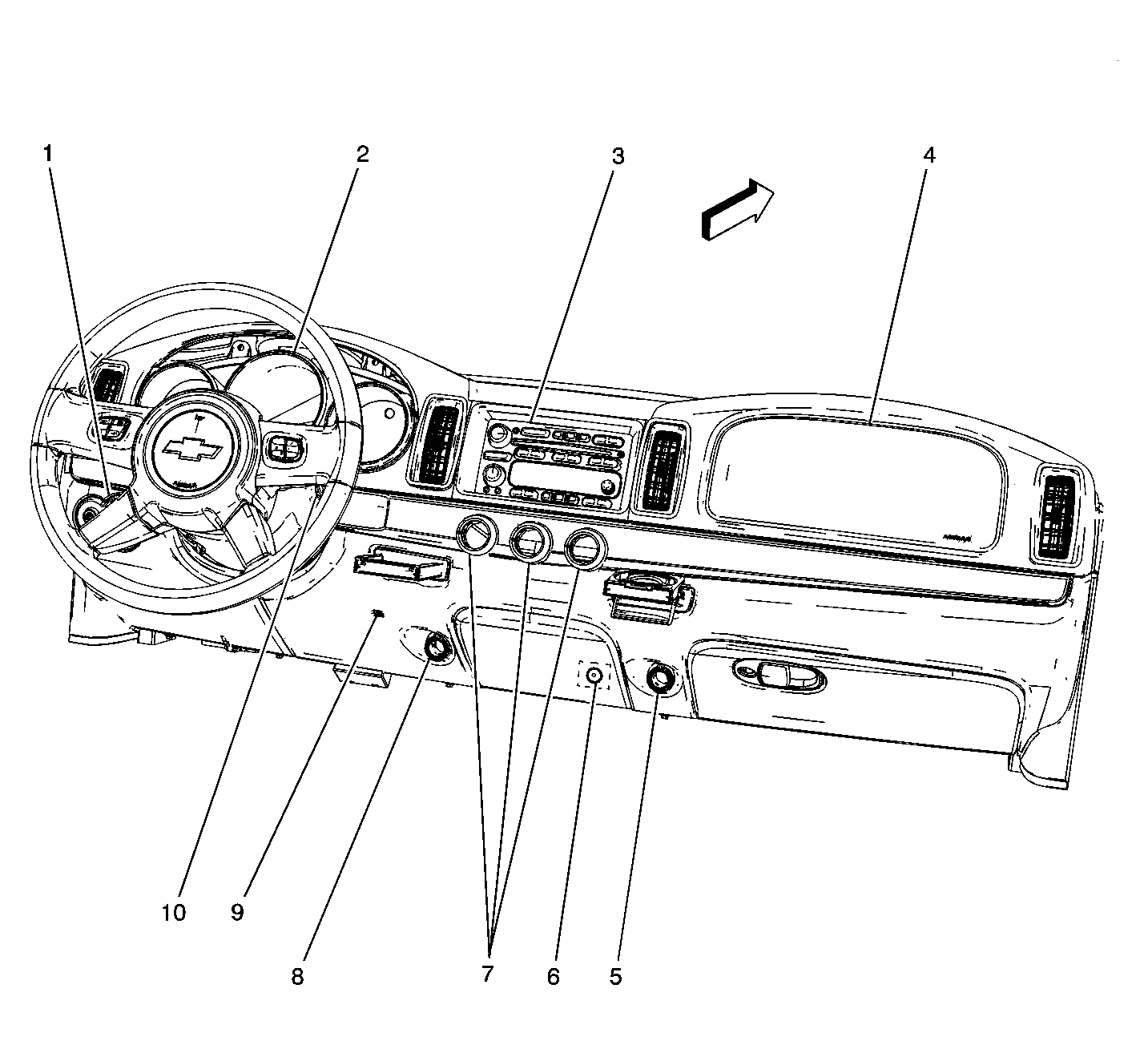

Fig 1: Instrument Panel Cluster Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Radio
4	Inflatable Restraint I/P Module
5	Auxiliary Power Outlet Front #2
6	Cigar Lighter
7	HVAC Control Module
8	Auxiliary Power Outlet Front #1
9	Noise Compensation Microphone
10	Ignition Switch
