2004 Chevrolet S10 PickupFACTORY OEM SERVICE PROCEDURE

Automatic Transmission Shift Lock Control Connectors

Automatic Transmission Shift Lock Actuator (w/ Floor Shift)

GM40422Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function
A BLK 1850 Ground
B LT GRN/BLK 584 A/T Shift Lock Control Switch Supply Voltage
C YEL 1996 Remote Shift Selector Signal
D - - Not Used
E DK GRN/
WHT		 1135 A/T Shift Lock Control Actuator Supply Voltage
F PNK 1020 OFF/RUN/CRANK Voltage
Automatic Transmission Shift Lock Actuator (w/ Column Shift)

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN/ WHT 1135 A/T Shift Lock Control Actuator Supply Voltage
B BLK 1850 Ground
Ignition Lock Cylinder Control Actuator (w/ Floor Shift)

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN/
WHT		 1135 A/T Shift Lock Control Switch Supply Voltage
B BLK 1850 Ground
Park/Neutral Position (PNP) Switch C1

GM535900Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129840
  • 7-Way F Metri-Pack 150/280 Series (GRY)
Pin Wire Color Circuit No. Function
A - - Not Used
B LT GRN 275 Park Neutral Position Switch Park Signal
C PNK 839 Ignition 1 Voltage
D BLK/WHT 451 Ground
E PPL 806 Crank Voltage
F GRY 1524 Backup Lamp Supply Voltage
G PPL/WHT 1035 Starter Relay Coil Supply Voltage
Park/Neutral Position (PNP) Switch C2

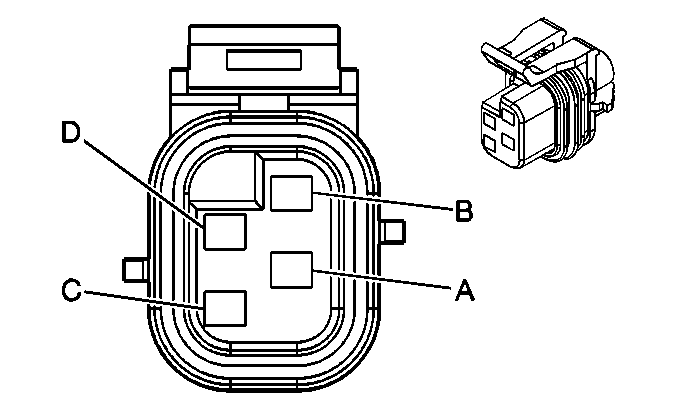

GM535904Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191757
  • 4-Way F Metri-Pack 150 Series, Sealed (NAT)
Pin Wire Color Circuit No. Function
A BLK/WHT 771 Transmission Range Switch Signal A
B GRY 773 Transmission Range Switch Signal C
C WHT 776 Transmission Range Switch Signal P
D YEL 772 Transmission Range Switch Signal B
