Install the body control module (2) to the vehicle.
Install the body control module to the bracket (1) at an angle under the wide hook retainer, with the label facing away from the bracket.

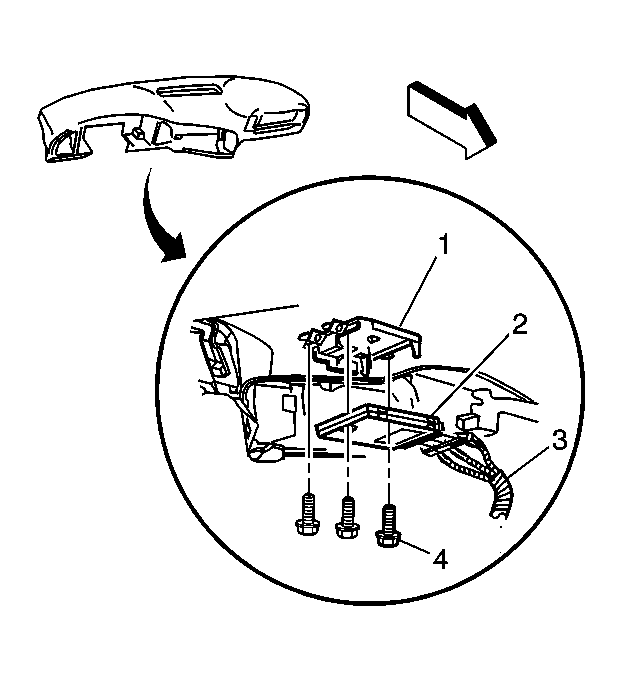

Fig 1: Identifying Body Control Module
Courtesy of GENERAL MOTORS CORP.
Apply pressure on the center of the body control module in order to move the module toward the mounting bracket base. Snap the module into place.
Ensure that the module is fully seated. Ensure that both snap retainers are holding the module.
Connect the electrical connectors (2) to the body control module (1).

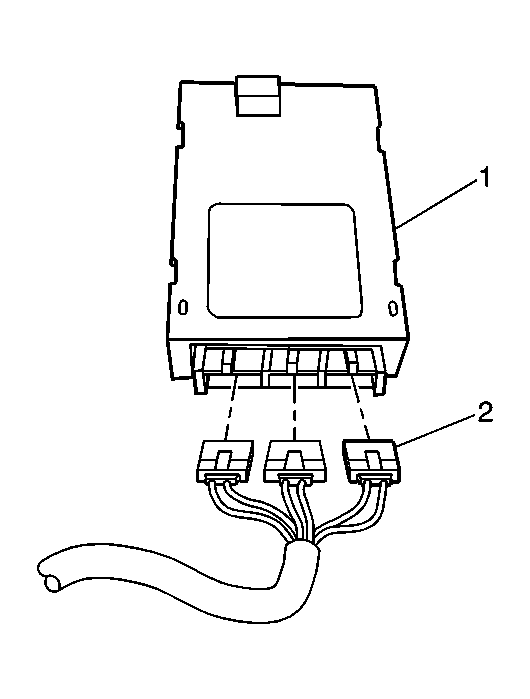

Fig 2: Identifying Body Control Module Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Install the heater control (2).

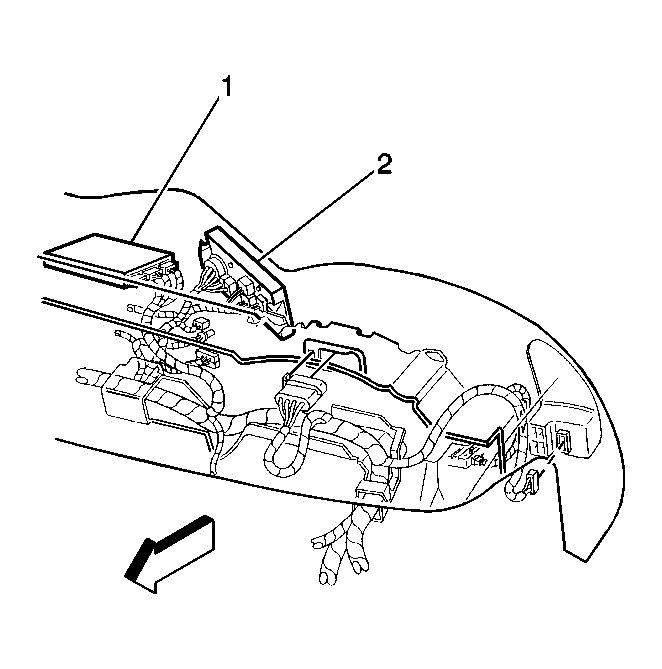

Fig 3: View Of Heater Control
Courtesy of GENERAL MOTORS CORP.
Install the radio to the vehicle. Refer to Radio Replacement in Entertainment.
Use the following components in order to program the body control module with the proper calibrations:
- The Techline Terminal
- The Scan Tool
Perform the body control module programing. Refer to Body Control Module (BCM) Programming/RPO Configuration .
Clear the diagnostic trouble codes (DTCs).
