2004 Chevrolet S10 PickupFACTORY OEM SERVICE PROCEDURE
Body Control System Component Views
WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

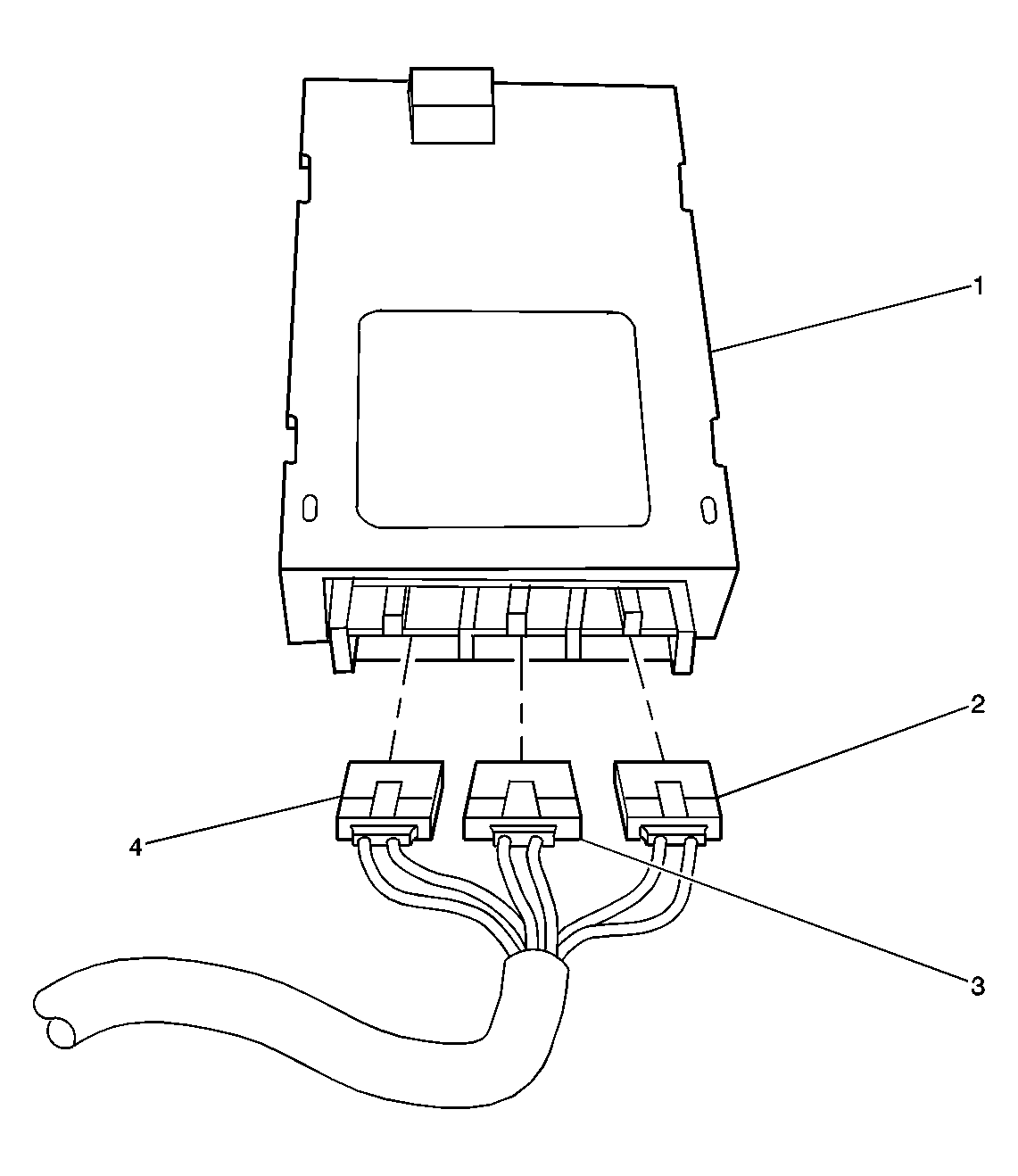

| Callout | Component Name |
|---|---|
| 1 | Body Control Module (BCM) |
| 2 | Body Control Module Connector C1 |
| 3 | Body Control Module Connector C2 |
| 4 | Body Control Module Connector C3 |

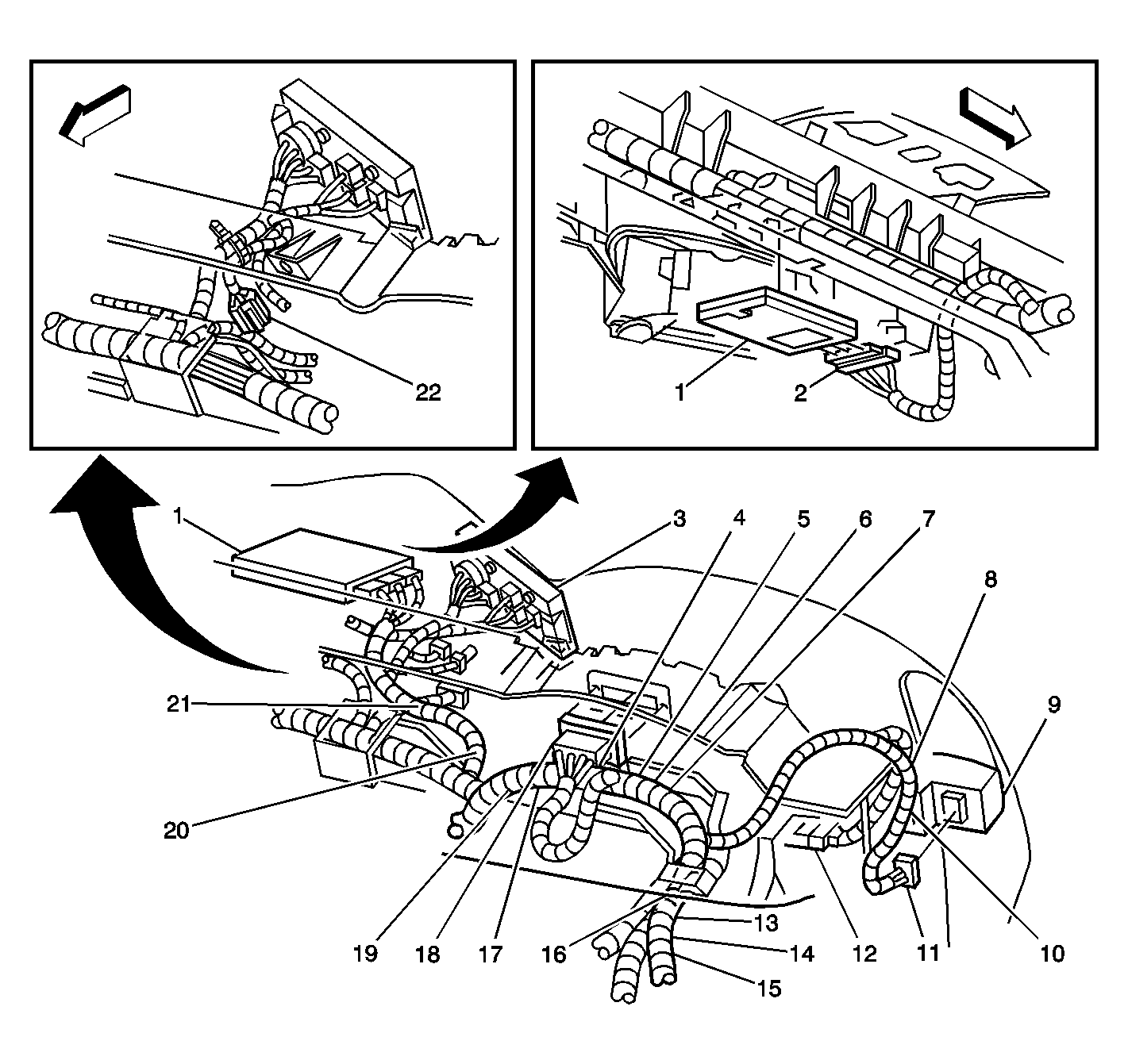

| Callout | Component Name |
|---|---|
| 1 | Body Control Module (BCM) |
| 1 | Body Control Module (BCM) |
| 2 | Body Control Module (BCM) Connectors |
| 3 | HVAC Control Module |
| 4 | S219 |
| 5 | S217 |
| 6 | S211 |
| 7 | S257 |
| 8 | S330 |
| 9 | Headlamp and Panel Dimmer Switch |
| 10 | S256 |
| 11 | Headlamp and Panel Dimmer Switch Connector |
| 12 | Remote Control Door Lock Receiver (RCDLR) Connector |
| 13 | S210 |
| 14 | S254 |
| 15 | S250 |
| 16 | S212 |
| 17 | S219 |
| 18 | Instrument Panel Cluster (IPC) Connector |
| 19 | S258 |
| 20 | S259 |
| 21 | S255 |
| 22 | Radio Connectors |
