2004 Chevrolet S10 PickupFACTORY OEM SERVICE PROCEDURE

Removal Procedure

IMPORTANT: An 8 digit part identification number is stamped on the bottom of the throttle body casting. Refer to this number if servicing or part replacement is required.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Resonator Replacement .

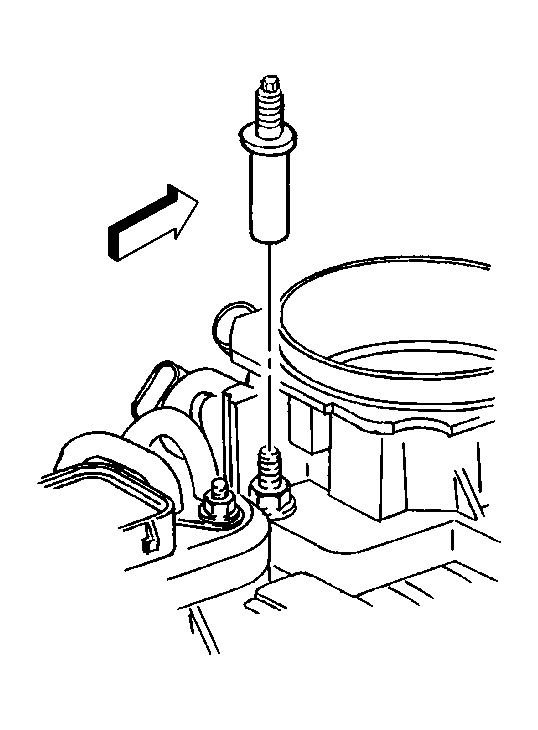

    3. Fig 1: View Of Air Cleaner Adapter Stud
    GM424550Courtesy of GENERAL MOTORS CORP.
  3. Remove the air cleaner adapter stud.
    4. Fig 2: View Of Cruise Control Cable
    GM325550Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the cruise control cable from the throttle body. Refer to Cruise Control Cable Replacement (4.3L) in Cruise Control.
    5. Fig 3: Identifying Accelerator Cable/Throttle Body Lever
    GM325556Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the accelerator cable from the throttle body. Refer to Accelerator Controls Cable Replacement .
    6. Fig 4: View Of Accelerator Cable Routing Bracket
    GM424533Courtesy of GENERAL MOTORS CORP.
  6. Remove the nuts retaining the accelerator cable routing bracket.
  7. Position the bracket aside.
  8. Remove the stud and nuts retaining the accelerator control cable bracket.
  9. Position the bracket aside.

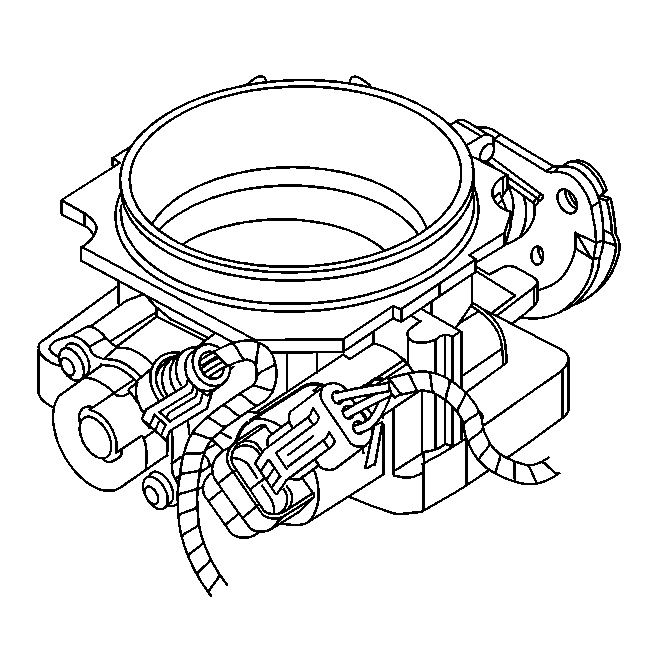

    10. Fig 5: Locating Idle Air Control Valve Harness Connector
    GM312513Courtesy of GENERAL MOTORS CORP.
  10. Disconnect the idle air control (IAC) valve harness connector.

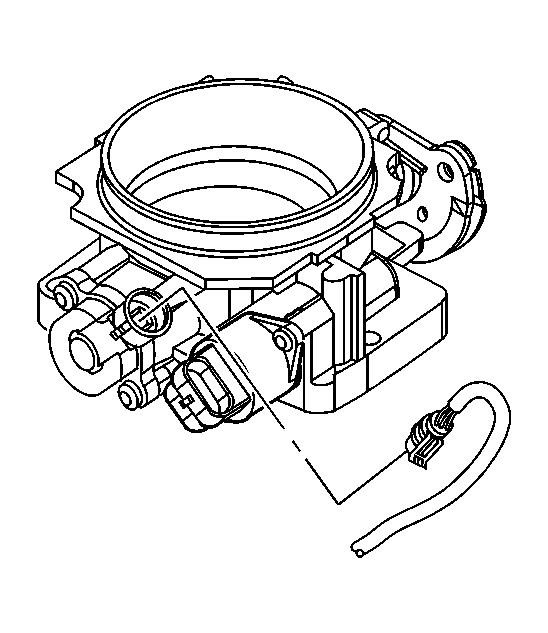

    11. Fig 6: Locating Throttle Position Sensor Harness Connector
    GM12885Courtesy of GENERAL MOTORS CORP.
  11. Disconnect the throttle position (TP) sensor harness connector.
    12. Fig 7: View Of Throttle Body & Attaching Studs
    GM12852Courtesy of GENERAL MOTORS CORP.
  12. Remove the throttle body retaining studs.
    13. Fig 8: View Of Throttle Body & Gasket
    GM12853Courtesy of GENERAL MOTORS CORP.
  13. Remove the throttle body assembly.
  14. Discard the throttle body seal.
