2004 Chevrolet S10 PickupFACTORY OEM SERVICE PROCEDURE
Fuel Tank Replacement (Pickup): Notes
CAUTION:
Refer to Battery Disconnect Caution in Cautions and Notices.
Removal Procedure
- Disconnect the negative battery cable.
- Remove the fuel filler pipe. Refer to Filler Tube Replacement (Pickup) , Filler Tube Replacement (2-Door Utility) or Filler Tube Replacement (4-Door Utility Lower) .
- Drain the fuel from the tank. Refer to Fuel Tank Draining Procedure (2-Door Utility) .
- Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

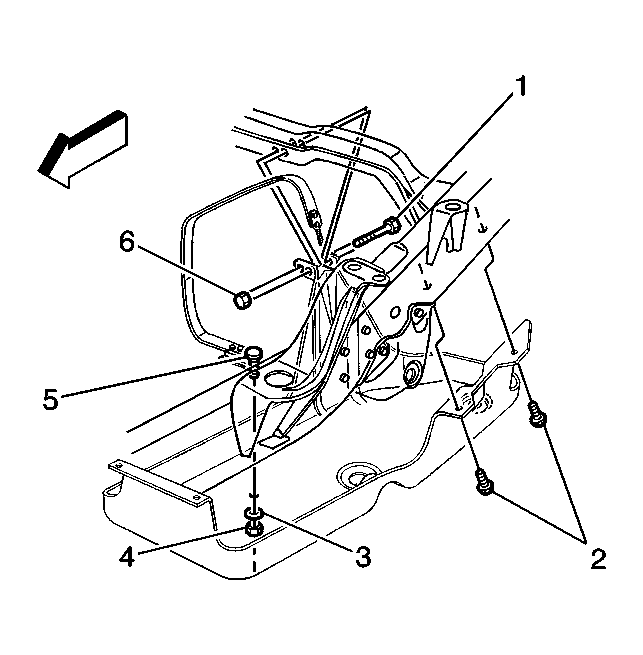

- Remove the fuel tank front shield (4) (without underbody shield package).

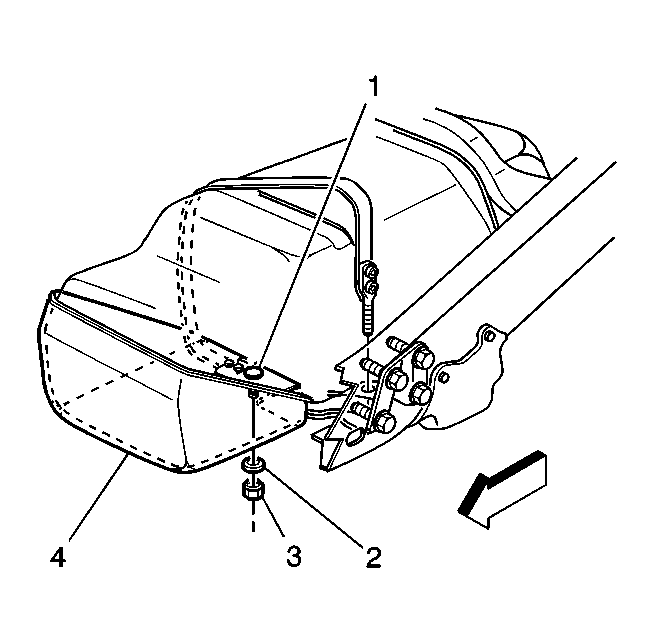

- Remove the fuel tank shield (4 wheel drive with underbody shield package).

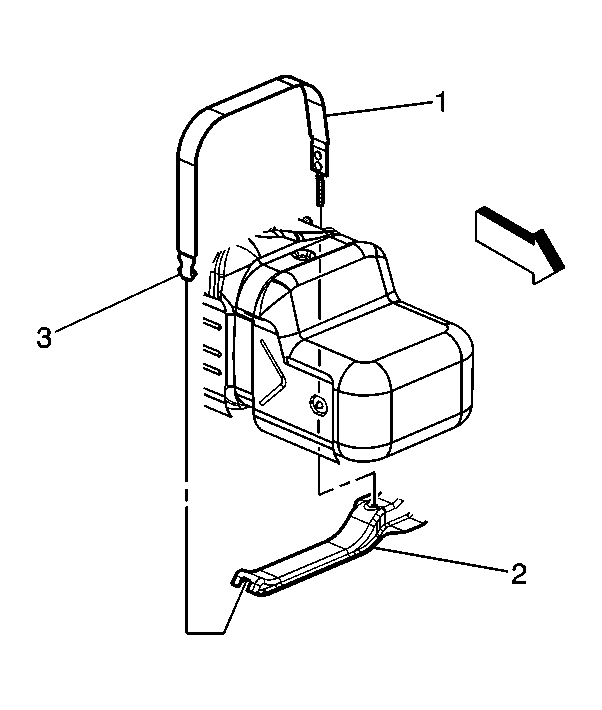

- Support the fuel tank.
