2004 Chevrolet S10 PickupFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Install the fuel sender into the fuel tank. Refer to Fuel Sender Assembly Replacement (Utility/Crew Cab) or Fuel Sender Assembly Replacement (Pick-Up) .
- Install the fuel tank insulators.

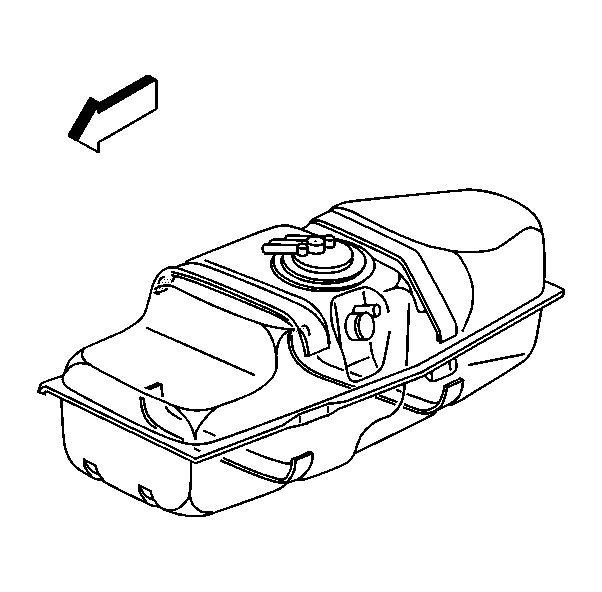

- With the aid of an assistant, position and support the fuel tank.
- Raise the fuel tank.
- Connect the fuel feed pipe, the fuel return pipe, and the EVAP pipe at the fuel sender.
- Connect the fuel pressure sensor and the fuel sender electrical connectors.
- Connect the EVAP pipe to the rollover valve.
