2004 Chevrolet S10 PickupFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Remove the caps from the fuel and evaporative emission (EVAP) pipes.

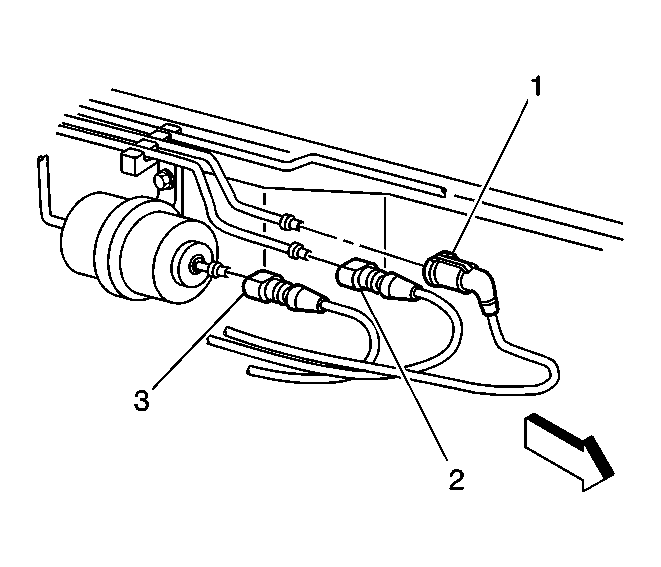

- Connect the rear fuel return pipe to the chassis fuel return pipe (2).
- Connect the rear fuel feed pipe to the fuel filter inlet.
- Install the fuel feed and return pipes into the retainers.
- Install the fuel tank. Refer to Fuel Tank Replacement (Pickup) , Fuel Tank Replacement (2-Door Utility) or Fuel Tank Replacement (4-Door Utility) .
- Lower the vehicle.
- Refill the fuel tank.
- Tighten the fuel filler cap.
- Connect the negative battery cable.
- Inspect for leaks.
- Turn ON the ignition for 2 seconds.
- Turn OFF the ignition for 10 seconds.
- Turn ON the ignition.
- Inspect for fuel leaks.
