2004 Chevrolet S10 PickupFACTORY OEM SERVICE PROCEDURE
Removal Procedure
IMPORTANT:
The CKP system variation learn procedure will need to be performed whenever the crankshaft position (CKP) sensor is removed or replaced. Refer to CKP System Variation Learn Procedure .
- Raise the vehicle.

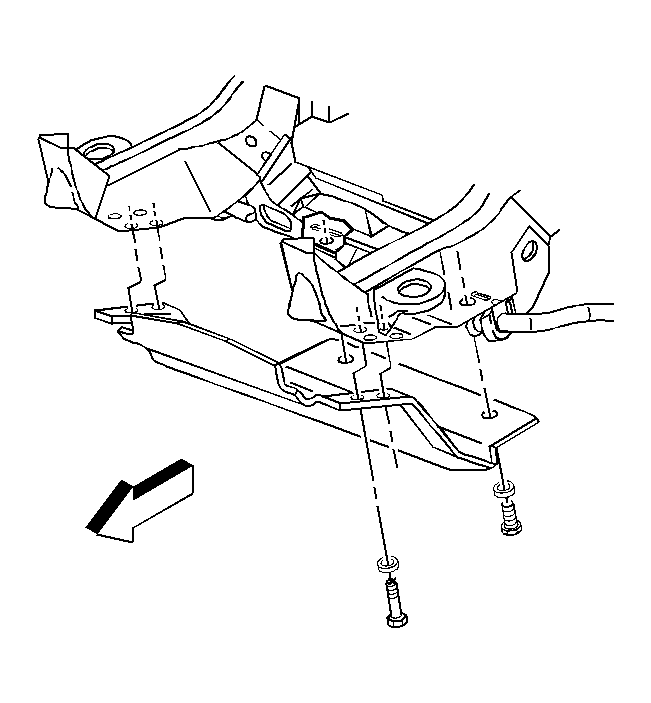

- If the vehicle is equipped with the underbody shield package, then remove the steering linkage shield mounting bolts.

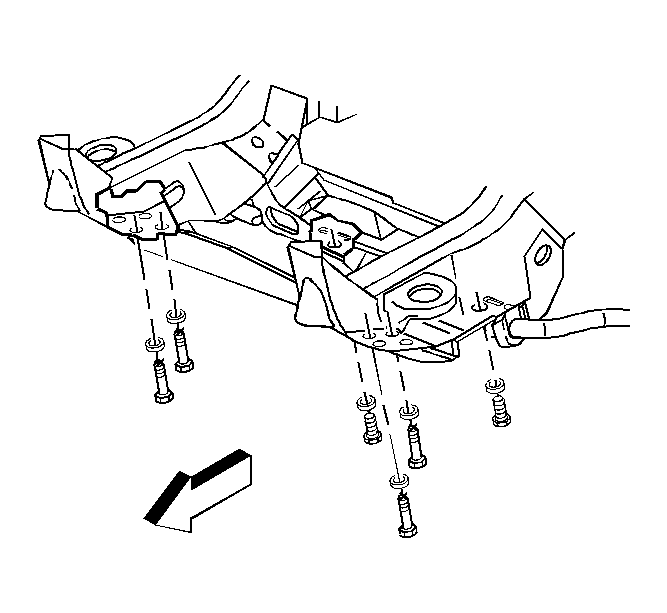

- Remove the steering linkage shield.

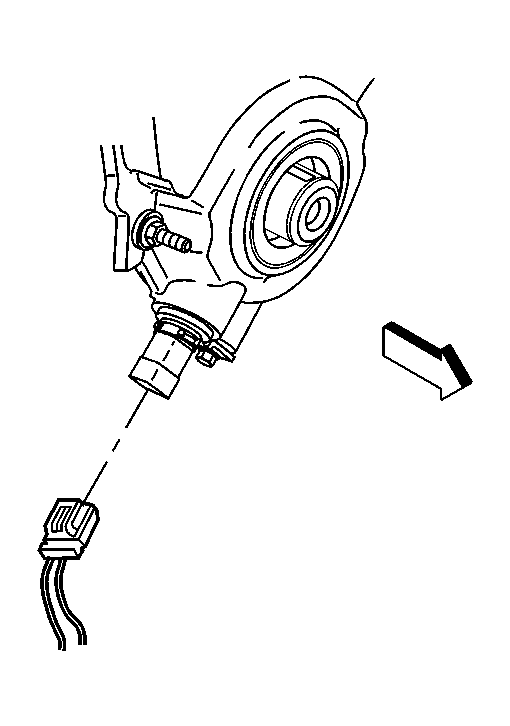

- Disconnect the CKP sensor harness connector.

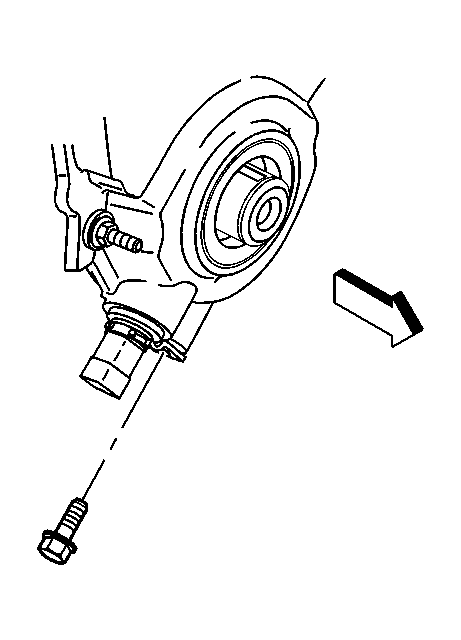

- Remove the CKP sensor mounting bolt.

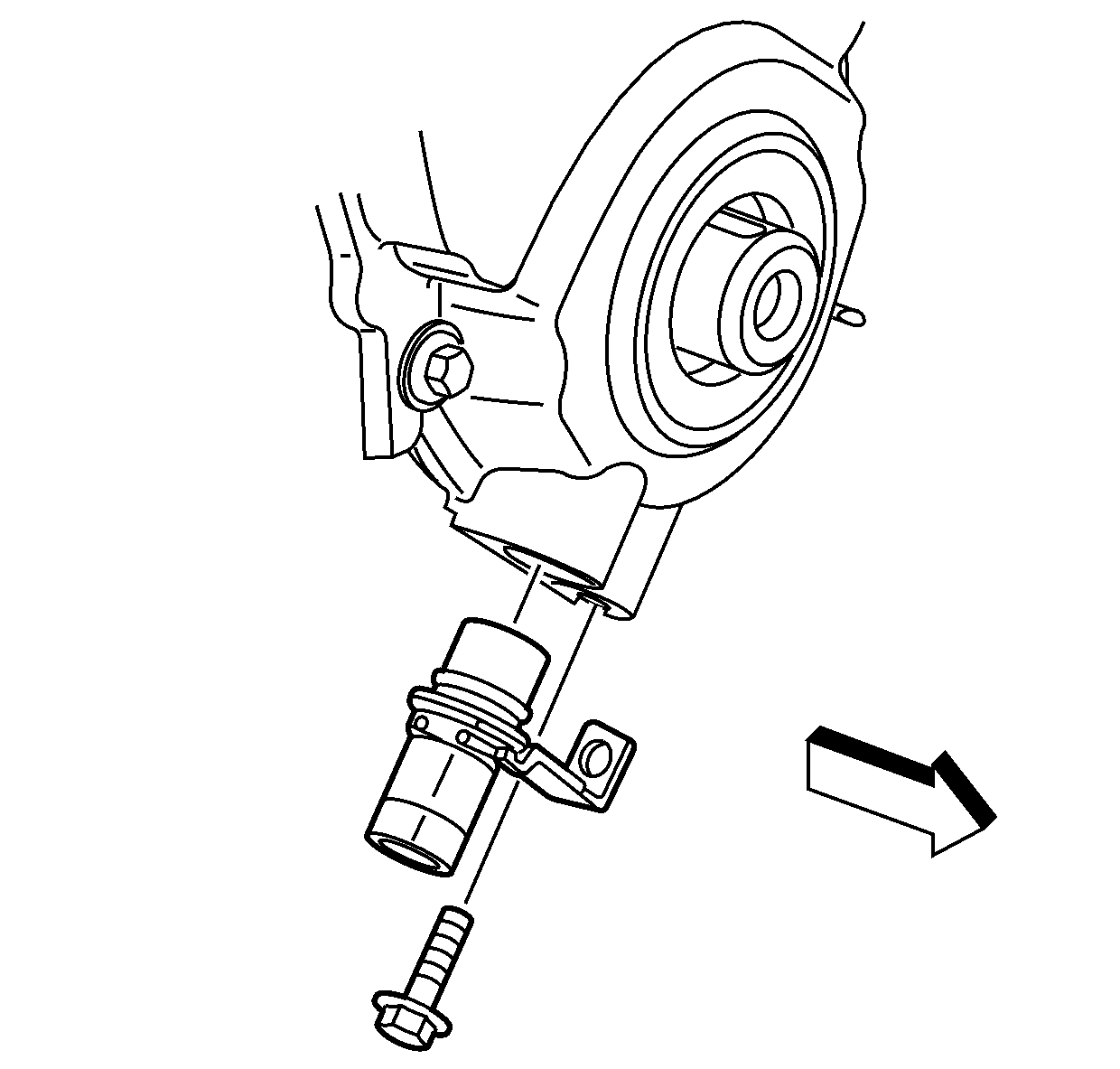

- Remove the CKP sensor.
