2004 Chevrolet S10 PickupFACTORY OEM SERVICE PROCEDURE

Removal Procedure

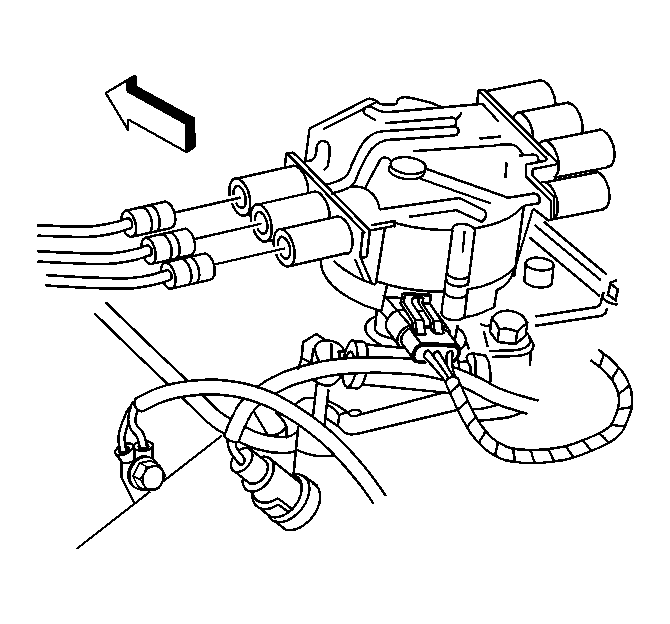

    Fig 1: Locating Spark Plug Wires & Ignition Coil Wire
    GM302854Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the spark plug wires and ignition coil wire from the distributor. Refer to Spark Plug Wire Replacement .

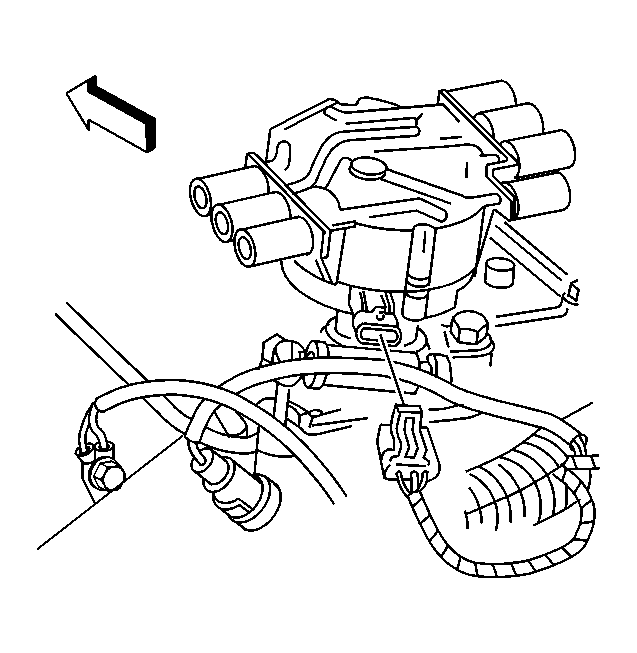

    2. Fig 2: Locating Camshaft Position Sensor Harness Connector At Distributor
    GM302829Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the camshaft position (CMP) sensor harness connector from the distributor.

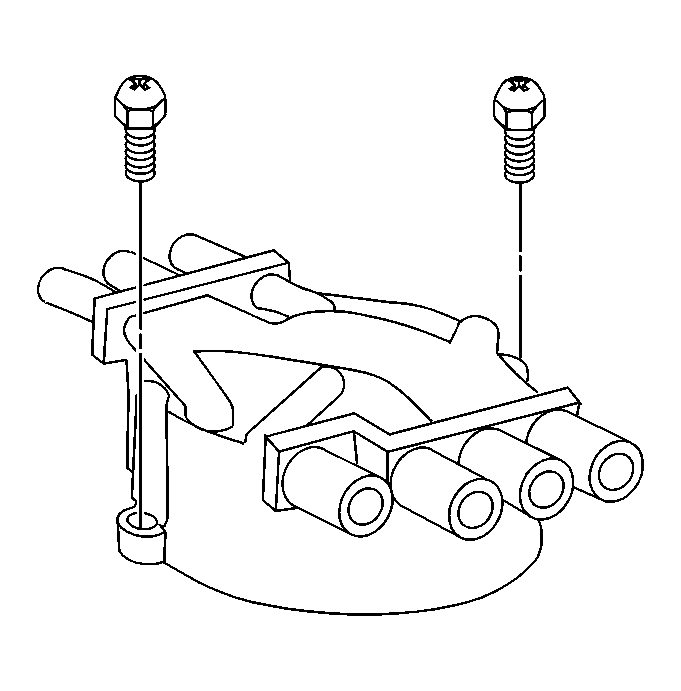

    3. Fig 3: View Of Distributor Cap Screws
    GM157984Courtesy of GENERAL MOTORS CORP.
  3. Remove the distributor cap screws.

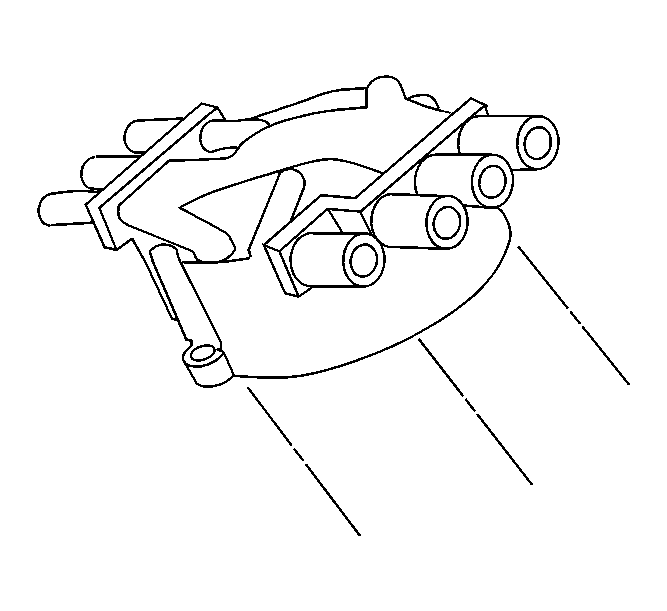

    4. Fig 4: View Of Distributor Cap
    GM157986Courtesy of GENERAL MOTORS CORP.
  4. Remove the distributor cap.

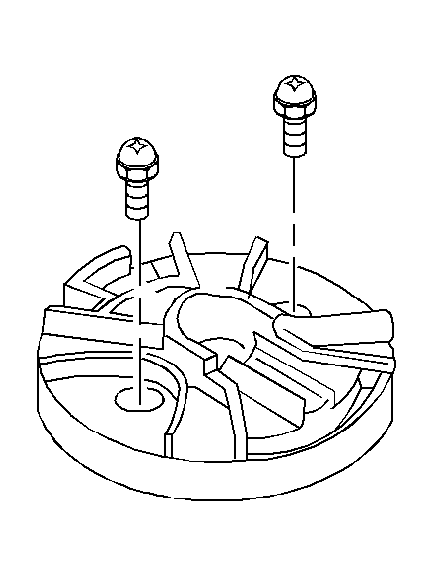

    5. Fig 5: View Of Rotor Screws
    GM4354Courtesy of GENERAL MOTORS CORP.
  5. Remove the rotor screws.

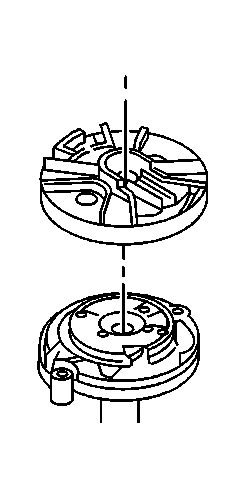

    6. Fig 6: View Of Rotor
    GM156748Courtesy of GENERAL MOTORS CORP.
  6. Remove the rotor.
    7. Fig 7: Locating Square-Cut Hole In Vane Wheel
    GM156754Courtesy of GENERAL MOTORS CORP.
  7. Align the square slot in the reluctor wheel with the CMP sensor.

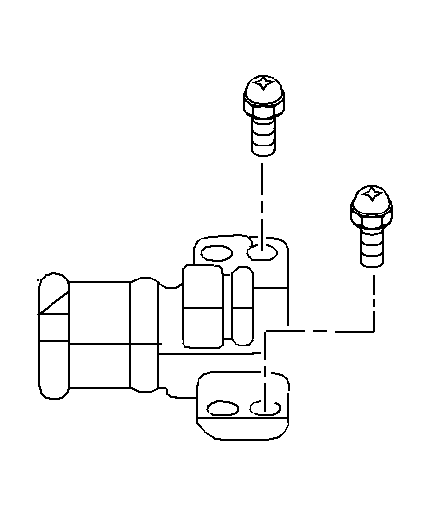

    8. Fig 8: Locating CMP Screws
    GM4341Courtesy of GENERAL MOTORS CORP.
  8. Remove the CMP screws.

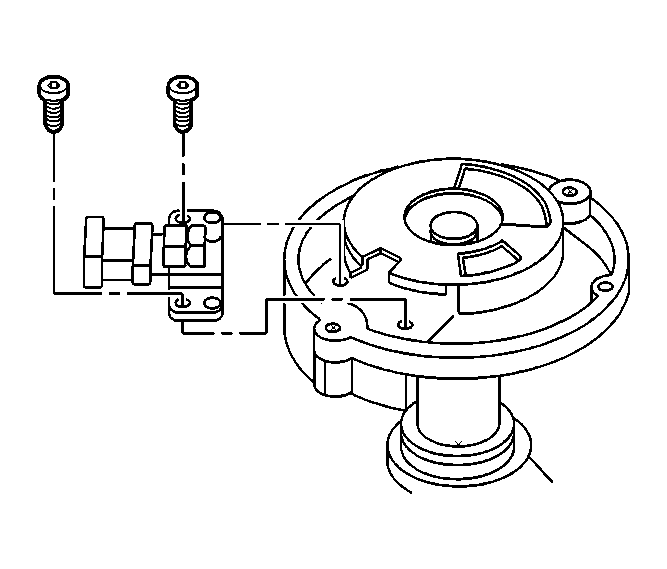

    9. Fig 9: View Of CMP Sensor & Screws
    GM301398Courtesy of GENERAL MOTORS CORP.
  9. Remove the CMP sensor.
