2004 Chevrolet S10 PickupFACTORY OEM SERVICE PROCEDURE

Removal Procedure

  1. Remove the left closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gauges, and Console.
    2. Fig 1: View Of Accelerator Cable At Accelerator Pedal
    GM424544Courtesy of GENERAL MOTORS CORP.
  2. Lift upward on the accelerator pedal in order to relieve tension on the cable.
  3. Remove the retainer from the pedal lever hole by compressing the tabs on the retainer.

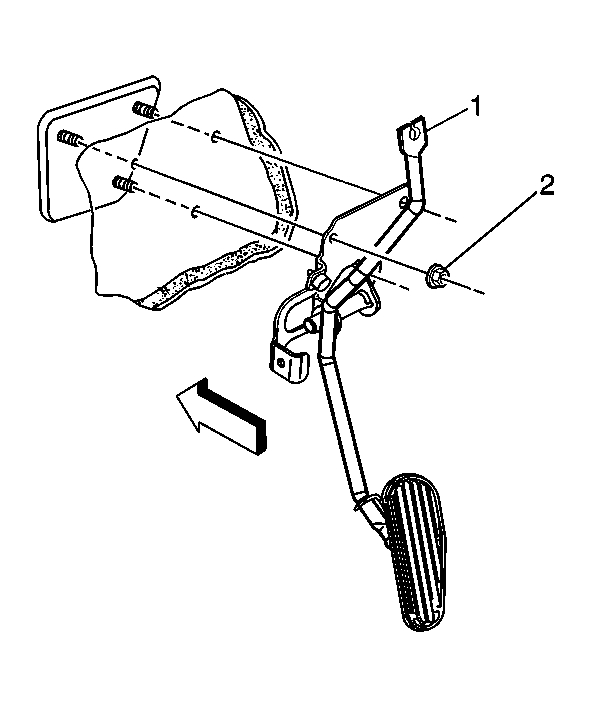

    4. Fig 2: Locating Accelerator Pedal Assembly Components
    GM350251Courtesy of GENERAL MOTORS CORP.
  4. Remove cable from the slot in the pedal lever (1).
  5. Remove the accelerator pedal mounting nuts (2).
  6. Remove the accelerator pedal assembly.
