2004 Chevrolet S10 PickupFACTORY OEM SERVICE PROCEDURE

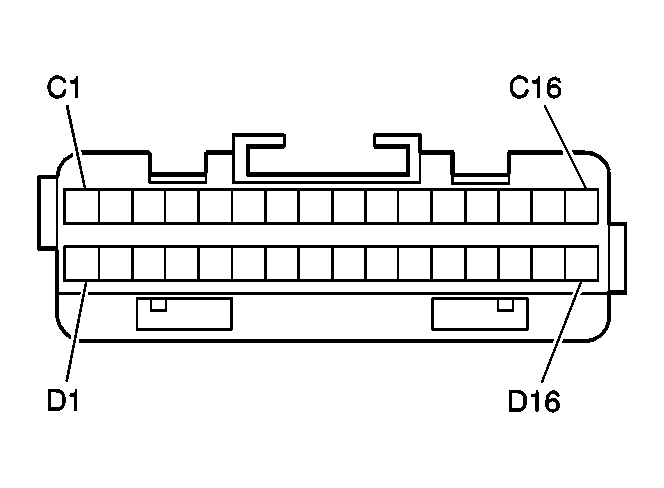

Transfer Case Shift Control Module Connector End View
Transfer Case Shift Control Module
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| C1 | GRY/BLK | 1694 | 4WD Low Signal |
| C2 | - | - | Not Used |
| C3 | DK GRN/ WHT |
1559 | 4 LO Switch Signal |
| C4 | DK GRN/ WHT |
1562 | 2 HI Switch Signal |
| C5 | GRY/BLK | 1564 | 4 HI Switch Signal |
| C6 | ORN | 40 | Battery Positive Voltage |
| C7 | - | - | Not Used |
| C8 | BRN | 241 | Ignition 3 Voltage |
| C9 | BLK/WHT | 1554 | Encoder Signal Ground |
| C10 | BLK | 1050 | Ground |
| C11 | LT GRN/BLK | 1563 | 2 HI Indicator Control |
| C12 | TAN/BLK | 1566 | 4 HI Indicator Control |
| C13 | - | - | Not Used |
| C14 | PPL/WHT | 1565 | 4 LO Indicator Control |
| C15 | - | - | Not Used |
| C16 | BLK | 1552 | Motor A Control |
| D1 | RED | 1553 | Motor B Control |
| D2 | LT GRN/BLK | 584 | A/T Shift Lock Control Switch Supply Voltage |
| D3 | ORN | 1568 | Diagnostic Enable |
| D4 | BRN/WHT | 1555 | Channel P Encoder Signal |
| D5 | RED/WHT | 1556 | Channel C Encoder Signal |
| D6 | DK BLU/ WHT |
1557 | Channel A Encoder Signal |
| D7 | YEL/BLK | 1558 | Channel B Encoder Signal |
| D8 | DK GRN/ WHT |
817 | Vehicle Speed Signal |
| D9-D11 | - | - | Not Used |
| D12 | BLK | 1050 | Ground |
| D13 | BLK | 1050 | Ground |
| D14 | ORN | 1640 | Battery Positive Voltage |
| D15 | ORN | 1640 | Battery Positive Voltage |
| D16 | PPL | 806 | Crank Voltage |
