2004 Chevrolet Optra Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Stationary Windows Component Views

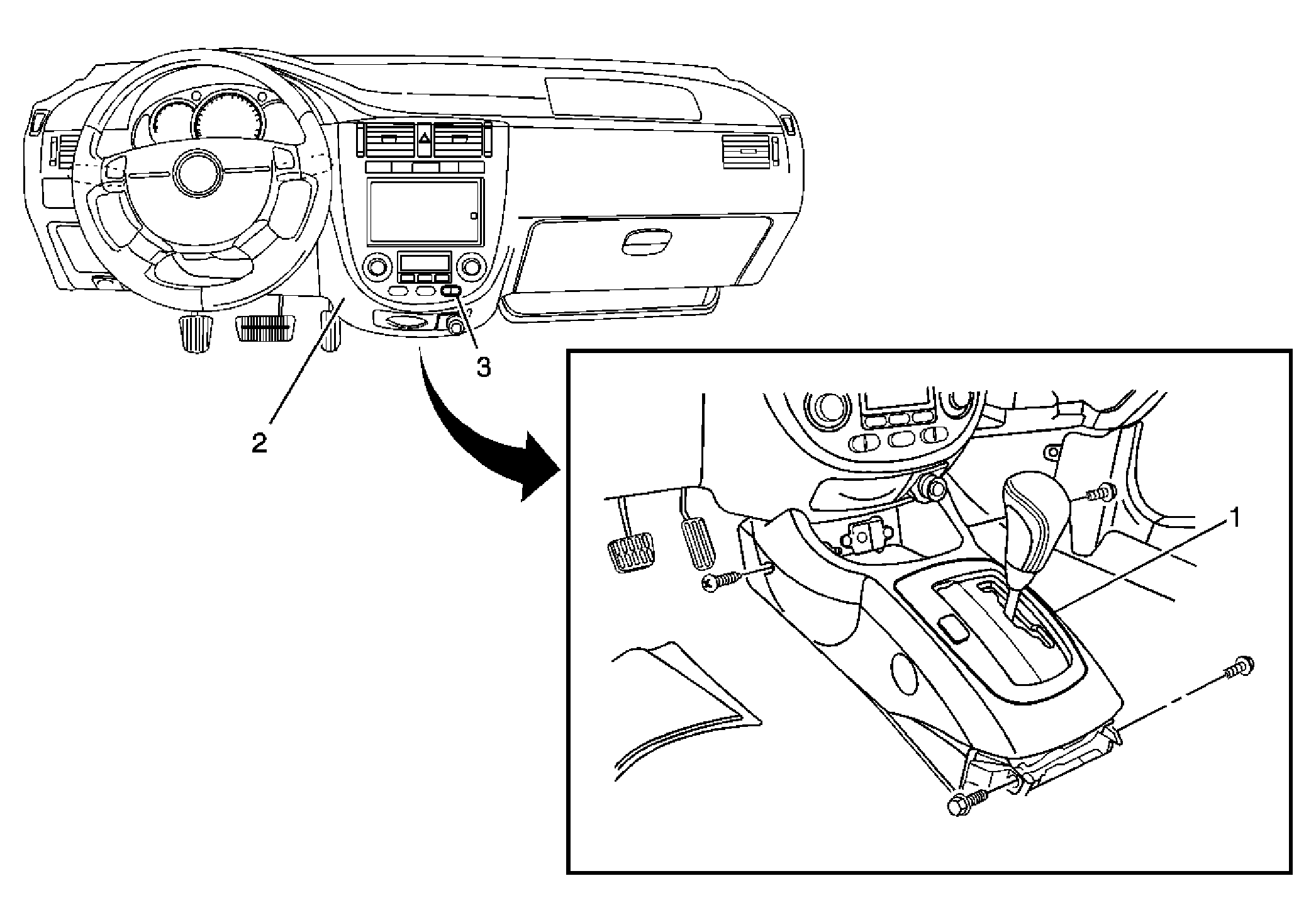

Fig 1: Identifying PRNDL Lamp, Multifunction Alarm Module And Defrost Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	PRNDL Lamp
2	Multifunction Alarm Module
3	Defrost Switch

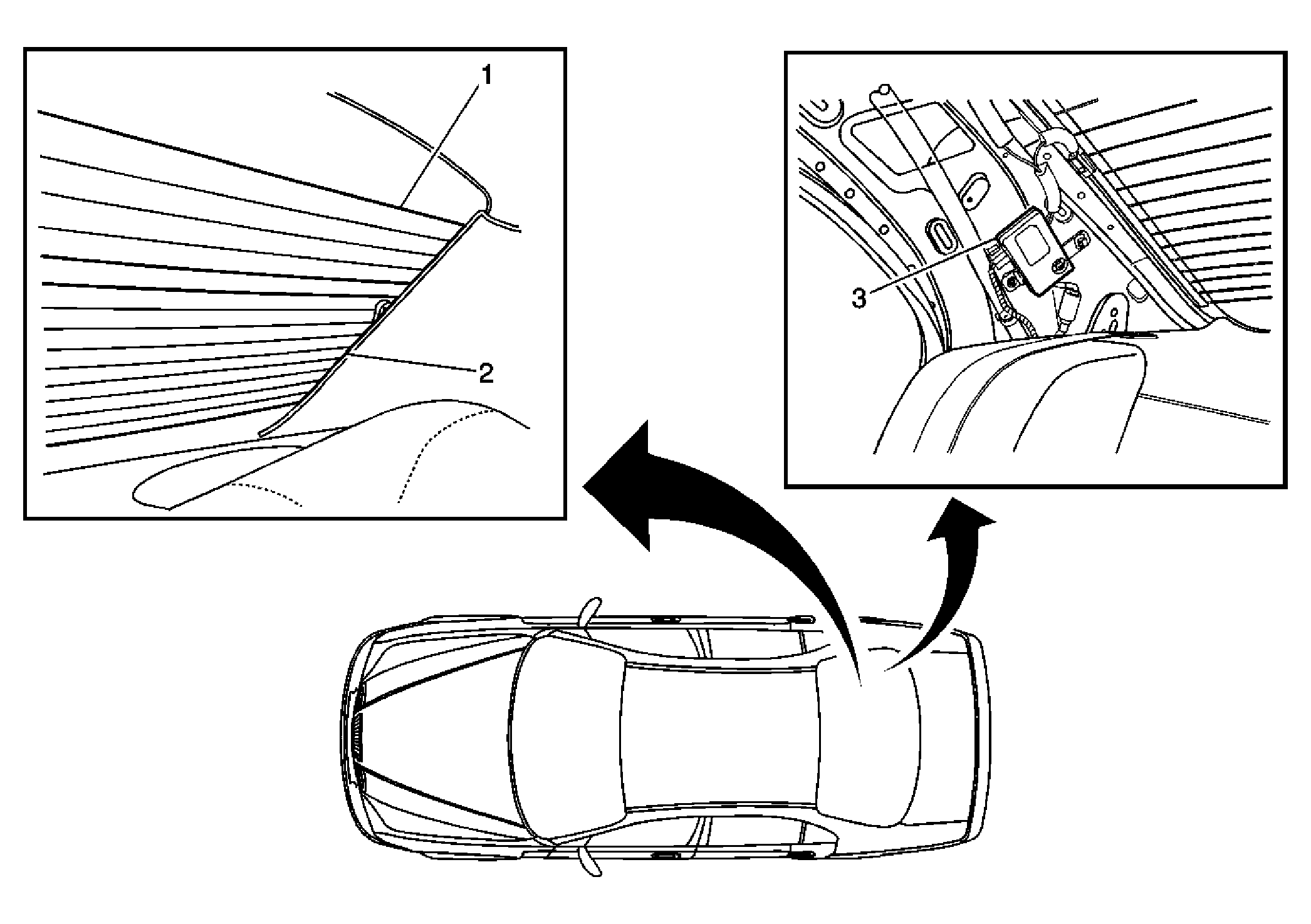

Fig 2: View Of Rear Defog Grid And Antennas

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window (Glass Antenna)
2	Rear Defroster
3	Radio Antenna Module
