2004 Chevrolet Optra Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Engine Controls Connector End Views

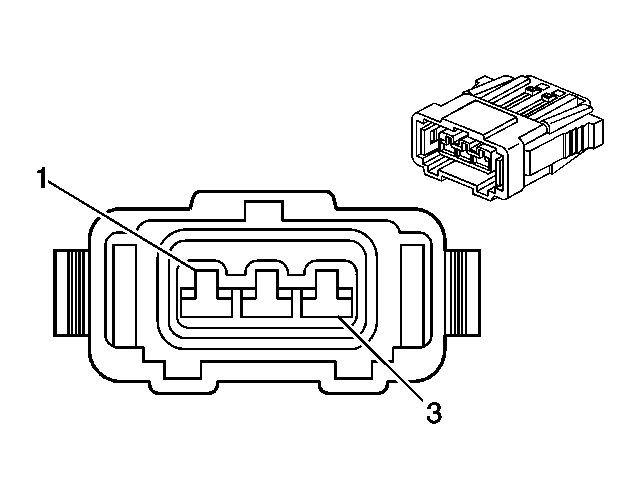

Camshaft Position (CMP) Sensor (HV-240)

GM1467078Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 640541-5
  • 3-Way F ITC (Injector Connector) Series
Pin Wire Color Circuit Number Function
1 PK/BK 1846 Ignition 1 Voltage
2 BN/WH 252 Low Reference
3 PU 633 Camshaft Position (CMP) Sensor Signal
Camshaft Position (CMP) Sensor (MR-140)

GM1467078Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 640541-5
  • 3-Way F ITC (Injector Connector) Series
Pin Wire Color Circuit Number Function
1 PK/BK 1846 Ignition 1 Voltage
2 BN/WH 251 Ground
3 PU 633 Camshaft Position (CMP) Sensor Signal
Crankshaft Position (CKP) Sensor

GM1467004Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85205-1
  • 3-Way JR Power Timer 3P Hsg Ass'y (BK)
Pin Wire Color Circuit Number Function
1 D-BU/WH 1869 Crankshaft Position (CKP) Sensor Signal
2 YE/BK 1868 Low Reference
3 BK/WH 51 Ground
Engine Coolant Temperature (ECT) Sensor

GM62426Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12040753
  • 2-Way F Metri-Pack 150 Series, Sealed, Pull To Seat (BK)
Pin Wire Color Circuit Number Function
1 L-GN 410 Engine Coolant Temperature (ECT) Sensor Signal
2 BK 808 Low Reference
Evaporative Emission (EVAP) Canister Purge Solenoid Valve

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12052643
  • 2-Way F Metri-Pack 150 Series, Sealed (RD)
Pin Wire Color Circuit Number Function
1 PK/BK 1846 Ignition 1 Voltage
2 WH 428 Evaporative Emission (EVAP) Canister Purge Solenoid Control
Exhaust Gas Recirculation (EGR) Valve (MR-140)

GM684863Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12186139
  • 5-Way F Metri-Pack 150 Series, Sealed, Pull To Seat (L-GY)
Pin Wire Color Circuit Number Function
1 D-GN 435 Exhaust Gas Recirculation (EGR) Solenoid Low Control
2 OG/BK 469 Low Reference
3 WH/BK 1456 Exhaust Gas Recirulation (EGR) Valve Position Signal
4 L-BU/BK 1688 5 Volt Reference
5 GY 120 Fuel Pump Supply Voltage
Exhaust Gas Recirculation (EGR) Valve (HV-240)

GM1466982Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174352-2
  • 2-Way M Econoseal J Mark II + Connector Plug Housing (BK)
Pin Wire Color Circuit Number Function
1 PK 139 Ignition 1 Voltage
2 D-GN 411 Exhaust Gas Recirculation (EGR) Valve Control
Fuel Injector 1

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15326181
  • 2-Way F Micro-Pack 064 Series, Sealed (BK)
Pin Wire Color Circuit Number Function
1 YE/BU 1744 Fuel Injector 1 Control
2 PK 139 Ignition 1 Voltage
Fuel Injector 2

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15326181
  • 2-Way F Micro-Pack 064 Series, Sealed (BK)
Pin Wire Color Circuit Number Function
1 BN/WH 1745 Fuel Injector 2 Control
2 PK 139 Ignition 1 Voltage
Fuel Injector 3

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15326181
  • 2-Way F Micro-Pack 064 Series, Sealed (BK)
Pin Wire Color Circuit Number Function
1 D-GN/BK 1746 Fuel Injector 3 Control
2 PK 139 Ignition 1 Voltage
Fuel Injector 4

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15326181
  • 2-Way F Micro-Pack 064 Series, Sealed (BK)
Pin Wire Color Circuit Number Function
1 D-GN/WH 844 Fuel Injector 4 Control
2 PK 139 Ignition 1 Voltage
Fuel Pump

GM1468528Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936039
  • 6-Way Fuel Pump 6POS CONN'R ASS'Y
Pin Wire Color Circuit Number Function
1 D-BU 1936 Fuel Level Sensor Signal
2 BK 1250 Ground
3 GY 120 Fuel Pump Supply Voltage
4 BK 1250 Ground
5 PU 172 Low Fuel Indicator Control
6 PU/BK 632 Low Reference
Heated Oxygen Sensor 1 (HO2S) 1 (MR-140)

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12162144
  • 4-Way F Metri-Pack 150 Series, Sealed (BK)
Pin Wire Color Circuit Number Function
1 D-GN/RD 1665 Heated Oxygen Sensor (HO2S) 1 Low Reference
2 PK/BK 1846 Ignition 1 Voltage
3 GY 1653 Heated Oxygen Sensor (HO2S) 1 Signal
4 BN/WH 1669 Heated Oxygen Sensor (HO2S) 1 Heater Control

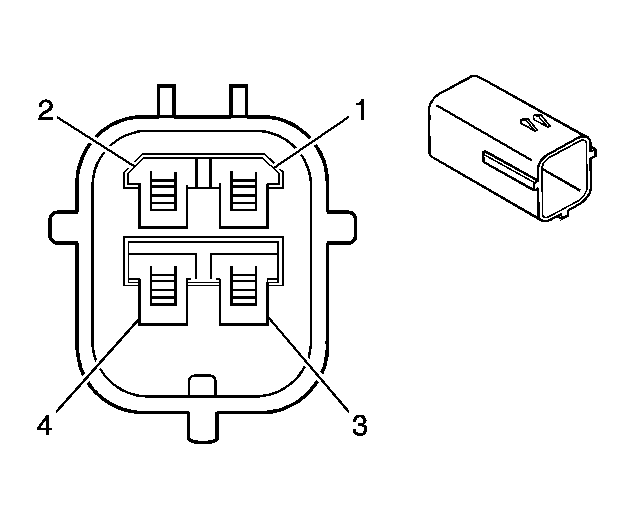

Heated Oxygen Sensor 2 (HO2S2) (MR-140)

GM1466980Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174259-2
  • 4-Way F 070 Series Econoseal-J MK-2 Cap Hsg 4P (BK)
Pin Wire Color Circuit Number Function
1 PK/BK 1846 Ignition 1 Voltage
2 PU 1670 Heated Oxygen Sensor (HO2S) 2 Signal
3 BN/BK 1671 Heated Oxygen Sensor (HO2S) 2 Heater Control
4 L-GN 413 Heated Oxygen Sensor (HO2S) 2 Low Reference
Idle Air Control (IAC) Valve

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12040754
  • 4 Way F Black Metri-Pack 150 (BK)
Pin Wire Color Circuit Number Function
A WH 444 Idle Air Control (IAC) Coil B Low Control
B PU/WH 1749 Idle Air Control (IAC) Coil B High Control
C YE/WH 1748 Idle Air Control (IAC) Coil A Low Control
D BN 1747 Idle Air Control (IAC) Coil A High Control
Ignition Coil (IC) Module

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12059595
  • 3-Way F Metri-Pack 150 Series, Sealed (BK)
Pin Wire Color Circuit Number Function
1 D-GN/WH 423 Ignition Coil (IC) Timing Control (2 and 3)
2 PK 739 Ignition 1 Voltage
3 L-BU 406 Ignition Coil (IC) Timing Control (1 and 4)
Intake Air Temperature (IAT) Sensor

GM1467003Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85202-1
  • 2-Way JR Power Timer 2P Hsg Ass'y (BK)
Pin Wire Color Circuit Number Function
1 BK 808 Low Reference
2 GY 472 Intake Air Temperature (IAT) Sensor Signal
Knock Sensor (KS)

GM1466993Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368215-1
  • 3-Way JPT 3P Ass'y for Knock Sensor
Pin Wire Color Circuit Number Function
1 YE/BK 496 Knock Sensor (KS) Signal
2 D-BU/WH 808 Low Reference
3 BK/WH 51 Ground

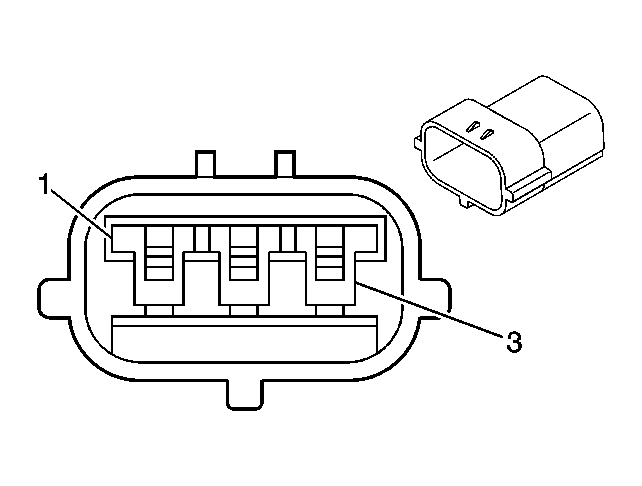

Manifold Absolute Pressure (MAP) Sensor

GM1466984Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174359-2
  • 3-Way F 070 Series Econoseal Mark-2 Cap 3P (BK)
Pin Wire Color Circuit Number Function
1 L-BU/BK 1688 5 Volt Reference
2 D-BU/WH 432 Manifold Absolute Pressure (MAP) Sensor Signal
3 OG/BK 469 Low Reference
Octane Selection Switch (HV-240)

GM1467076Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 640329
  • 3-Way M SWP Series
Pin Wire Color Circuit Number Function
1 PU 723 Octane Switch Signal
2 BK/WH 51 Ground
3 L-BU 722 Octane Switch Signal
Oxygen (O2) Sensor (HV-240)

GM309480Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12010501
  • 2-Way F Weather Pack Tower, Sealed (BK)
Pin Wire Color Circuit Number Function
1 GY 1653 Oxygen (O2) Sensor Signal
2 D-GN/RD 1665 Oxygen (O2) Sensor Low Reference
Rough Road Sensor (MR-140)

GM73223Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12162185
  • 3-Way Metri-Pack 150.2 Series, Sealed, Pull To Seat (BK)
Pin Wire Color Circuit Number Function
A GY 605 5 Volt Reference
B D-GN 602 Rough Road Sensor Signal
C PU/WH 632 Low Reference
Throttle Position (TP) Sensor

GM258299Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12065287
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit Number Function
1 BK 808 Low Reference
2 D-GN/WH 416 5 Volt Reference
3 GY 417 Throttle Position (TP) Sensor Signal
Engine Control Module (ECM) A (HV-240)

Connector Part Information
  • PED 12129231
  • 32-Way Retainer Lock (BK)
Pin Wire Color Circuit Number Function
A1 BK/WH 51 Ground
A2 BK/WH 51 Ground
A3 YE/BK 496 Knock Sensor Signal
A4 D-GN 411 Exhaust Gas Recirculation (EGR) Valve Control
A5 - - Not Used
A6 YE/BK 1868 Low Reference
A7 GY 417 Throttle Position (TP) Sensor Signal
A8 D-GN/BK 1746 Fuel Injector 3 Control
A9 YE/D-BU 1744 Fuel Injector 1 Control
A10 BK/WH 252 Low Reference
A11 L-GN 410 Engine Coolant Temperature (ECT) Sensor Signal
A12 D-GN/RD 1665 Oxygen (O2) Sensor 1 Low Reference (Unleaded Only)
A13 PU/WH 1749 Idle Air Control (IAC) Coil B High Control
A14 - - Not Used
A15 D-GN/WH 416 5-Volt Reference
A16 OG/BK 469 Low Reference
A17 BK/WH 51 Ground
A18 L-BU 406 Ignition Coil (IC) 1 and 4 Control
A19 D-GN/WH 423 Ignition Coil (IC) 2 and 3 Control
A20 WH 428 Evaporative Emissions (EVAP) Canister Purge Solenoid Control
A21 D-BU/WH 1869 Crankshaft Position (CKP) Sensor Signal
A22 BN/WH 1745 Fuel Injector 2 Control
A23 GY 472 Intake Air Temperature (IAT) Sensor 5-Volt Reference
A24 D-BU/WH 432 Manifold Absolute Pressure (MAP) Sensor Signal
A25 PU 633 Camshaft Position (CMP) Sensor Signal
A26 D-GN/WH 844 Injector 4 Signal
A27 GY 1653 Oxygen (O2) Sensor 1 Signal (Unleaded Only)
A28 BN 1747 Idle Air Control (IAC) Coil A High Control
A29 WH 444 Idle Air Control (IAC) B Low Control
A30 YE/WH 1748 Idle Air Control (IAC) A Low Control
A31 BN/BK 1688 5-Volt Reference Voltage
A32 BY/WH 808 Low Reference
Engine Control Module (ECM) B (HV-240)

GM1468388Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12129232
  • 32-Way Retainer Lock (WH)
Pin Wire Color Circuit Number Function
B1 PU/WH 632 Low Reference
B2 OG 440 Battery Positive Voltage
B3 PK/D-BU 539 Ignition 1 Voltage
B4-B6 - - Not Used
B7 L-BU 380 A/C Refrigerant Pressure (ACP) Sensor Signal
B8 L-BU 722 Octane Switch Signal
B9 GY 121 Engine Speed Signal
B10 D-GN/WH 762 A/C Request Signal
B11 - - Not Used
B12 D-BU 473 High Speed Cooling Fan Relay Control
B13 - - Not Used
B14 PU 1807 CAN Serial Data High
B15 PU 2000 Keyword Serial Data
B16 - - Not Used
B17 GY 605 5-Volt Reference
B18 OG 440 Battery Positive Voltage
B19 GY 1936 Fuel Gauge
B20-B21 - - Not Used
B22 PU 723 Octane Switch Signal
B23 D-GN/WH 817 Vehicle Speed Signal (Manual Transmission)
B24 D-GN 135 Engine Coolant (ECT) Sensor Gauge Signal
B25 - - Not Used
B26 L-GN 465 Fuel Pump Relay Control
B27 D-GN/WH 335 Low Speed Cooling Fan Relay Control
B28 D-GN 67 A/C Compressor Clutch Coil Supply Voltage
B29 - - Not Used
B30 YE 710 CAN Serial Data Low
B31 WH 30 Fuel Level Sensor Signal
B32 BN/WH 419 Malfunction Indicator Lamp (MIL) Control
Engine Control Module (ECM) K (MR-140)

GM1466972Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 0-368434-2
  • 64-Way F ECU 64P Conn Ass'y (32-bit-B)
Pin Wire Color Circuit Number Function
K1 OG 440 Battery Positive Voltage
K2-K4 - - Not Used
K5 BK/WH 51 Ground
K6 D-GN/WH 817 Vehicle Speed Signal (Manual Transmission)
K7 D-BU 876 Rough Road Signal - W/ABS
K8-K11 - - Not Used
K12 D-BU 473 High Speed Cooling Fan Relay Control
K13 - - Not Used
K14 PU 1807 CAN Serial Data High
K15 YE 710 CAN Serial Data Low
K16 BN/WH 1669 Heated Oxygen Sensor (HO2S) 1 Heater Control
K17 OG 440 Battery Positive Voltage
K18 PK/BN 539 Ignition 1 Voltage
K19-K20 - - Not Used
K21 D-GN 602 Rough Road Sensor Signal
K22 L-BU 380 A/C Refrigerant Pressure (ACP) Sensor Signal
K23 - - Not Used
K24 D-GN 135 Engine Coolant Temperature (ECT) Sensor Gauge Signal
K25 GY 121 Engine Speed Signal
K26-K27 - - Not Used
K28 D-GN/WH 335 Low Speed Cooling Fan Relay Control
K29 D-GN 67 A/C Compressor Clutch Coil Supply Voltage
K30 WH 30 Fuel Level Sensor Signal
K31 - - Not Used
K32 PU 2000 Keyword Serial Data
K33 - - Not Used
K34 PU/BK 632 Low Reference
K35 D-GN/WH 762 A/C Request Signal
K36 PU 1670 Heated Oxygen Sensor (HO2S) 2 Signal
K37-K49 - - Not Used
K50 GY 605 5-Volt Reference
K51 GY 1936 Fuel Level Sensor Signal
K52 YE/D-GN 890 Fuel Tank Pressure Sensor Signal
K53 L-GN 413 Heated Oxygen Sensor (HO2S) 2 Low Reference
K54 L-GN 465 Fuel Pump Relay Control
K55-K63 - - Not Used
K64 BN/WH 419 Malfunction Indicator Lamp (MIL) Control
Engine Control Module (ECM) M (MR-140)

GM1481262Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 1-368434-1
  • 64-Way F ECU 64P Conn Ass'y (32-bit-B)
Pin Wire Color Circuit Number Function
M1 L-BU 406 Ignition Coil (IC) Timing Control 1 and 4
M2 BN/BK 1671 Heated Oxygen Sensor (HO2S) 2 Heater Control
M3 GY 120 Fuel Pump Supply Voltage
M4 WH 428 Evaporative Emissions (EVAP) Canister Purge Solenoid Control
M5 YE/BK 1868 Low Reference
M6 GY 417 Throttle Position (TP) Sensor Signal
M7 GY 472 Intake Air Temperature (IAT) Sensor Signal
M8 D-BU/WH 432 Manifold Absolute Pressure (MAP) Sensor Signal
M9 WH/BK 1456 Exhaust Gas Recirculation (EGR) Valve Position Signal
M10 - - Not Used
M11 D-GN/WH 844 Fuel Injector 4 Control
M12 GY 1653 Heated Oxygen Sensor (HO2S) 1 Signal
M13 BN 1747 Idle Air Control (IAC) A High Control
M14 WH 444 Idle Air Control (IAC) B Low Control
M15 YE/WH 1748 Idle Air Control (IAC) A Low Control
M16 L-BU/BK 1688 5-volt Reference
M17 - - Not Used
M18 YE/BK 496 Knock Sensor Signal
M19 D-GN 435 Exhaust Gas Recirculation (EGR) Solenoid Low Control
M20 - - Not Used
M21 D-BU/WH 1869 Crankshaft Position (CKP) Sensor Signal
M22 BN/WH 1745 Fuel Injector 2 Control
M23 - - Not Used
M24 D-GN/BK 1746 Fuel Injector 3 Control
M25 YE/D-BU 1744 Fuel Injector 1 Control
M26 PU 633 Camshaft Position (CMP) Sensor Signal
M27 - - Not Used
M28 L-GN 410 Engine Coolant Temperature (ECT) Sensor Signal
M29 D-GN/RD 1665 Heated Oxygen Sensor (HO2S) 1 Low Reference
M30 PU/WH 1749 Idle Air Control (IAC) Coil B High Control
M31 - - Not Used
M32 D-GN/WH 416 5-volt Reference
M33 L-BU 406 Ignition Coil (IC) Timing Control (1 and 4)
M34 - - Not Used
M35 D-GN/WH 423 Ignition Coil (IC) Timing Control (2 and 3)
M36 - - Not Used
M37 BK/WH 51 Ground
M38 BK/WH 51 Ground
M39 BK/WH 51 Ground
M40 BK/WH 51 Ground
M41 BK/WH 51 Ground
M42-M47 - - Not Used
M48 OG/BK 469 Low Reference
M49-M50 - - Not Used
M51 D-GN/WH 423 Ignition Coil (IC) Timing Control (2 and 3)
M52 D-GN 435 Exhaust Gas Recirulation (EGR) Low Control
M53-M63 - - Not Used
M64 BK 808 Low Reference
Factory Service Tools

Use the Manual With the Right Hardware

Pair factory procedures with proven DIY tools so the instructions are easier to execute.

Disclosure: Verified tool recommendations may earn an affiliate commission at no cost to you.

Shop Manual-Ready ToolsCompare Repair QuoteQuote Shield Pro

When to See a Mechanic

Stop DIY work and contact a certified mechanic immediately if any of the following apply:

  • • You smell fuel, burning insulation, or see smoke.
  • • Brakes feel soft, pull hard to one side, or make grinding noises.
  • • The engine overheats, stalls repeatedly, or misfires under load.
  • • You are missing required tools, torque specs, or safe lifting equipment.
  • • You are not confident in the next step or safety outcome.

Rather have a pro handle this?

A certified mobile mechanic comes to your home or office. They bring the tools, you stay comfortable. No tow truck, no waiting room, no surprises.

Comes to youSame-day available12-month warranty
Get a Free Quote

No obligation. See pricing before you book.
