2004 Chevrolet Optra (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Exploded Views
Automatic Transmission Electronic Component Views

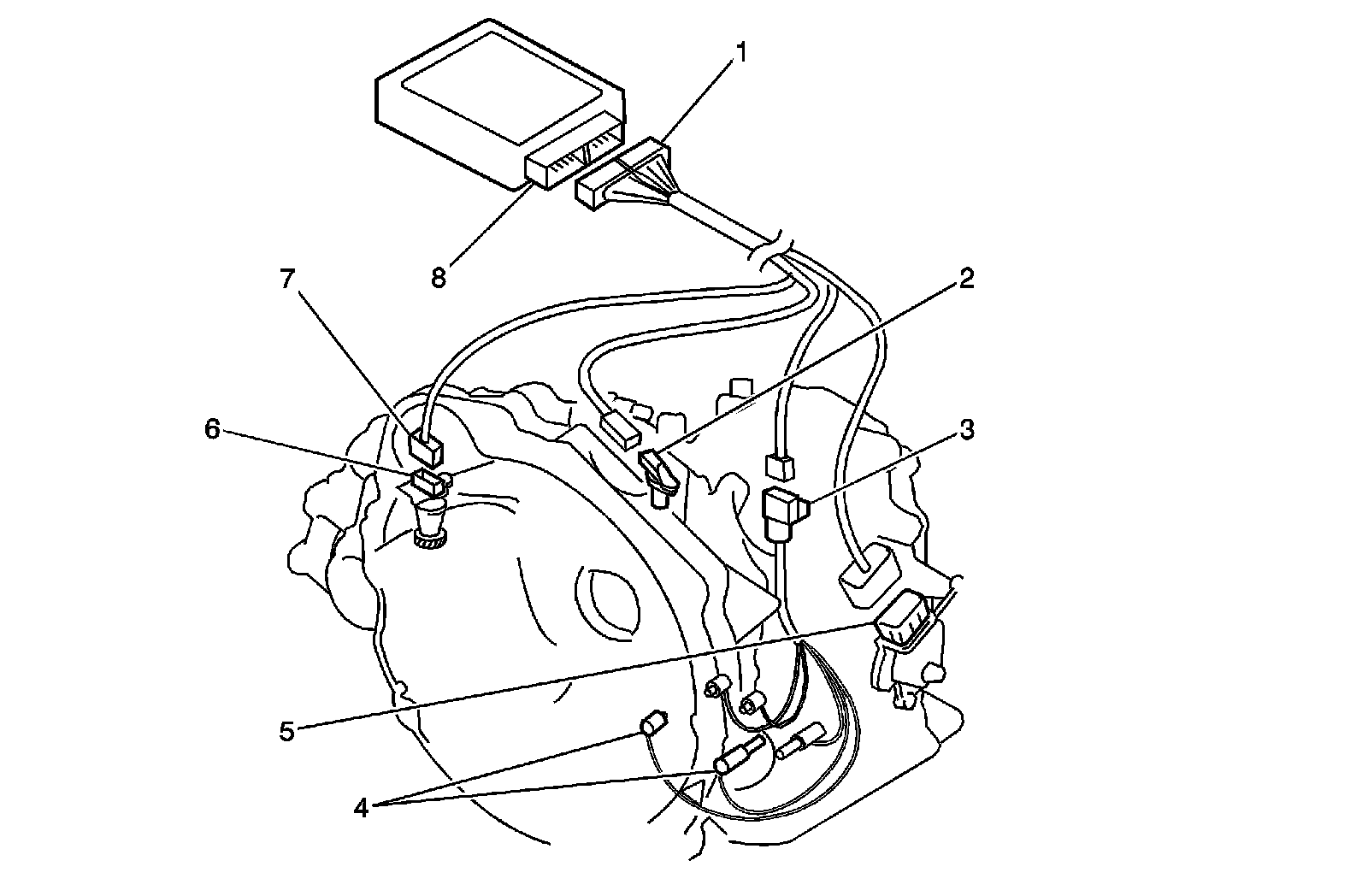

Electronic Component Views
1 - Transmission Control Module (TCM) Harness Connector
2 - Input Speed Sensor (ISS) Connector
3 - Transaxle Harness
4 - Solenoid Connectors
5 - Park/Neutral Position (PNP) Switch
6 - Output Shaft Speed (OSS) Sensor (Vehicle Speed Sensor (VSS))
7 - Output Shaft Speed (OSS) Connector
8 - TCM

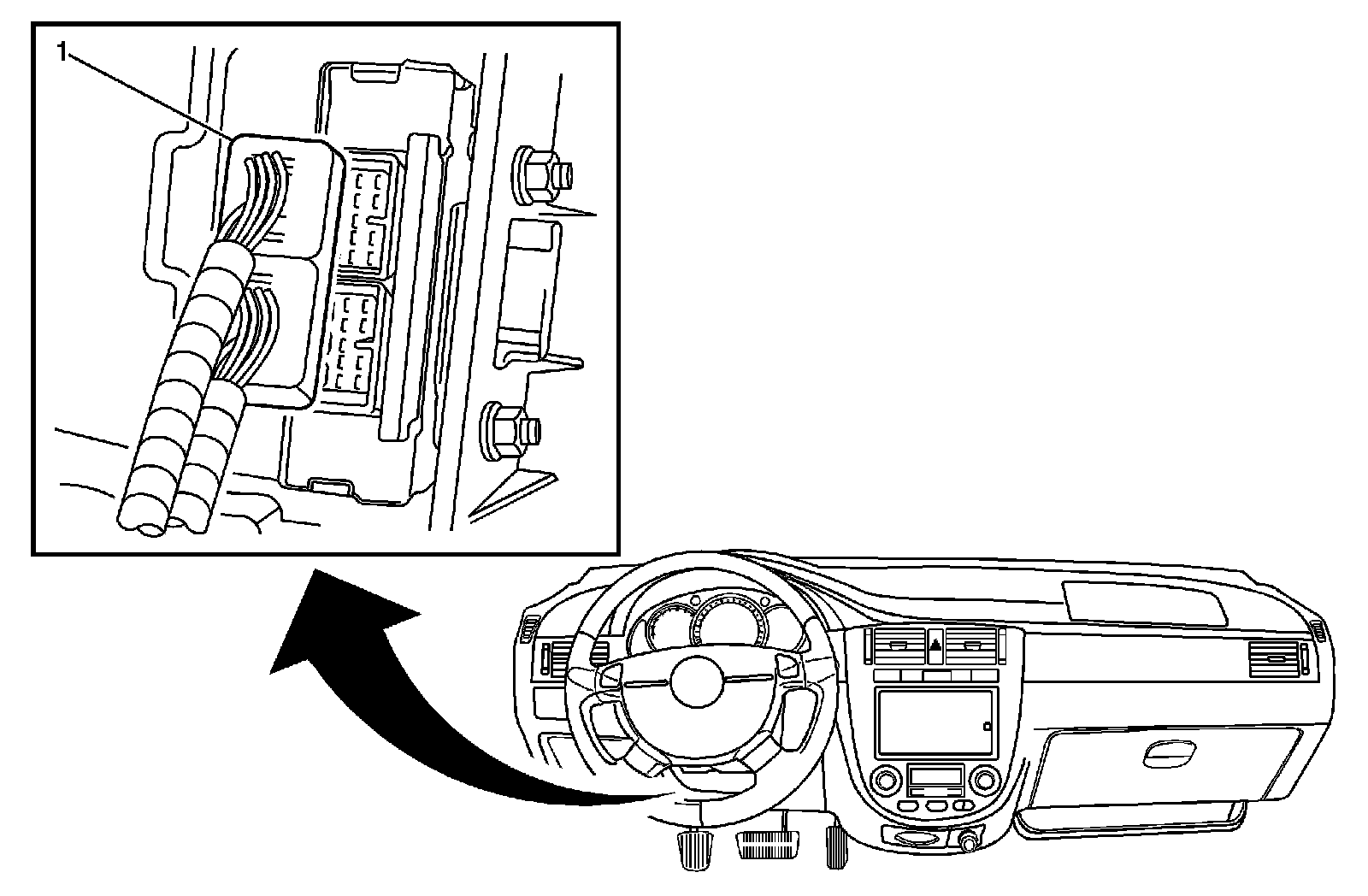

Transmission Control Module (TCM)
1 - Transmission Control Module (TCM) Aisin

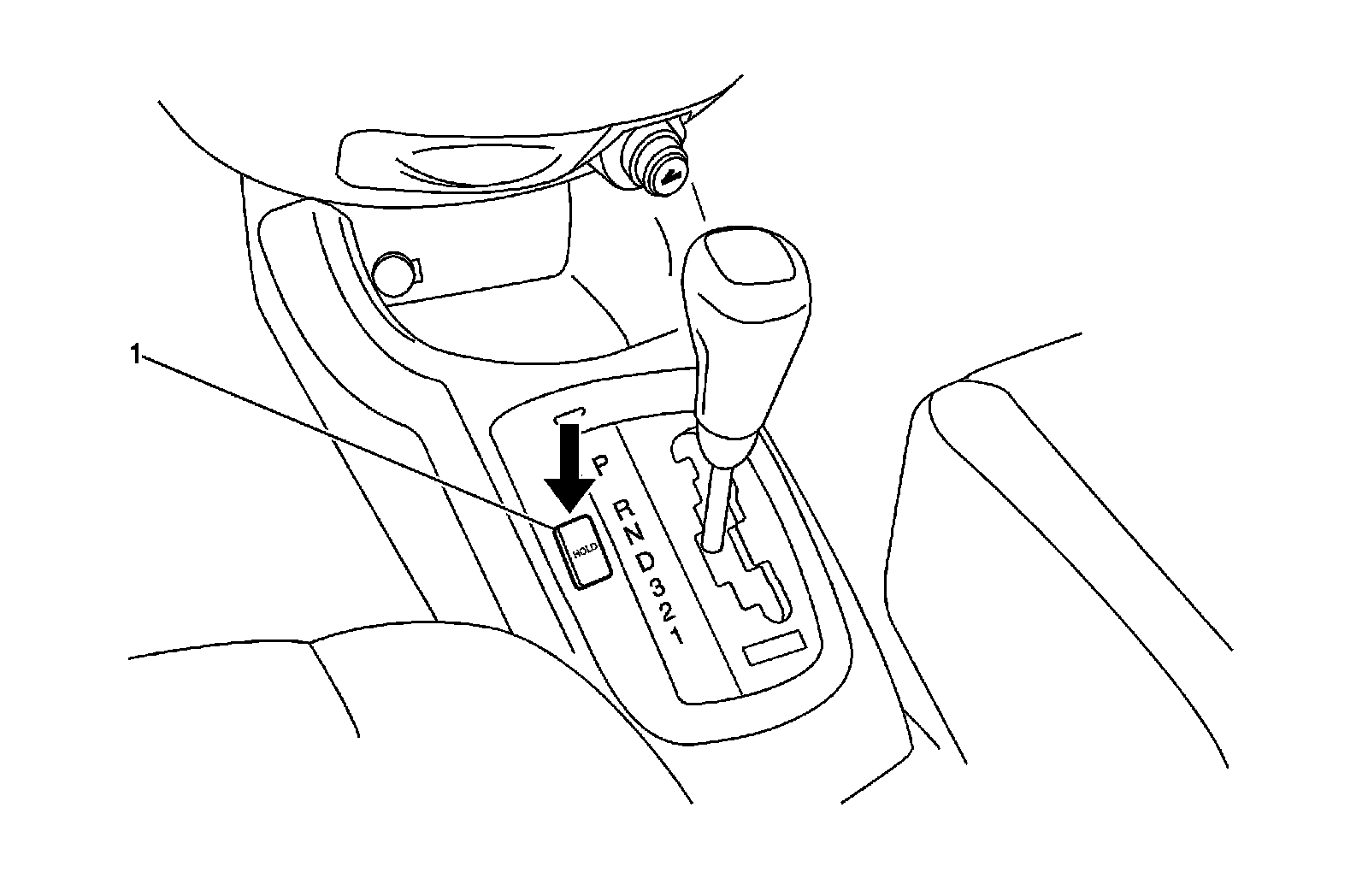

Hold Mode Switch (MLQ, MFA)
1 - Shift Program Switch (Hold Mode)
