2004 Chevrolet Optra (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Fuel Tank Pressure Sensor: Service and Repair
Fuel Tank Pressure Sensor Replacement
Removal Procedure
1. Remove the fuel fill cap.
Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.
2. Disconnect the negative battery cable.
3. Remove the rear seat. Refer to Rear Seat Cushion Replacement Service and Repair.

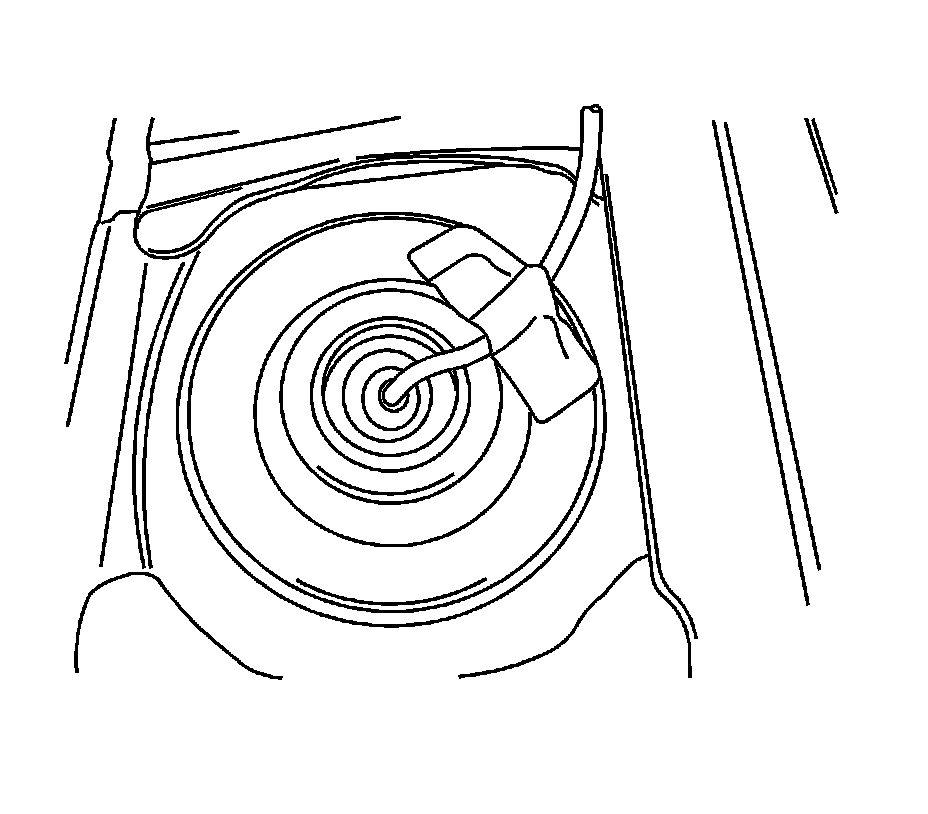

4. Remove the fuel sender assembly access cover.

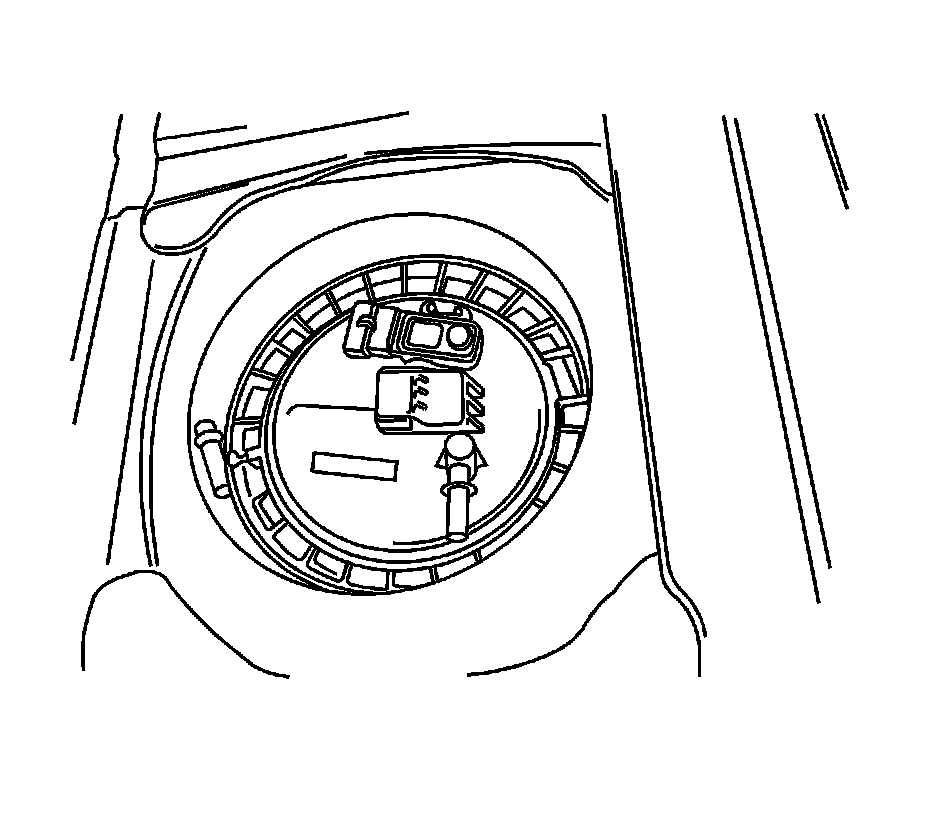

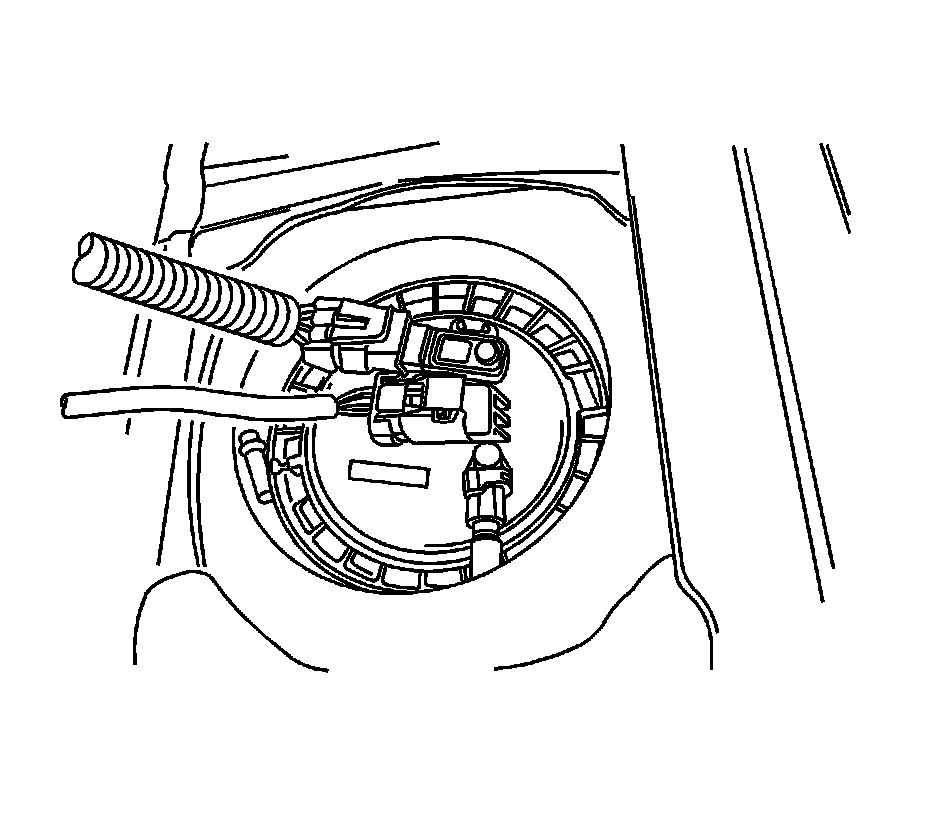

5. Disconnect the fuel tank pressure (FTP) sensor electrical connector.
6. Remove the FTP from the fuel sender assembly.
Installation Procedure
1. Install the FTP sensor to the fuel sender assembly.
2. Connect the FTP sensor electrical connector.
3. Install the fuel pump access cover.
4. Install the rear seat. Refer to Rear Seat Cushion Replacement Service and Repair.
5. Connect the negative battery cable.
6. Install the fuel fill cap.
