2004 Chevrolet Optra (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Rear Toe Adjustment
Rear Toe Adjustment
1. Perform a preliminary inspection before any attempt is made to change or correct the wheel alignment factors. Refer to Preliminary Alignment Inspection Preliminary Alignment Inspection.

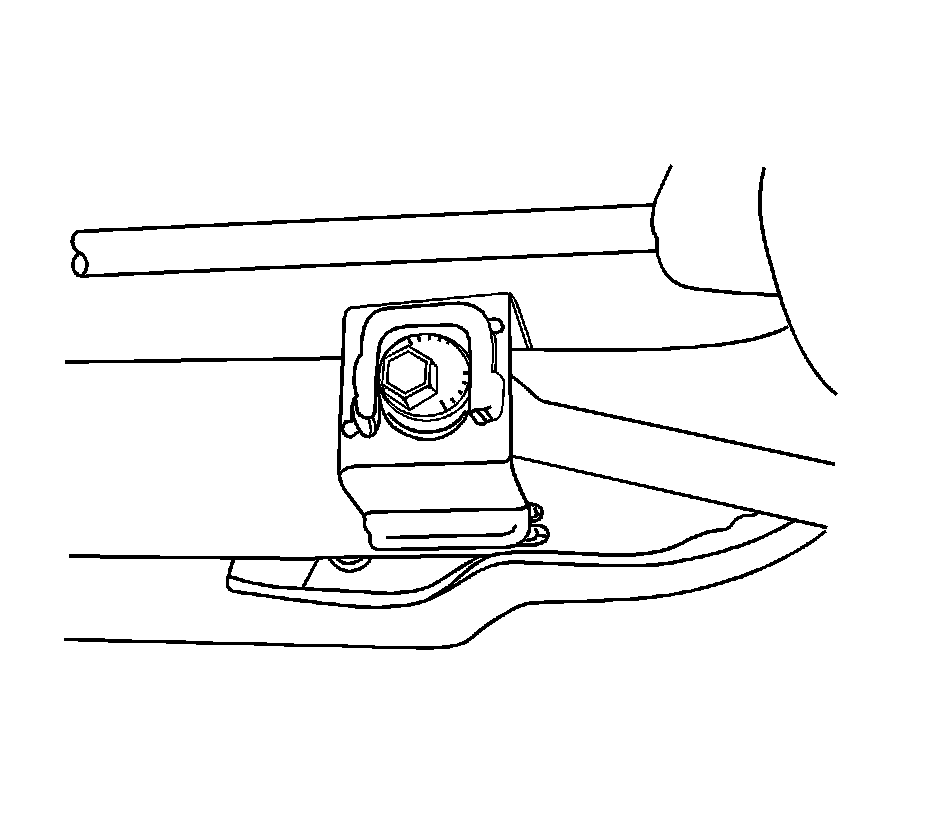

2. Loosen the front parallel link cam bolt to crossmember.
Notice: Refer to Fastener Notice Fastener Notice.

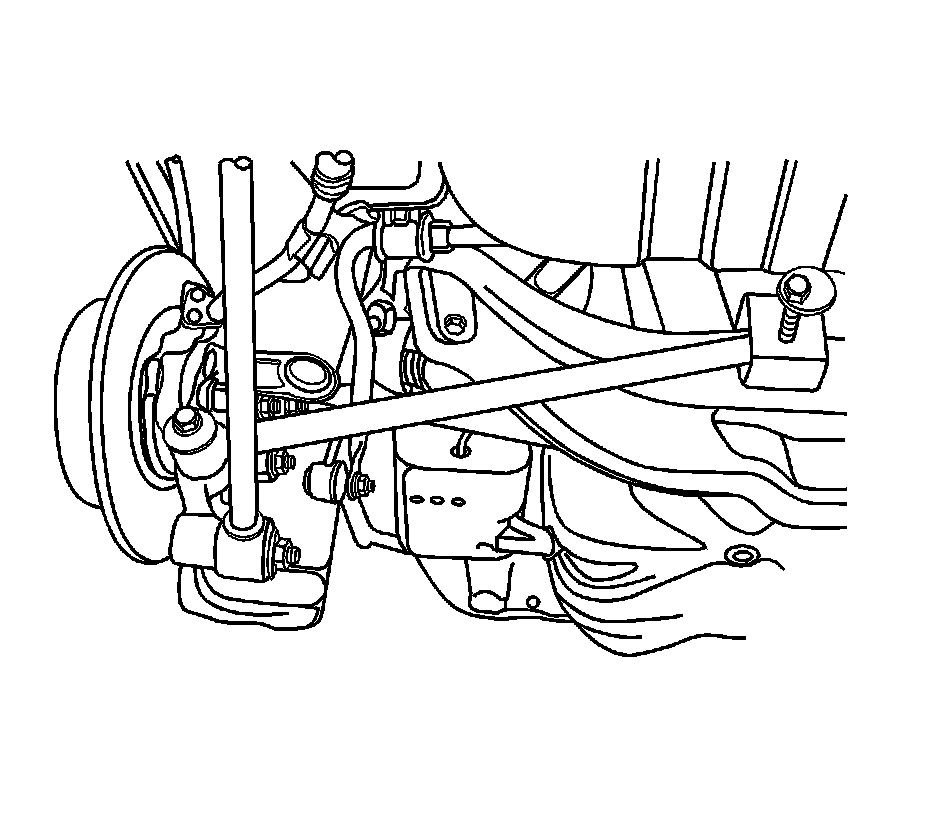

3. Rotate the parallel link adjustment bolts until the preferred rear toe specification is obtained. Refer to Wheel Alignment Specifications Wheel Alignment Specifications.
Tighten the bolt to 40 Nm (30 lb ft).

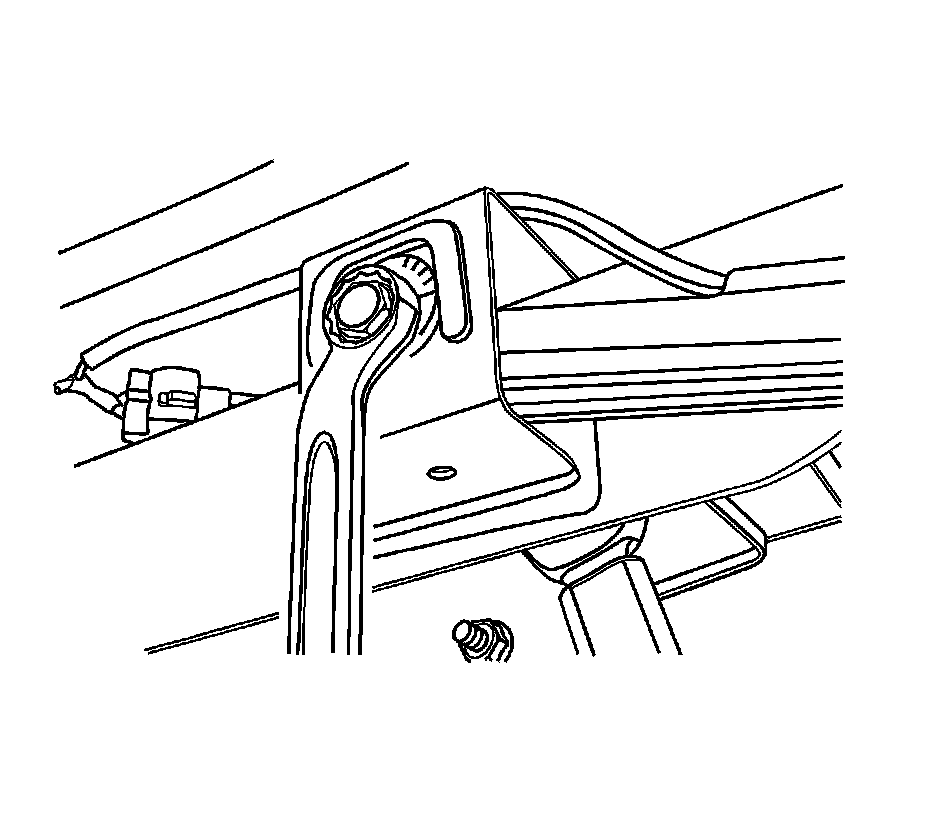

4. Hold the parallel link adjustment bolts and tighten the parallel link-to-crossmember nuts.
Tighten the parallel link-to-crossmember nuts to 90 Nm (66 lb ft).
