2004 Chevrolet Optra (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Keyless Entry Receiver: Service and Repair

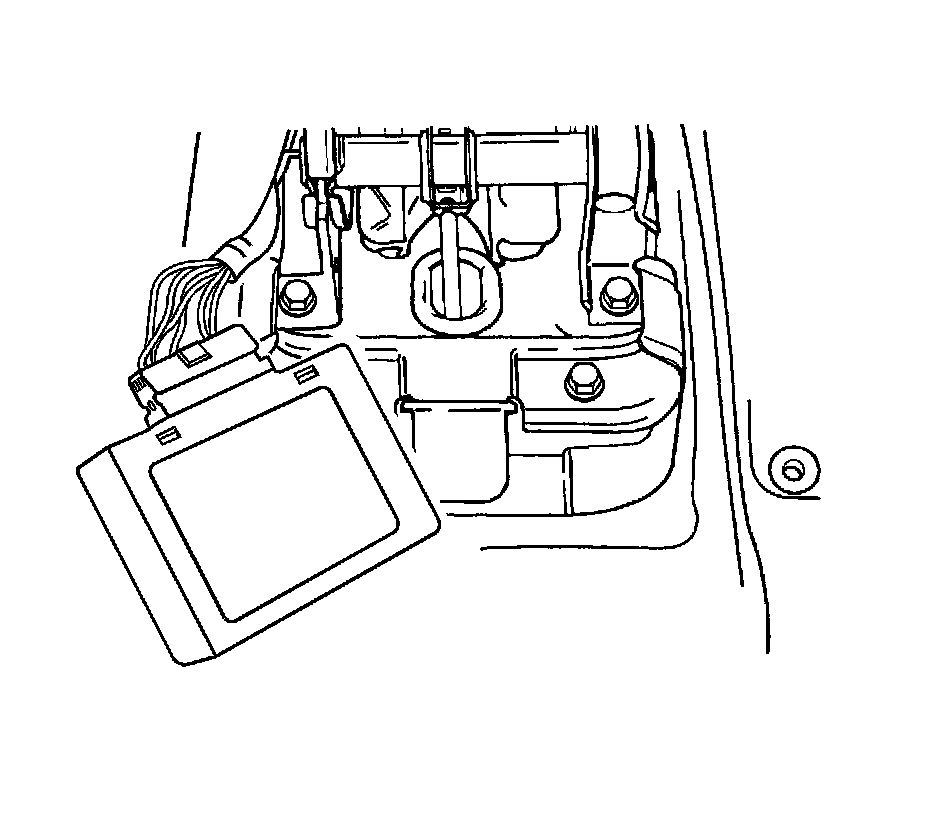

Remote Control Door Lock Receiver Replacement
Removal Procedure
Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.
1. Disconnect the negative battery cable.
2. Remove the floor console. Refer to Front Floor Console Replacement Service and Repair in Instrument Panel, Gages and Console.
3. Disconnect the control module/receiver electrical connector.
4. Slide the control module/receiver away from the mounting bracket.
Installation Procedure
1. Install the control module/receiver on its mounting bracket.
2. Connect the control module/receiver electrical connector.
3. Install the floor console. Refer to Front Floor Console Replacement Service and Repair in Instrument Panel, Gages and Console.
4. Connect the negative battery cable.
