2004 Chevrolet Malibu MaxxFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Disconnect the camshaft position (CMP) sensor electrical connector.
Remove the CMP sensor bolt.

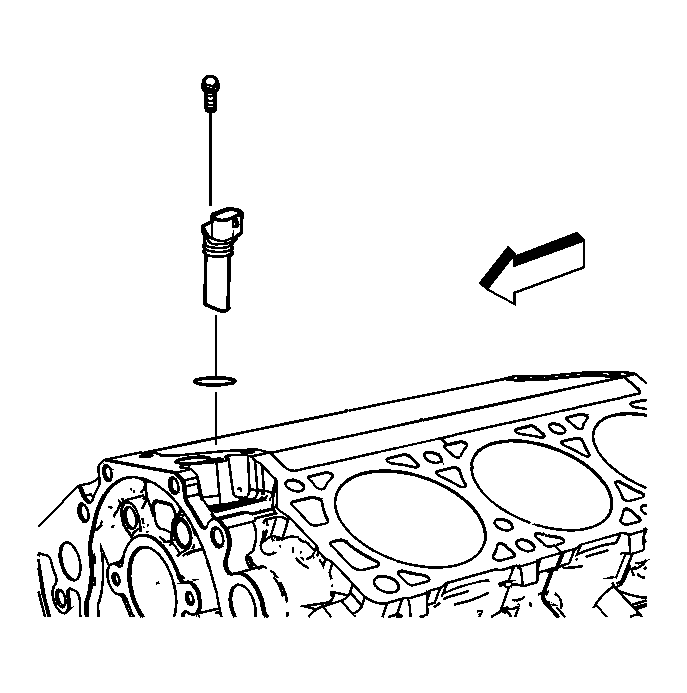

Fig 1: View Of Camshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the CMP sensor.
Inspect the sensor O-ring for wear, cracks, or leakage if the sensor is not being replaced.
