Installation Procedure
- Install the air intake duct to the MAF sensor.

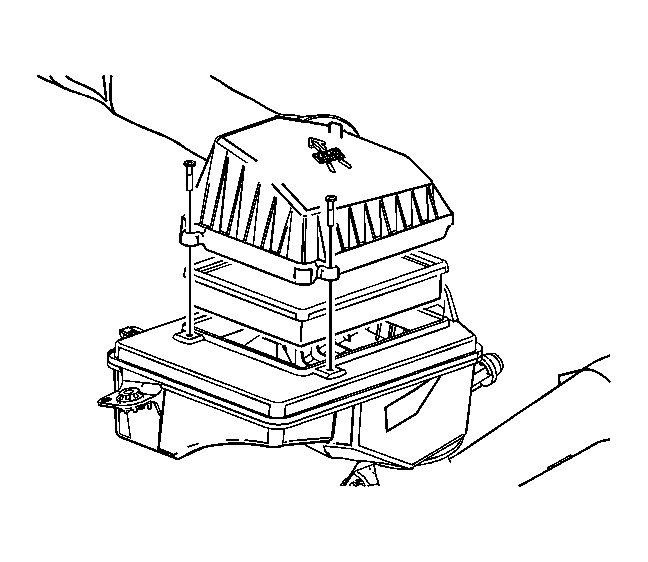

- Install the air intake duct to the throttle body and the air cleaner cover to the air cleaner assembly.
- Install the air cleaner cover fasteners.
- Install the fastener that attaches the air intake duct to the upper tie-bar.
- Tighten the air intake duct clamps fastener at the upper tie bar.
Tighten: Tighten the intake air duct clamps to 10 N.m (89 lb in).
- Reconnect the MAF sensor electrical connector.
- Reconnect the positive crankcase ventilation clean air tube to the air intake duct.
- Tighten the air intake duct clamps.
Tighten: Tighten the intake air duct clamps to 2 N.m (18 lb in).
