Installation Procedure
- Install a new gasket, if necessary.

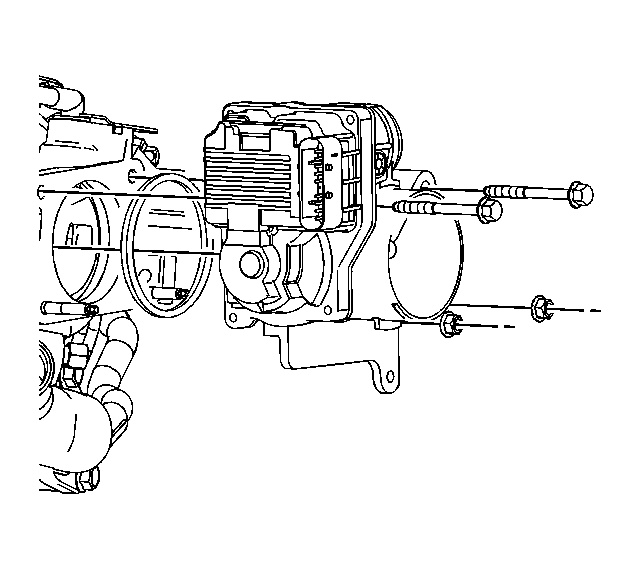

- Install the throttle body assembly.
- Install the throttle body nuts and the bolts.
Tighten: Tighten the nuts and the bolts to 10 N.m (89 lb in).

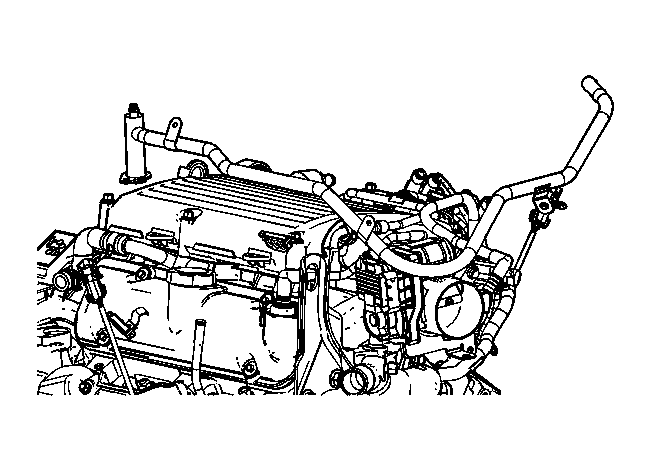

- Install the heater pipe nut to the throttle body.
Tighten: Tighten the nut to 25 N.m (18 lb ft).
- Connect the ETC electrical connector.
- Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .
