2004 Chevrolet Malibu BaseFACTORY OEM SERVICE PROCEDURE

Engine Controls Connector End Views

Accelerator Pedal Position (APP) Sensor Connector End View

GM886053Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326830
  • 6-Way F GT 150 Series (BK)
Pin Wire Color Circuit No. Function
A PU 1272 Low Reference
B L-BU 1162 APP Sensor 2 Signal
C TN 1274 5-Volt Reference
D BN 1271 Low Reference
E D-BU 1161 APP Sensor 1 Signal
F WH/BK 1164 5-Volt Reference
Crankshaft Position (CKP) Sensor Connector End View

GM900247Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15449028
  • 2-Way F GT 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 574 Low Reference
B YE 573 CKP Sensor Signal
Engine Coolant Temperature (ECT) Sensor Connector End View

GM655692Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15449028
  • 2-Way F GT 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 2761 Low Reference
B YE 410 ECT Sensor Signal
Evaporative Emission (EVAP) Canister Purge Solenoid Connector End View

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052643
  • 2-Way F Metri-Pack 150 Series Sealed (RD)
Pin Wire Color Circuit No. Function
A PK/BK 5291 Engine Main Relay Fused Control
B D-GN/WH 428 EVAP Canister Purge Solenoid Control
Fuel Injector 1 Connector End View

GM806497Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326180
  • 2-Way F Micro-Pack 64 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 139 Ignition 1 Voltage
B BK 1744 Fuel Injector 1 Control
Fuel Injector 2 Connector End View

GM806497Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326180
  • 2-Way F Micro-Pack 64 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 139 Ignition 1 Voltage
B L-GN/BK 1745 Fuel Injector 2 Control
Fuel Injector 3 Connector End View

GM806497Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326180
  • 2-Way F Micro-Pack 64 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 139 Ignition 1 Voltage
B PK/BK 1746 Fuel Injector 3 Control
Fuel Injector 4 Connector End View

GM806497Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326180
  • 2-Way F Micro-Pack 64 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 139 Ignition 1 Voltage
B L-BU/BK 844 Fuel Injector 4 Control

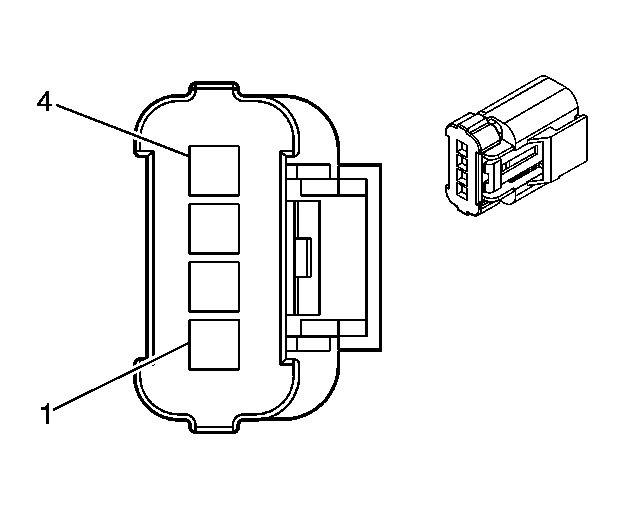

Fuel Pump and Sender Assembly Connector End View

GM1464949Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 22666266
  • 4-Way F (GY)
Pin Wire Color Circuit No. Function
1 GY 120 Fuel Pump Supply Voltage
2 PU 1589 Fuel Level Sensor Signal
3 BK/WH 651 Low Reference
4 BK 1250 Ground
Fuel Tank Pressure (FTP) Sensor Connector End View

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059595
  • 3-Way F Metri-Pack 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A OG/BK 469 Low Reference
B D-GN 890 Fuel Tank Pressure Sensor Signal
C GY 705 5-Volt Reference
Heated Oxygen Sensor (HO2S) Sensor 1 Connector End View

GM456551Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160482
  • 4-Way F Metri-Pack 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A TN/WH 3111 HO2S Low Signal
B PU/WH 3110 HO2S High Signal
C GY/WH 3113 HO2S Heater Low Control
D PK/BK 5291 Ignition 3 Voltage
Heated Oxygen Sensor (HO2S) Sensor 2 Connector End View

GM280761Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160825
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A TN/WH 3121 HO2S Low Signal
B PU 3120 HO2S High Signal
C GY/WH 3122 HO2S Heater Low Control
D PK/BK 5291 Ignition 3 Voltage
Ignition Control Module (ICM) Connector End View

GM877917Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15464996
  • 9-Way F GT 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK 239 Ignition 1 Voltage
B WH 423 IC Timing Control A
C-D - - Not Used
E BK 450 Ground
F BN/WH 633 Camshaft Position Signal
G OG 406 IC Timing Control B
H-J - - Not Used
Knock Sensor (KS) Connector End View

GM684799Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12077900
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 496 Knock Sensor Signal
B GY 1716 Low Reference
Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Connector End View

GM647974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326822
  • 5-Way F GT 150 SLD 4.0 (BK)
Pin Wire Color Circuit No. Function
A YE 492 MAF Sensor Signal
B BK/WH 451 Ground
C PK/BK 5291 Engine Main Relay Fused Control 2
D TN/BK 2760 Low Reference
E TN 472 IAT Sensor Signal
Manifold Absolute Pressure (MAP) Sensor Connector End View

GM684840Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129946
  • 3-Way F Metri-Pack 150 SLD (L-GY)
Pin Wire Color Circuit No. Function
A OG/BK 469 Low Reference
B L-GN 432 MAP Sensor Signal
C GY 2704 5-Volt Reference
Throttle Actuator Control (TAC) Module Connector End View

GM646400Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326835
  • 8-Way F GT 150 SLD 4.0 (BK)
Pin Wire Color Circuit No. Function
A D-GN 485 TP Sensor 1 Signal
B TN/WH 1704 Low Reference
C GY 2701 5-Volt Reference
D PU 486 TP Sensor 2 Signal
E BN 582 TAC Motor Control - 2
F YE 581 TAC Motor Control - 1
G TN 2752 Low Reference
H L-BU/BK 1688 5-Volt Reference
