2004 Chevrolet Malibu BaseFACTORY OEM SERVICE PROCEDURE

Engine Controls Component Views

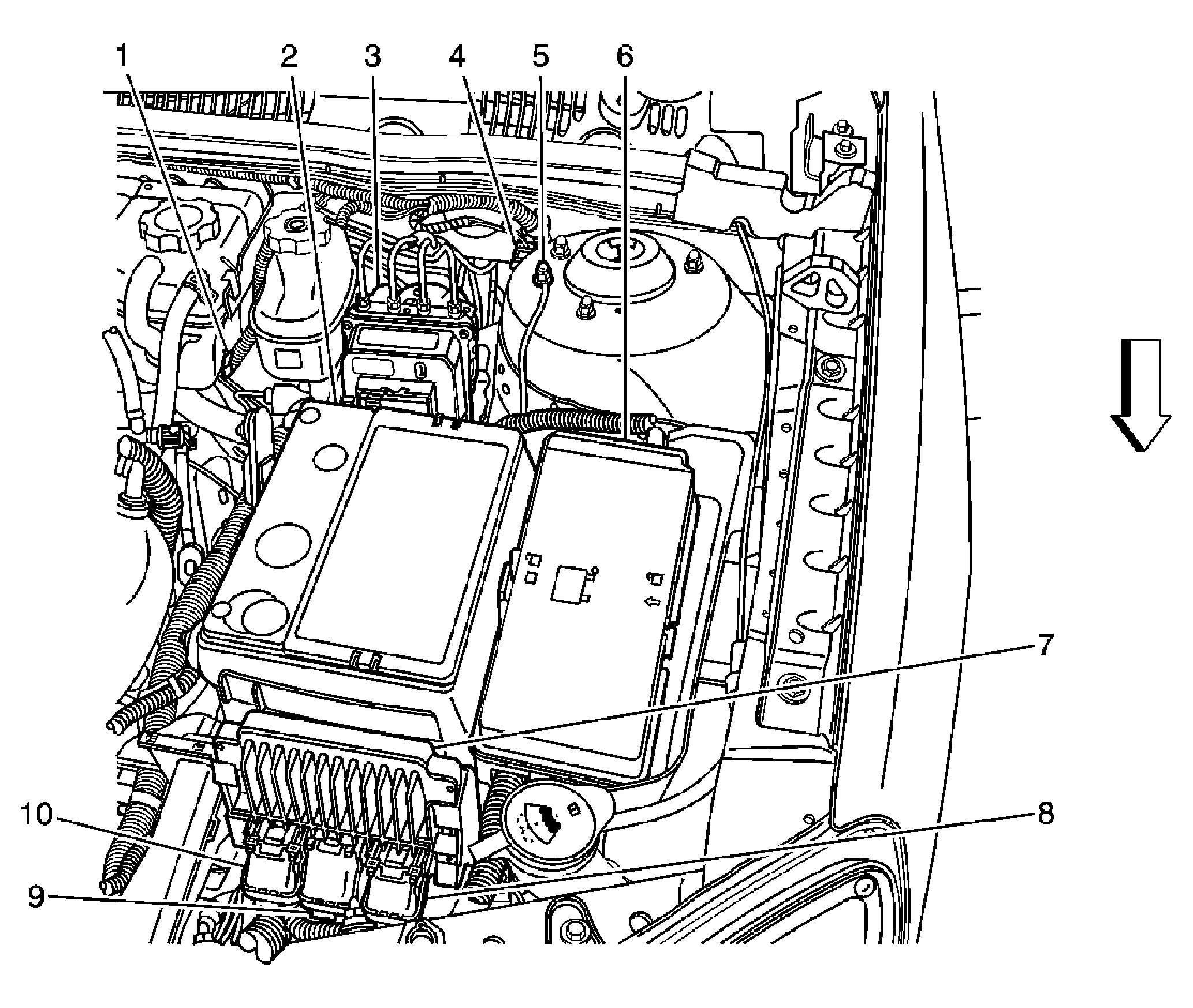

Fig 1: View Of Left Rear of Engine Compartment
GM1264030Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Coolant Level Switch
2 Battery
3 Electronic Brake Control Module (EBCM)
4 C101
5 G103
6 Fuse Block - Underhood
7 Powertrain Control Module (PCM)
8 Powertrain Control Module (PCM), C3
9 Powertrain Control Module (PCM), C2
10 Powertrain Control Module (PCM), C1

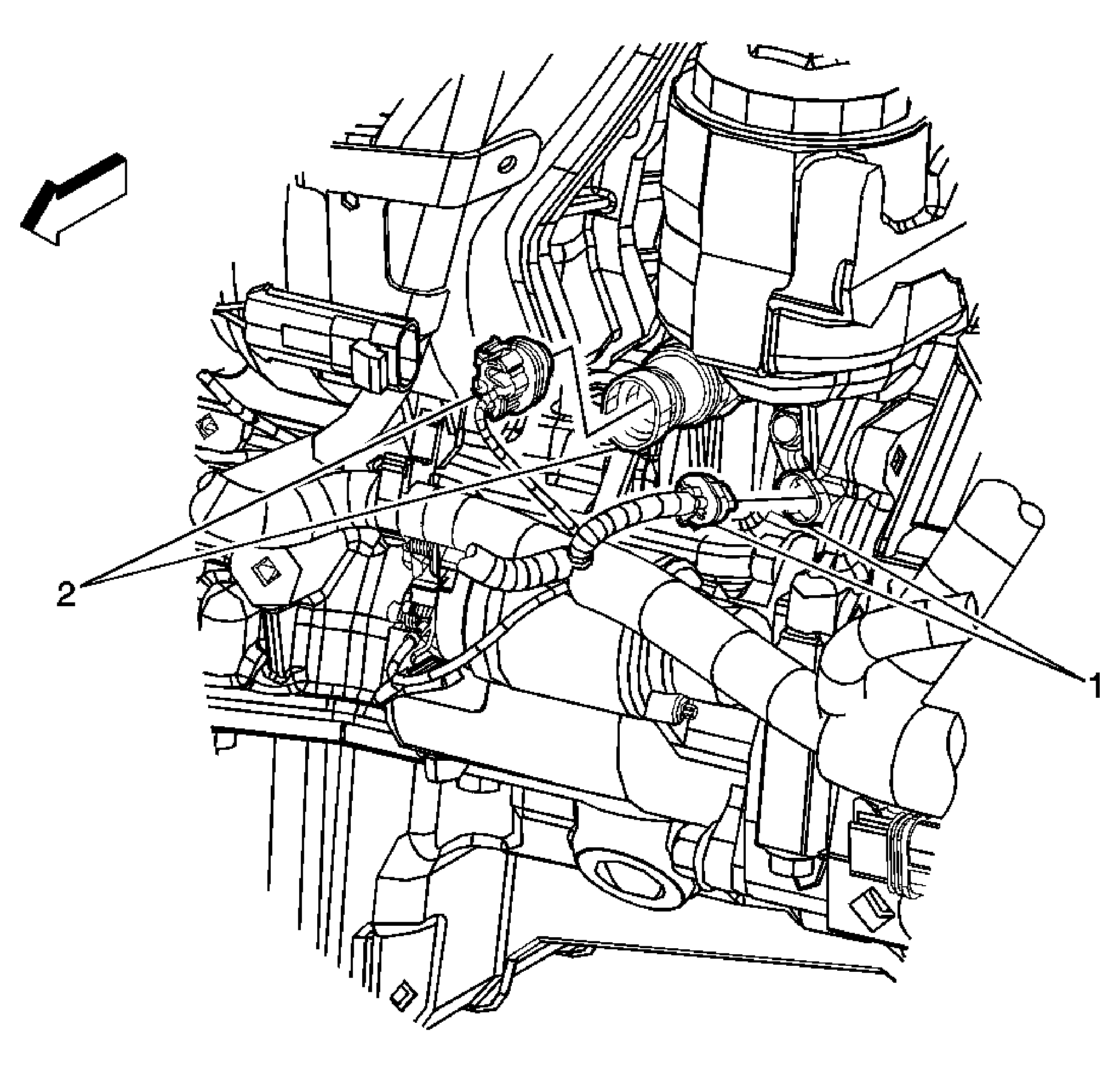

Fig 2: View Of Top Right side of Engine - L61
GM1265628Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Crankshaft Position (CKP) Sensor
2 Engine Oil Pressure (EOP) Switch

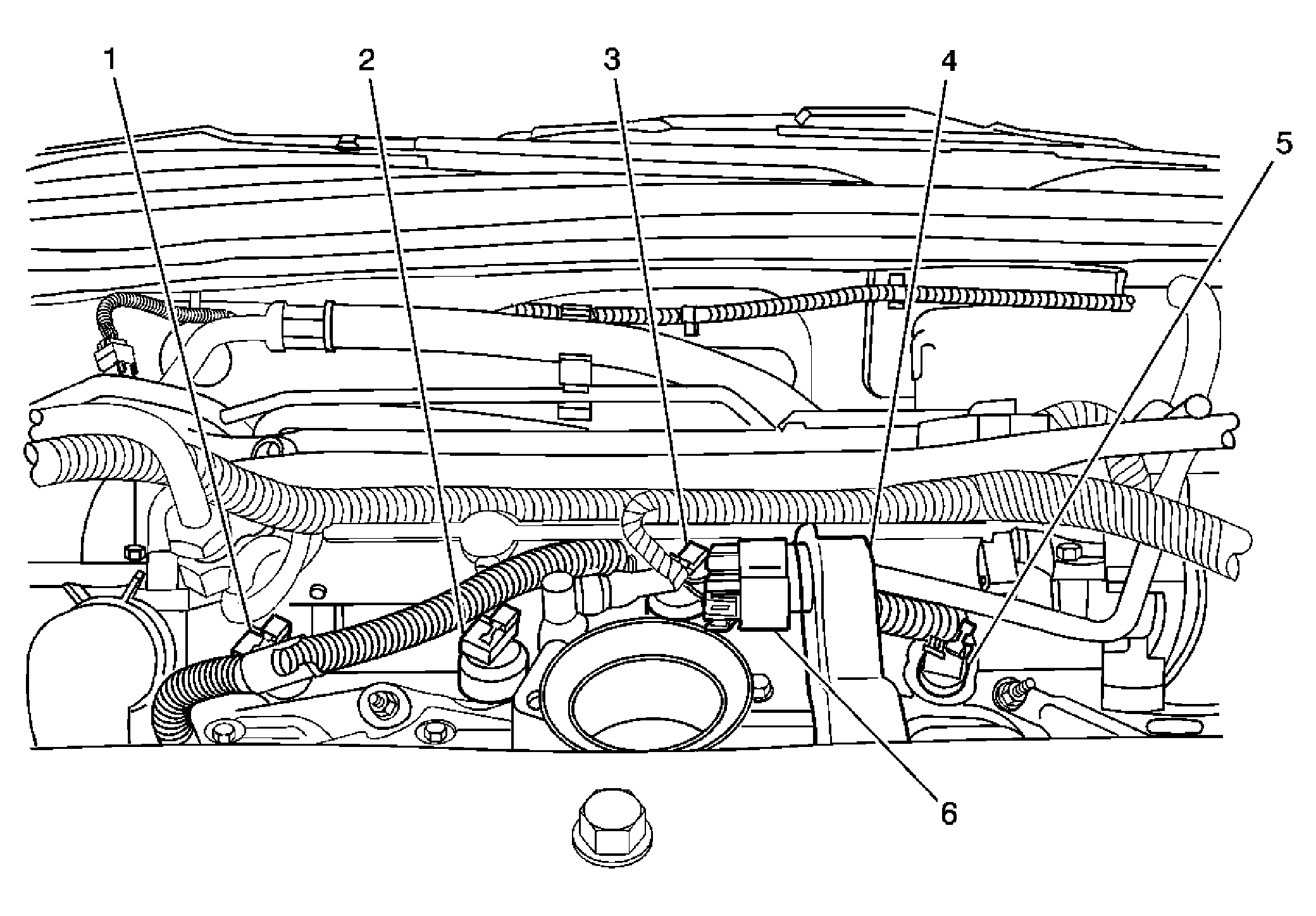

Fig 3: View Of Top Front of Engine - L61
GM1394464Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector 1
2 Fuel Injector 2
3 Fuel Injector 3
4 Throttle Actuator Control (TAC) Module
5 Fuel Injector 4
6 Manifold Absolute Pressure (MAP) Sensor

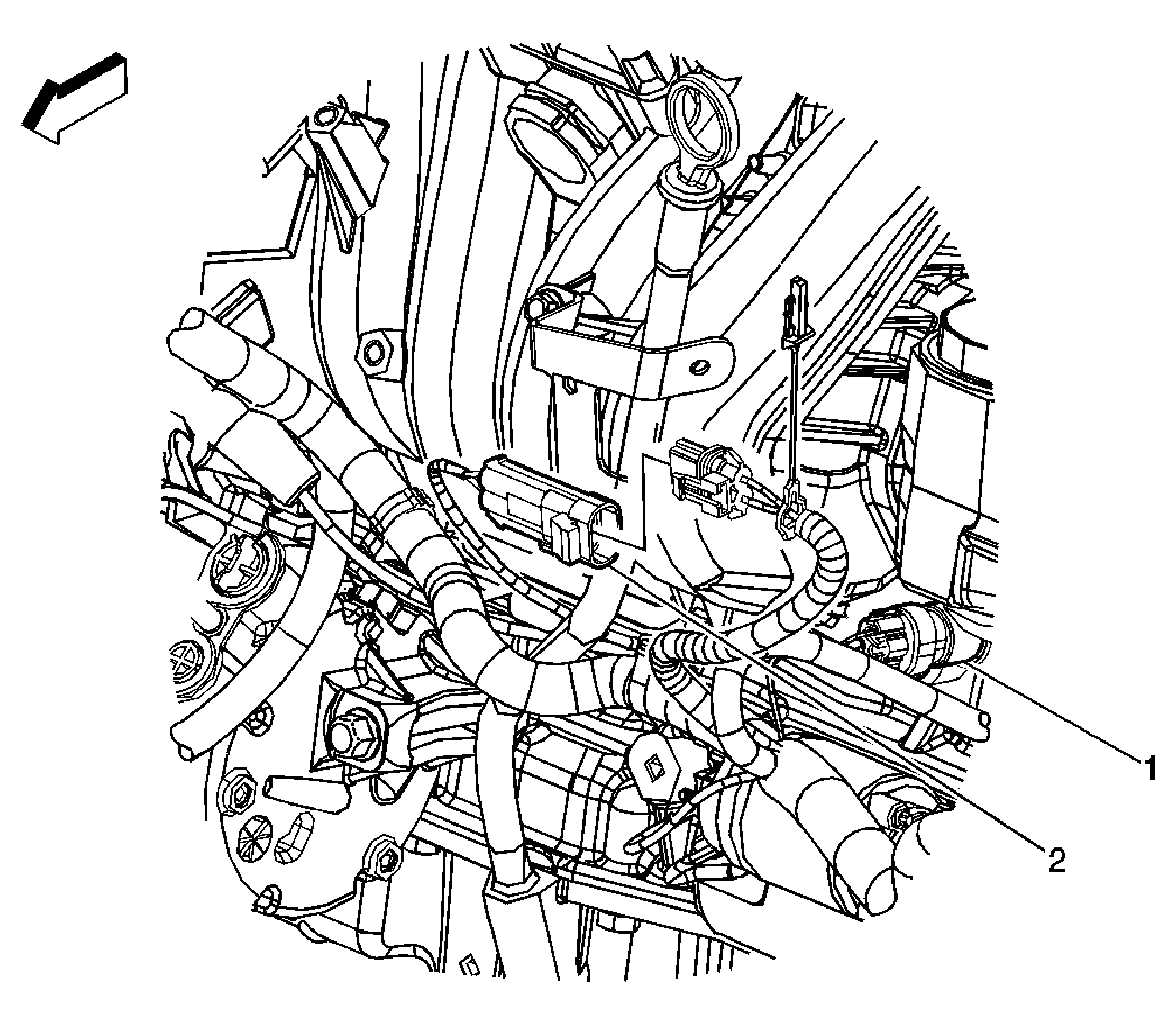

Fig 4: View Of Front of the Engine - L61
GM1265632Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Oil Pressure (EOP) Switch
2 Knock Sensor (KS)

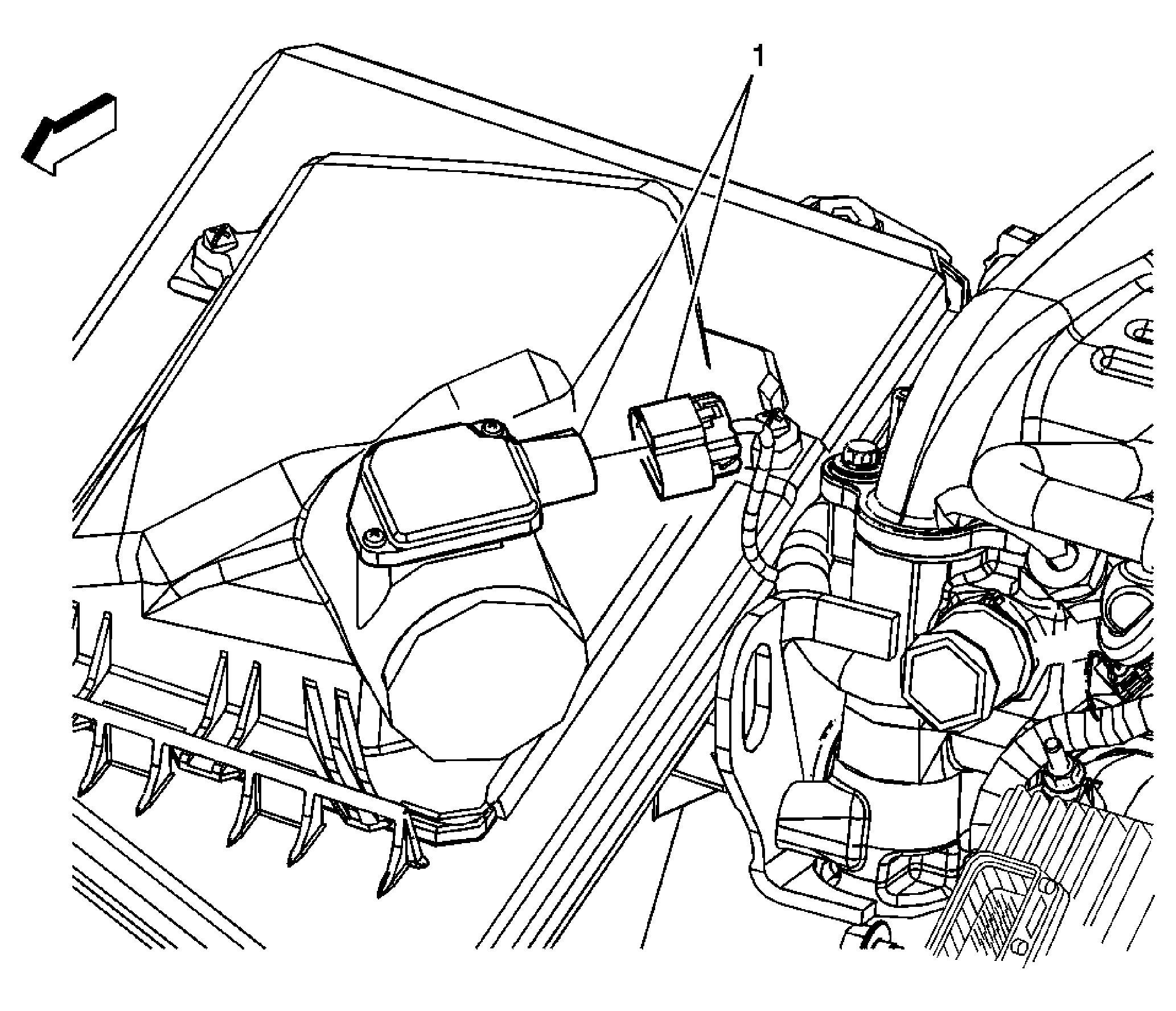

Fig 5: View Of Right Front of the Engine Compartment
GM1265715Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mass Air Flow (MAF) Sensor W/Intake Air Temperature (IAT) Sensor

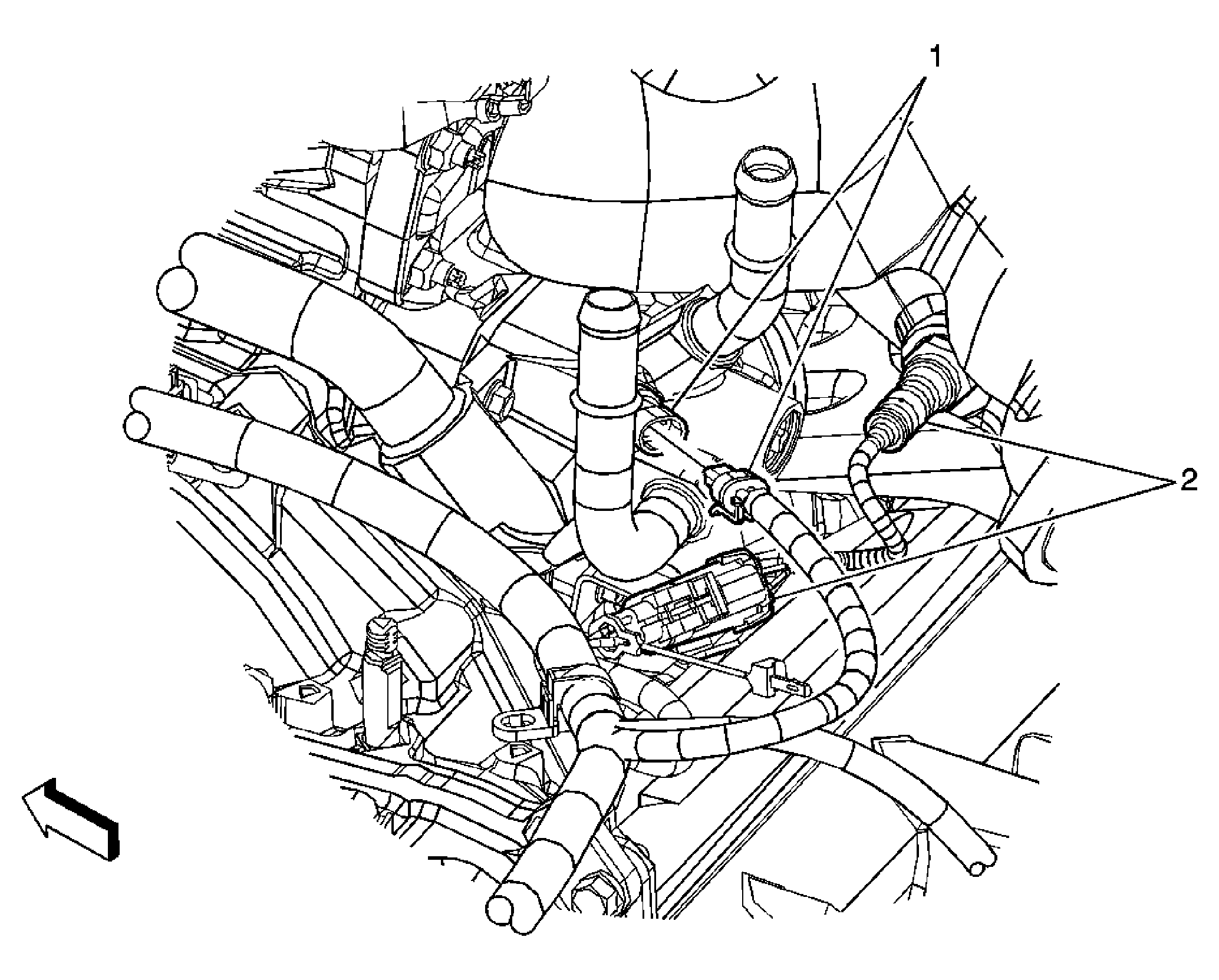

Fig 6: View Of Left Rear of the Engine - L61
GM1265605Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Coolant Temperature (ECT) Sensor
2 Heated Oxygen Sensor (HO2S) 1

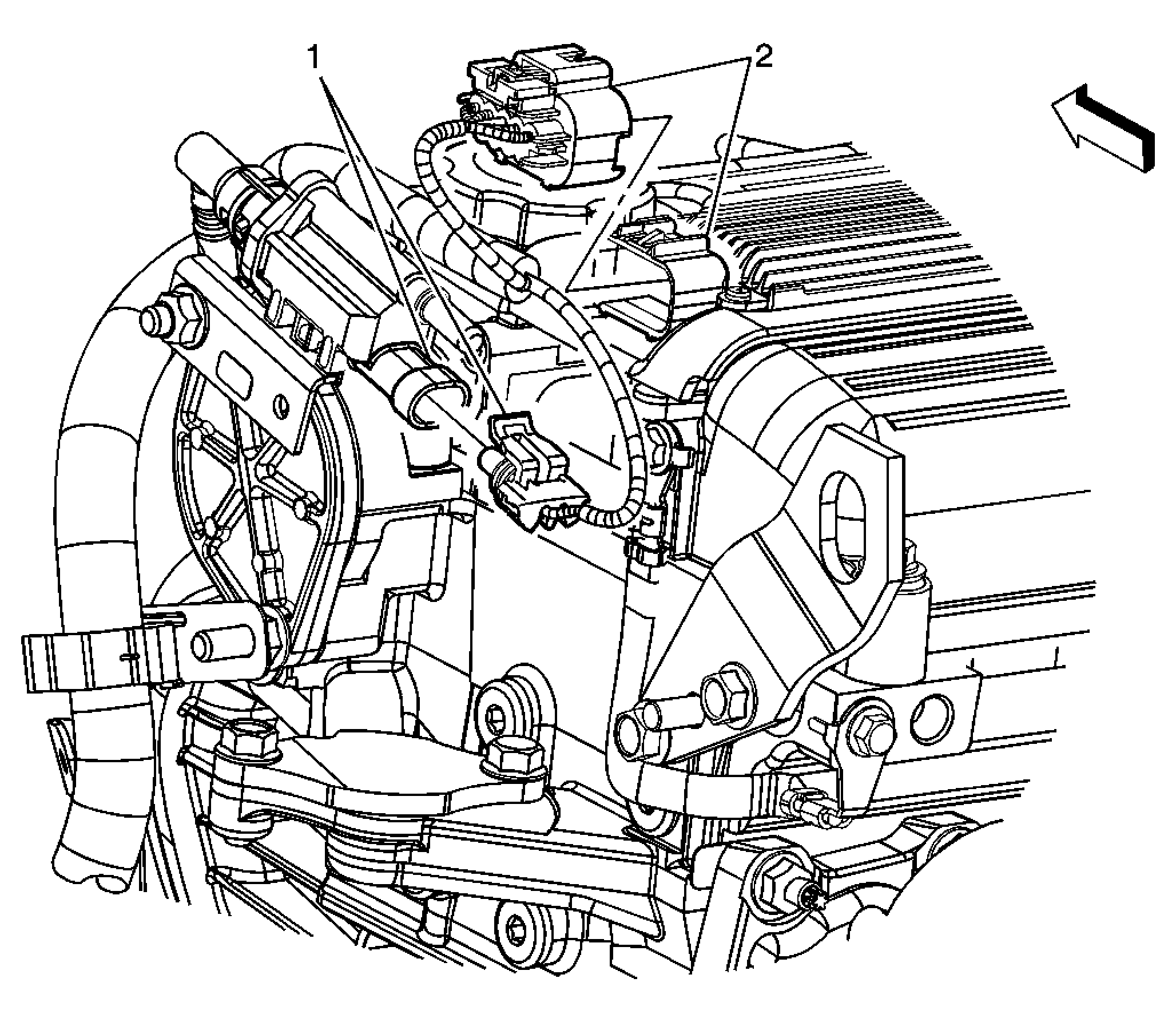

Fig 7: View Of Top of Engine - L61
GM1265625Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emission (EVAP) Canister Purge Solenoid
2 Ignition Control Module (ICM)

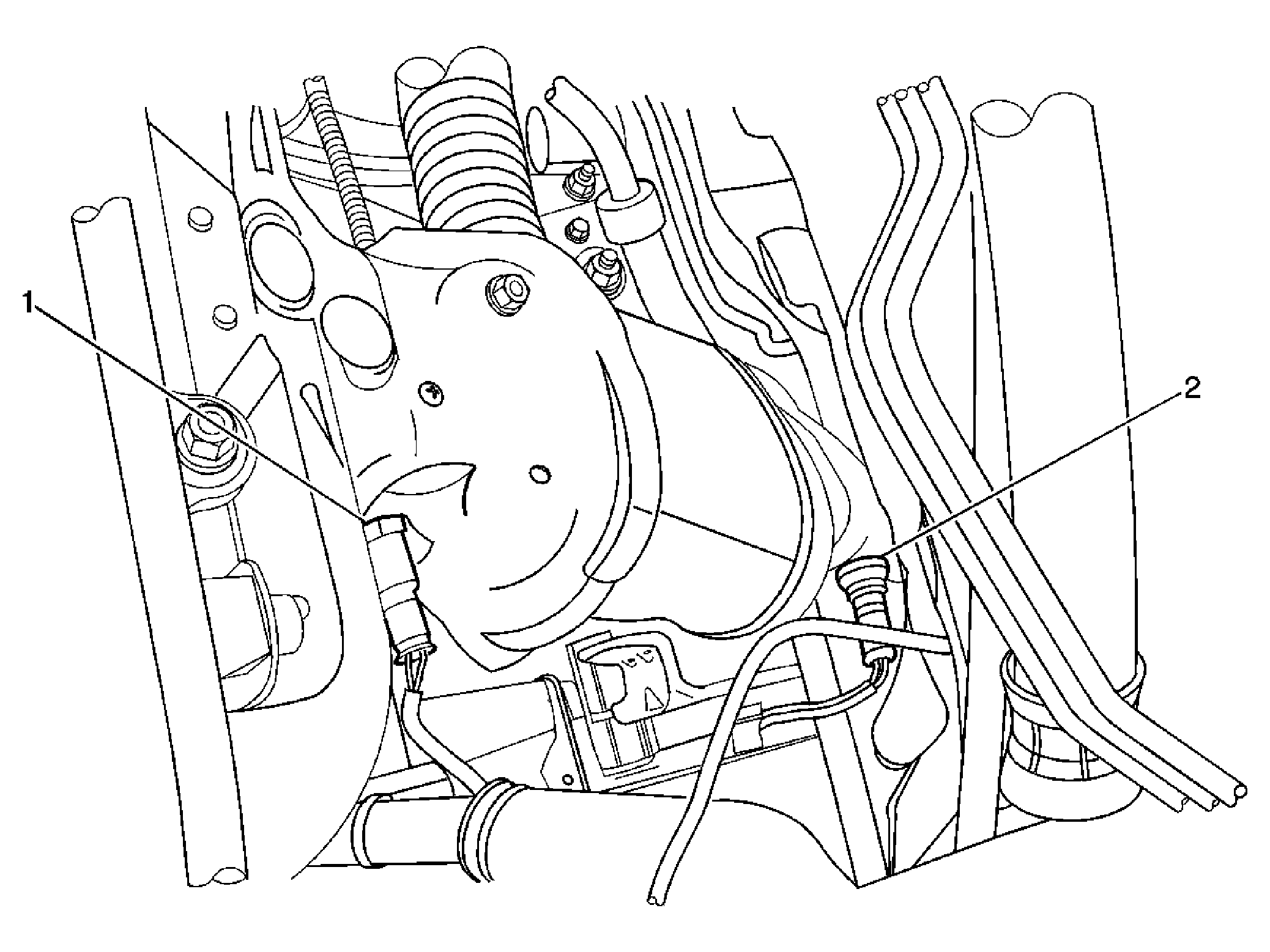

Fig 8: View Of Rear of Engine - L61
GM1394466Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Oxygen Sensor (HO2S) 1
2 Heated Oxygen Sensor (HO2S) 2

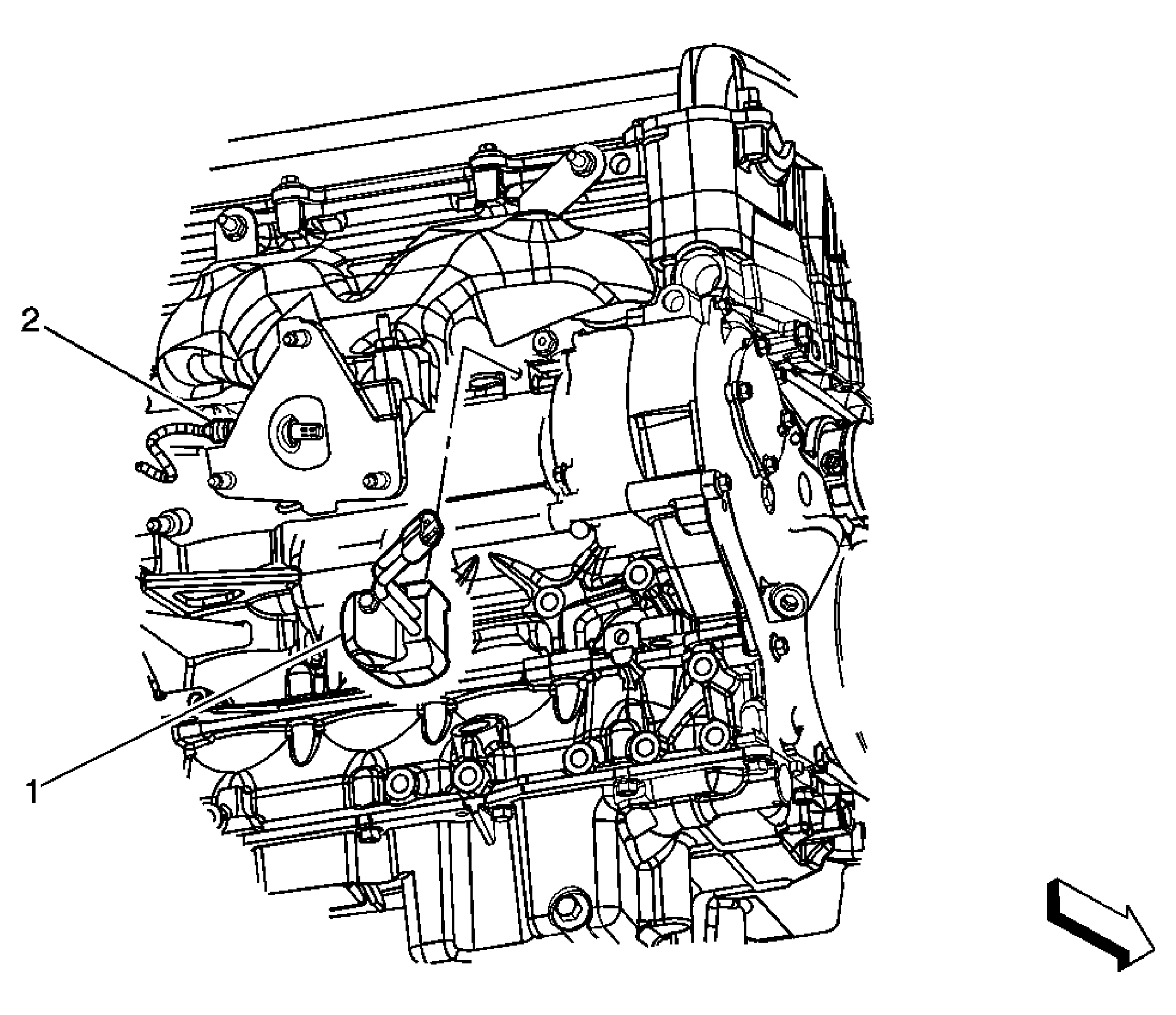

Fig 9: View Of Lower Rear of Engine - L61
GM1265629Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Coolant Heater
2 Heated Oxygen Sensor (HO2S) 1

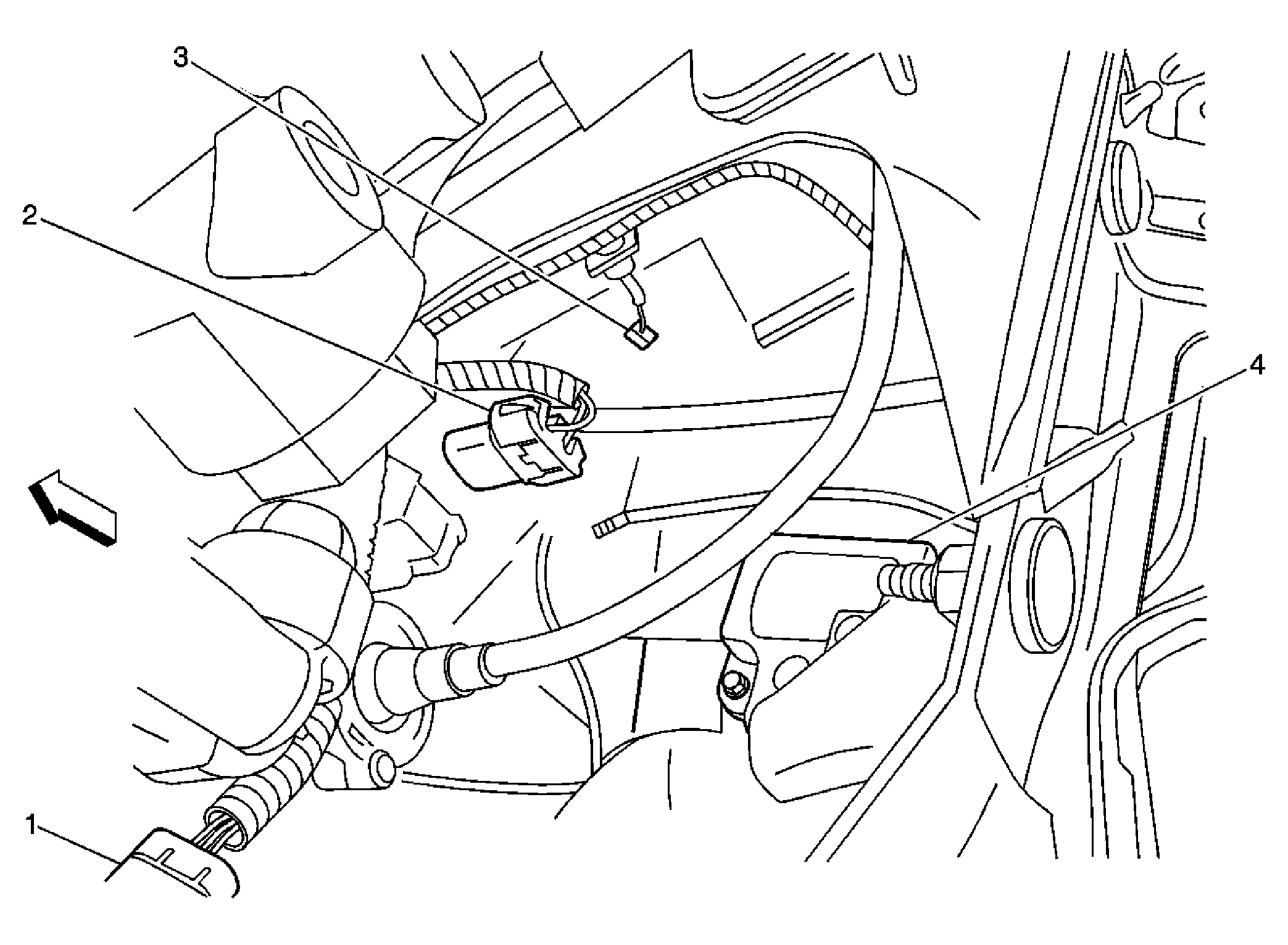

Fig 10: View Of Left Side of HVAC Case
GM1394449Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accelerator Pedal Position (APP) Sensor
2 Adjustable Pedals Actuator
3 Air Temp Sensor - Upper (C68)
4 Air Temperature Actuator

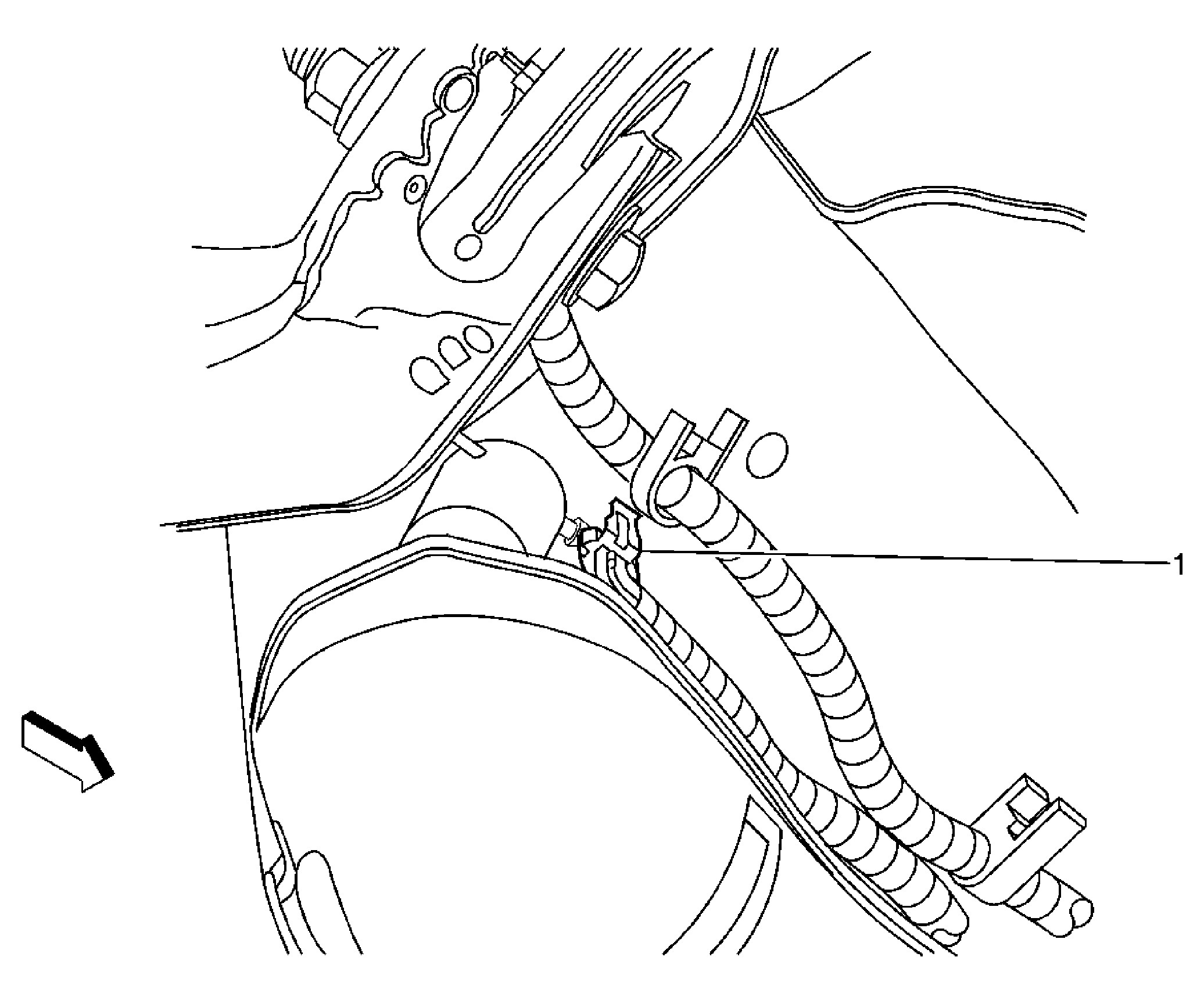

Fig 11: View Of Under Right Rear of Vehicle
GM1394359Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emission (EVAP) Canister Vent Solenoid Valve

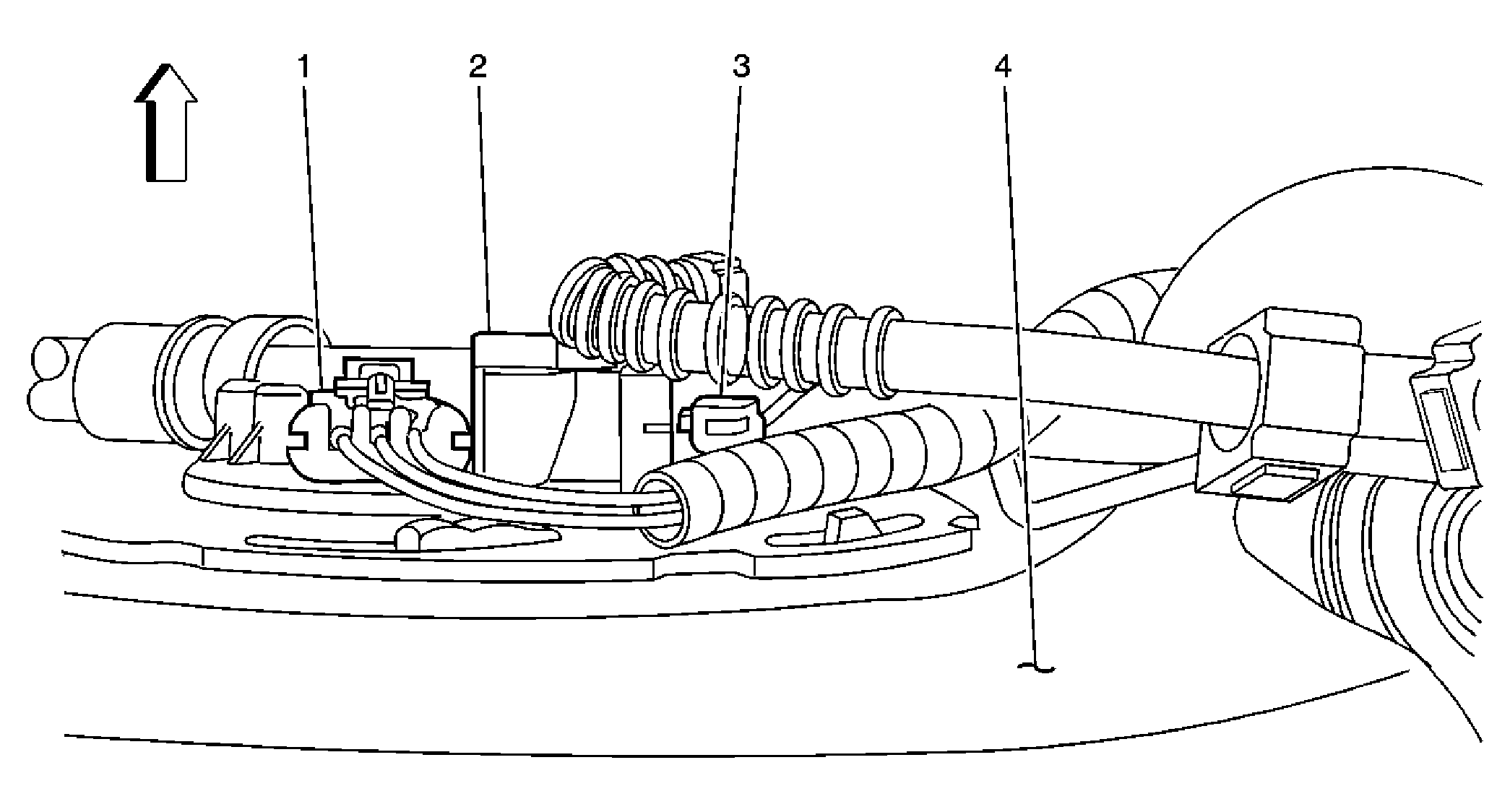

Fig 12: View Of Top of Fuel Tank
GM1394468Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Tank Pressure (FTP) Sensor, Connector
2 Fuel Pump and Sender Assembly
3 Fuel Pump and Sender Assembly Connector
4 Fuel Tank
