HVAC Control Module Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

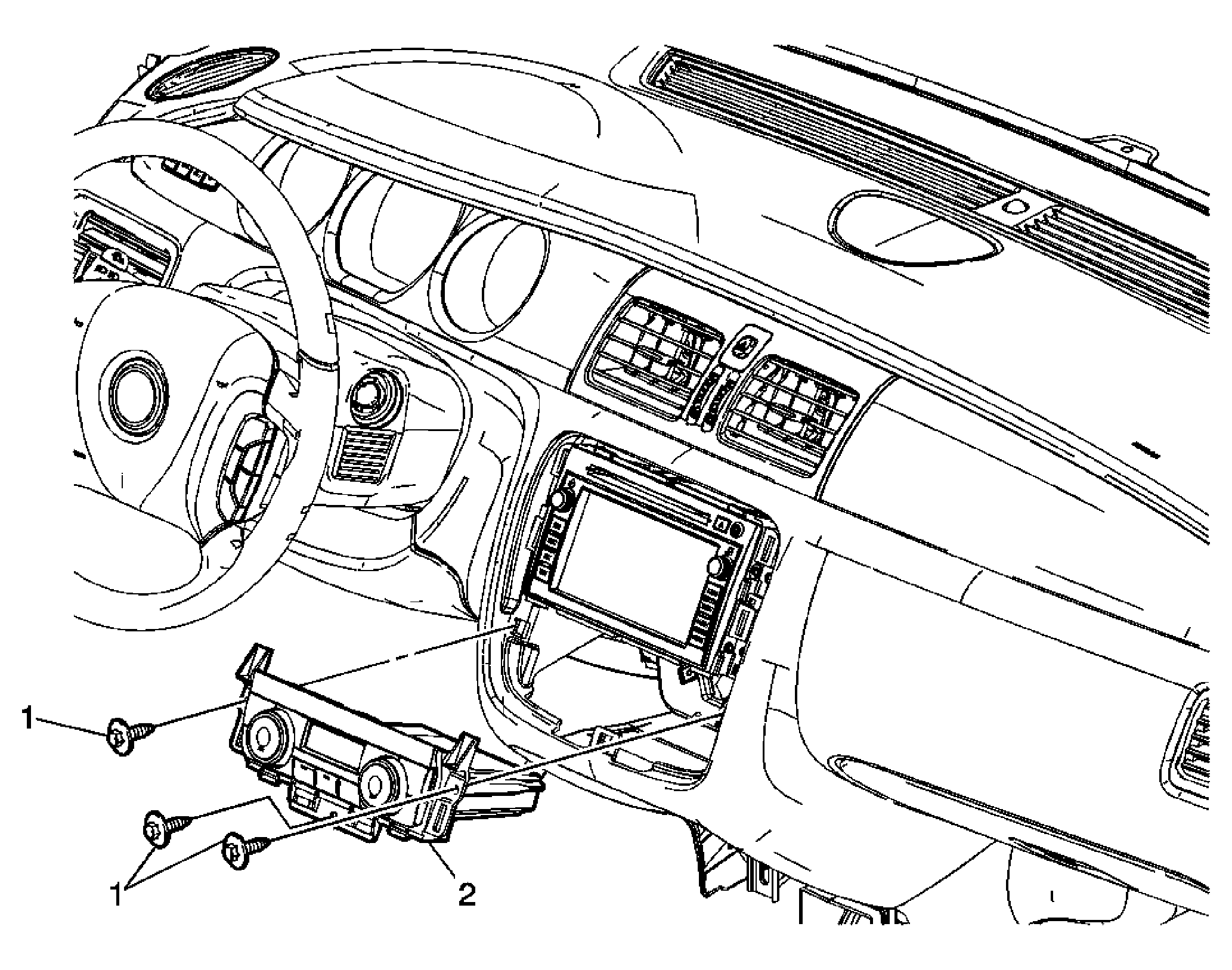

Fig 1: View Of HVAC Control Module
GM1683159Courtesy of GENERAL MOTORS CORP.
Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
1 Heating and Air Conditioning Control Assembly Screw (Qty: 3)

Tighten:  1.0 N.m (9 lb in)
2 Heating and Air Conditioning Control Assembly
Tip:  Disconnect the heating and air conditioning control assembly electrical connectors.
Refer to Control Module References for programming and setup information.
