Communication Interface Module Replacement

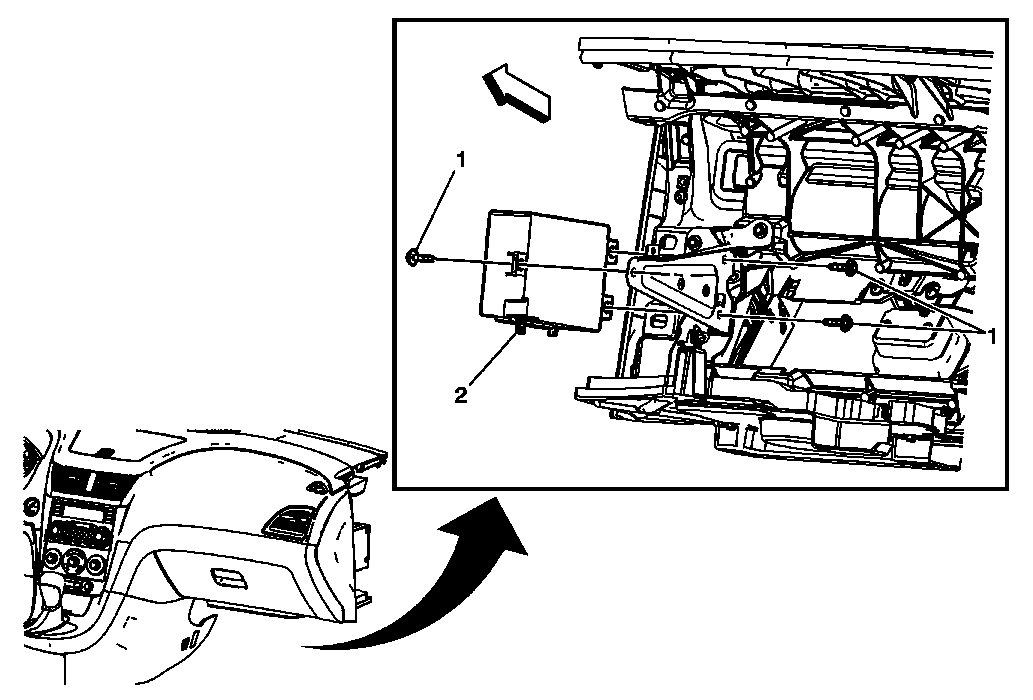

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Open Instrument panel compartment fully beyond it's stop bumpers. |
|
| 1 | Communication Interface Module Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Communication Interface Module Procedure
|
