2004 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Body Control Module Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

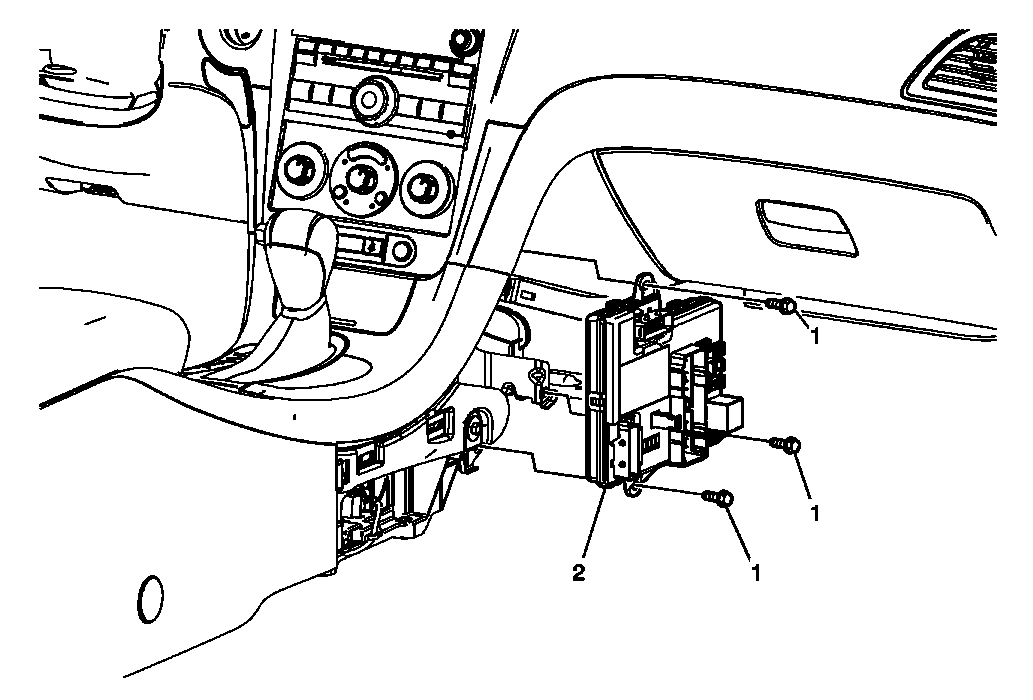

Fig 1: View Of Body Control Module
GM1993565Courtesy of GENERAL MOTORS COMPANY
Body Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the front floor console extension panel - right side. Refer to Front Floor Console Extension Panel Replacement - Right Side .
1 Body Control Module Bolt Screw (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Body Control Module

Procedure

  1. If the scan tool can communicate with the BCM that is being replaced, select BCM copy and flash to copy information from that BCM before removal.
  2. Disconnect the electrical connections.
  3. Refer to Control Module References for programming and set up procedures.
