2004 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the fuel injector sight shield. Refer toFuel Injector Sight Shield Replacement in Engine Mechanical-3.8L.
Disconnect the throttle position (TP) sensor electrical connector.

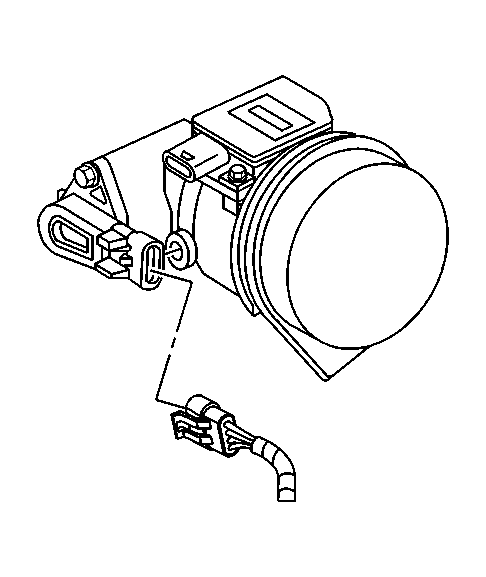

Fig 1: Disconnecting TP Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Remove the 2 TP sensor screws.

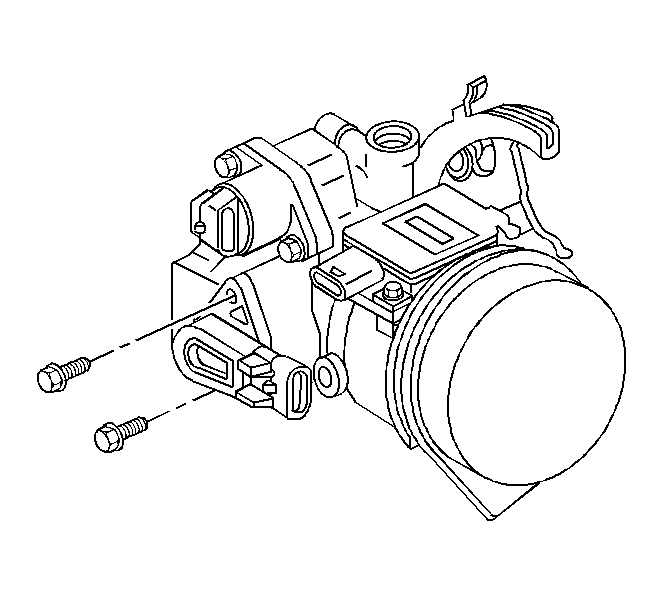

Fig 2: Removing TP Sensor Screws

Courtesy of GENERAL MOTORS CORP.

Remove the TP sensor.

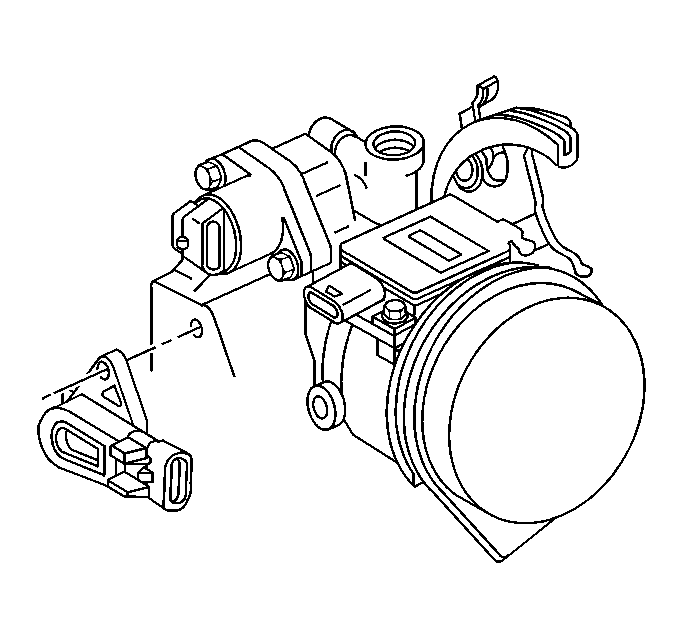

Fig 3: Removing TP Sensor

Courtesy of GENERAL MOTORS CORP.
