2004 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Removal Procedure
NOTE:
The oxygen sensor may be difficult to remove when the engine temperature is below 48°C (120°F). Excessive force may damage threads in the exhaust manifold or the exhaust pipe.
- Raise and support the vehicle. Refer toLifting and Jacking the Vehicle in General Information.

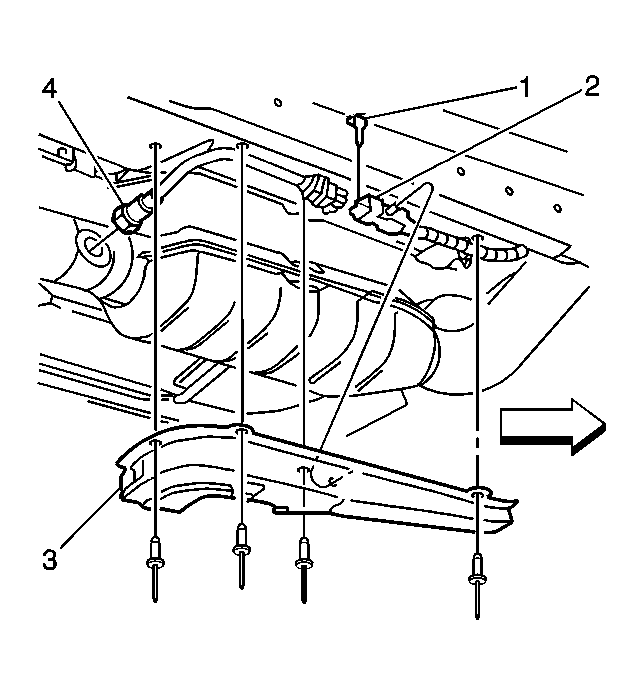

- Remove the HO2S electrical connector retaining tab (1) from the HO2S electrical connector (2).
- Disconnect the HO2S electrical connector from the HO2S electrical connector (2).
- Use the J 39194 to remove the HO2S from the exhaust pipe. See Special Tools and Equipment .
