2004 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Relieve the fuel pressure from the fuel system. Refer toFuel Pressure Relief Procedure .
- Clean the fuel rail assembly and connections.

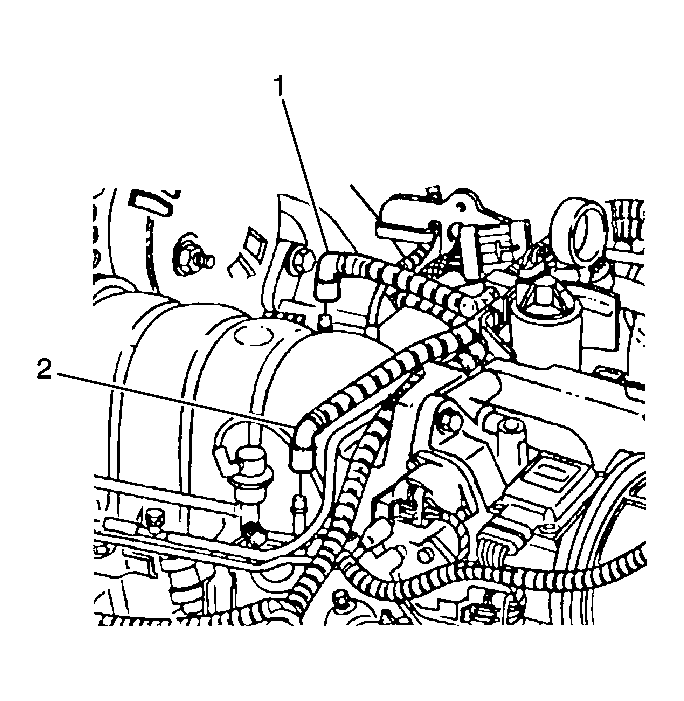

- Disconnect the fuel feed (1) and the fuel return pipes (2) from the fuel rail. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
- Disconnect the vacuum line from the fuel pressure regulator.
- Remove the ignition coil wires.
- Disconnect the fuel injector electrical connectors.
- Remove the fuel rail hold-down bolts.

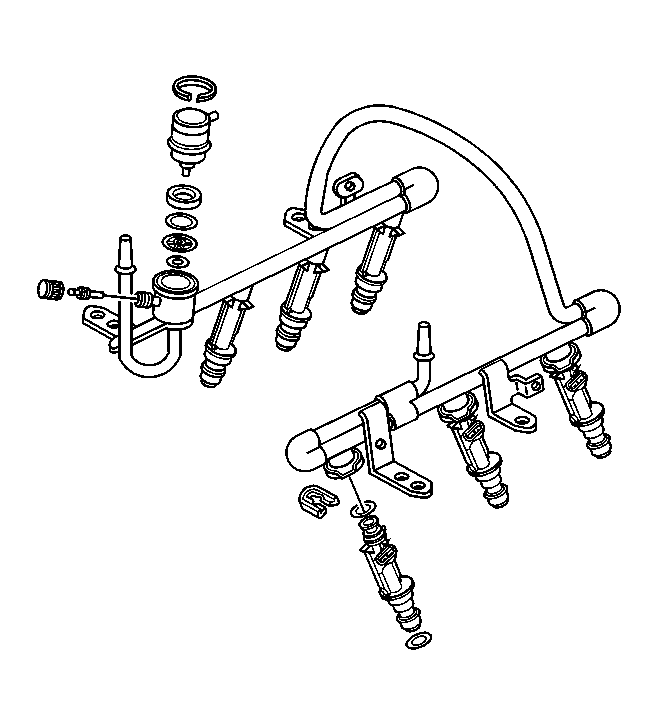

- Remove the fuel rail with equal force on both sides of the fuel rail.
