Installation Procedure

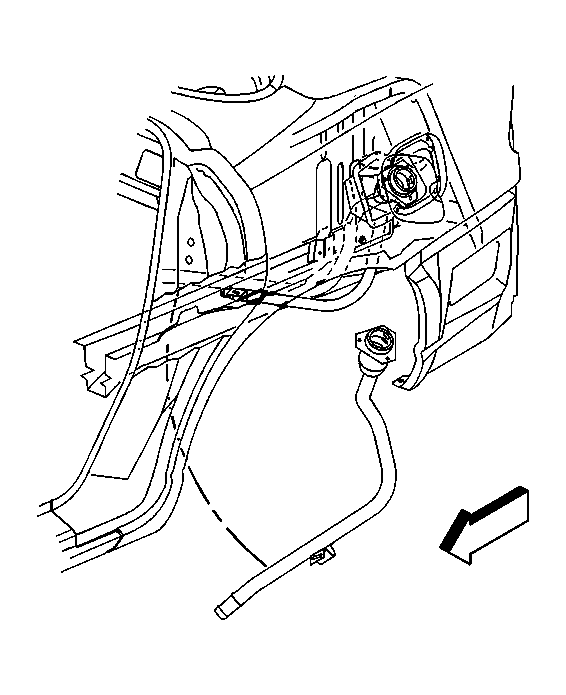

- Install the fuel filler pipe.
- Install the fuel tank filler pipe screw to the under body.
Tighten: Tighten the screw to 13 N.m (115 lb in).

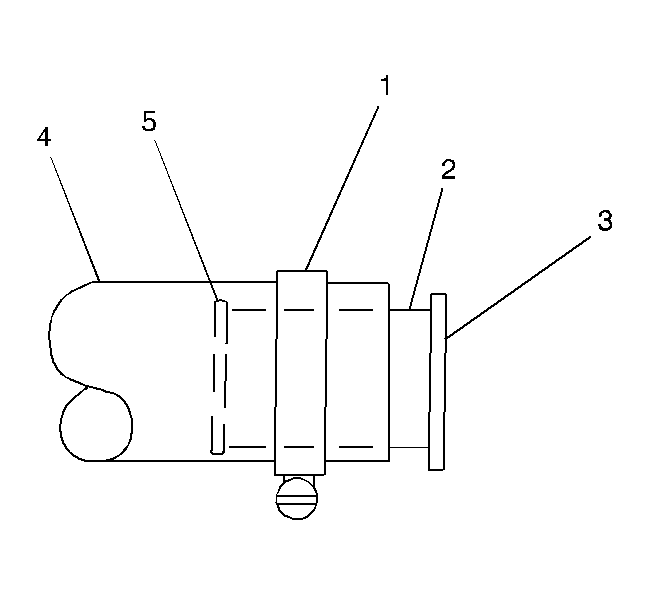

- Install the filler hose (4) to the fuel fill pipe (2).
Inspect and ensure the filler hose (4) is fully seated on the fuel tank port and the fuel filler pipe (2).
- Ensure the clamp (1) is properly located on the tank port between the bead (5) and the pipe (3).
Tighten: Tighten the fuel tank filler pipe hose clamp to 2.5 N.m (22 lb in).
- Lower the vehicle.

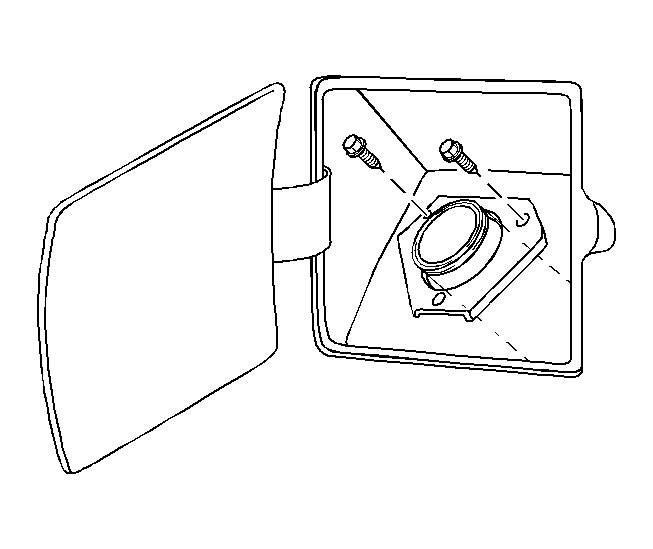

- Install the fuel filler pipe screws to the fuel filler pipe access panel.
Tighten: Tighten the screws to 2.5 N.m (22 lb in).
- Add fuel and install the fuel fill cap.
