Installation Procedure

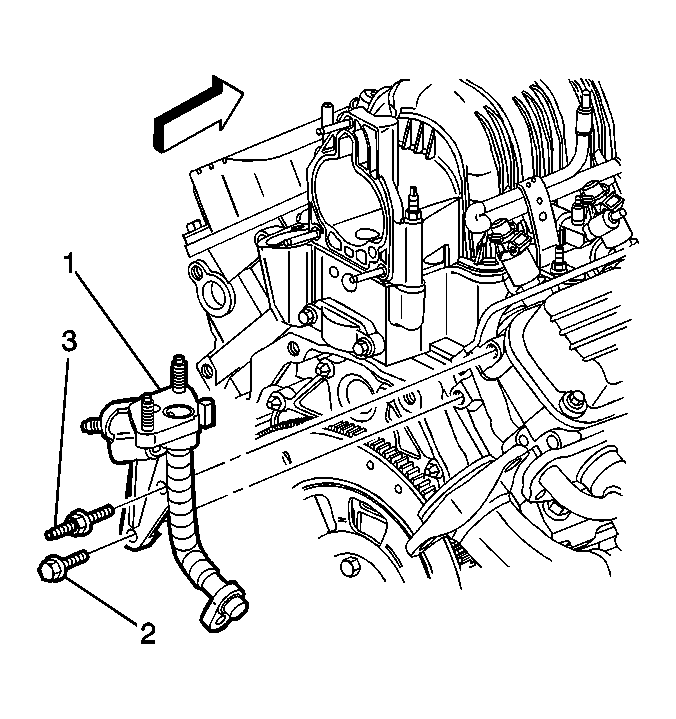

- Install the EGR valve inlet adapter pipe (1).
- Install the EGR valve inlet adapter pipe bolts and studs (2,3).
Tighten: Tighten the bolt and stud to 50 N.m (37 lb ft).
- Raise the vehicle.

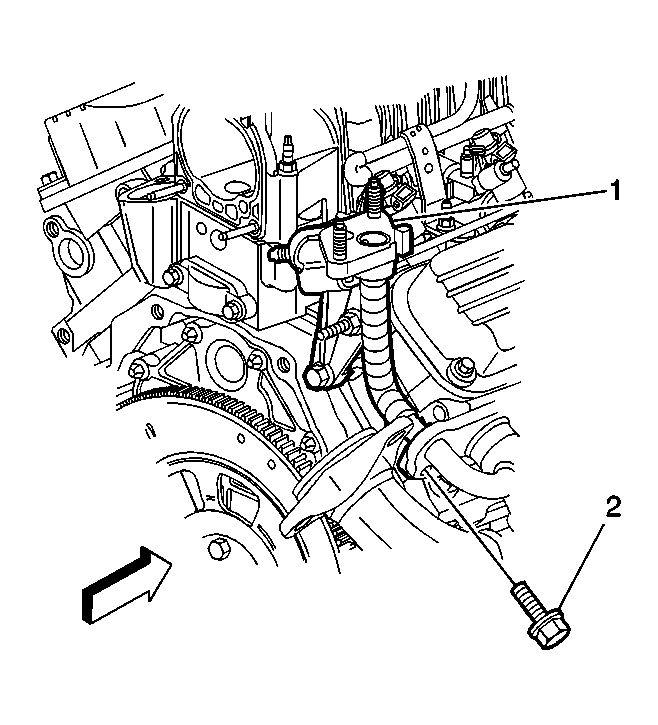

- Install the EGR valve inlet adapter pipe bolt (2) to the exhaust manifold.
Tighten: Tighten the bolt to 30 N.m (22 lb in).
- Lower the vehicle.
- Install the EGR valve outlet pipe. Refer to Exhaust Gas Recirculation (EGR) Outlet Pipe Replacement .
- Install the EGR valve. Refer to Exhaust Gas Recirculation (EGR) Valve Replacement .
