2004 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Removal Procedure
NOTE:
Use care when handling the coolant sensor. Damage to the coolant sensor will affect the operation of the fuel control system.
- Partially drain the cooling system. Refer to Draining and Filling Cooling System in Engine Cooling.
- Remove the thermostat housing. Refer to Thermostat Replacement (3.4L) or Thermostat Replacement (3.8L) in Engine Cooling.
- Disconnect the ECT sensor electrical connector.

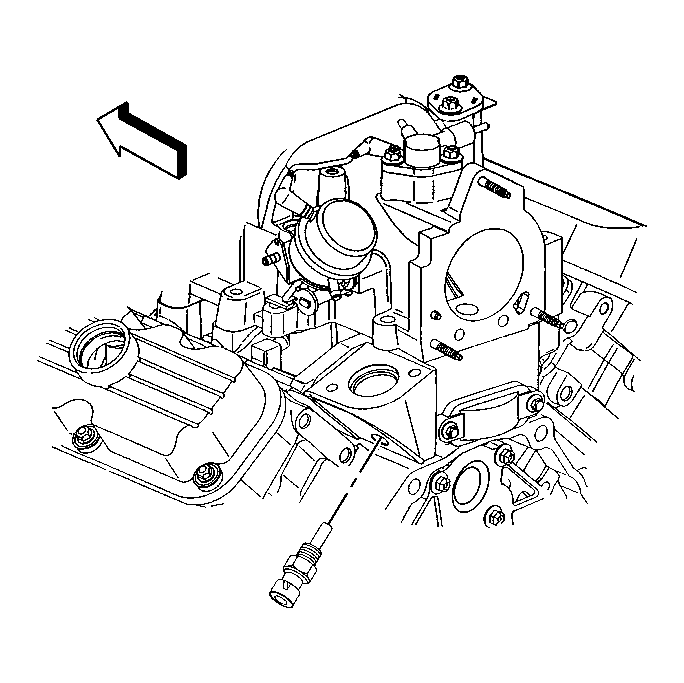

- Remove the ECT sensor.
