2004 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the coolant recovery reservoir. Refer to Coolant Recovery Reservoir Replacement in Engine Cooling.
Remove the drive belt. Refer to Drive Belt Replacement (L32) or Drive Belt Replacement (L67) in Engine Mechanical 3.8L.
Disconnect the electrical connector (2) from the camshaft position sensor (1).

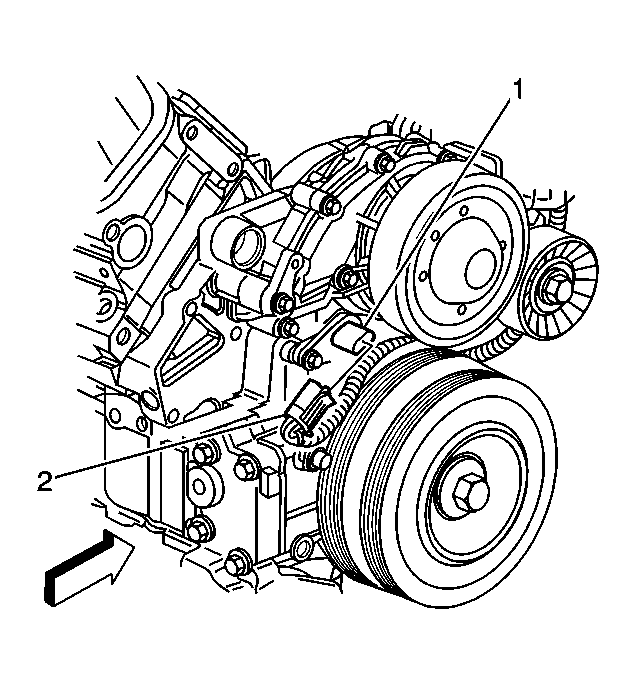

Fig 1: Disconnecting Electrical Connector From CMP Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the camshaft position sensor bolt.
Remove the camshaft position sensor from the engine front cover.

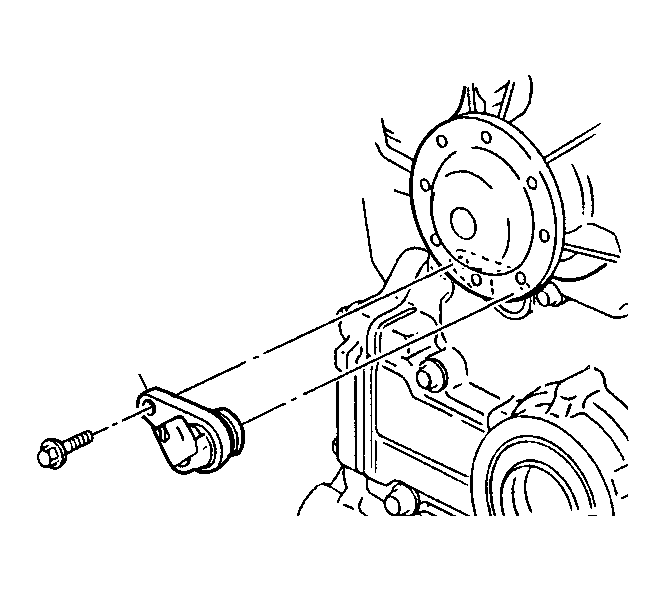

Fig 2: Removing CMP Sensor

Courtesy of GENERAL MOTORS CORP.
