2004 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical - 3.8L.
- Remove the boost control solenoid. Refer to Boost Control Solenoid Replacement .
- Remove the vacuum hoses from the bypass actuator.

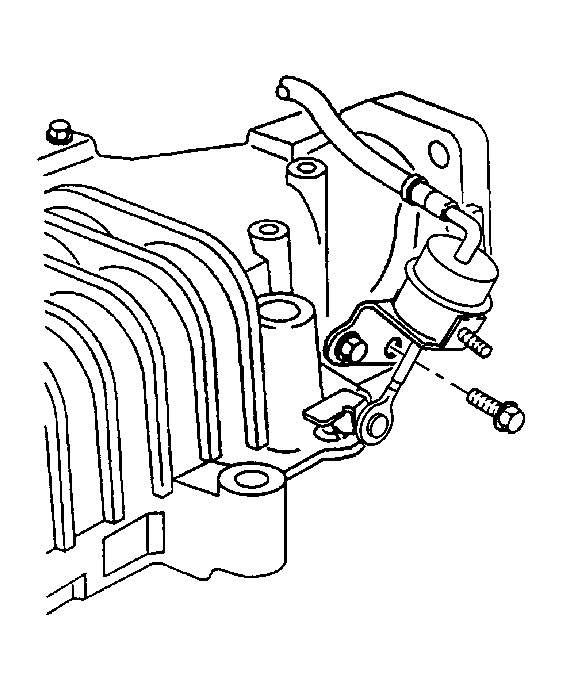

- Remove the bypass valve actuator mounting bolts and rotate the bypass valve actuator until the rod disengages the lever.
