2004 Chevrolet Epica LSFACTORY OEM SERVICE PROCEDURE

Installation Procedure

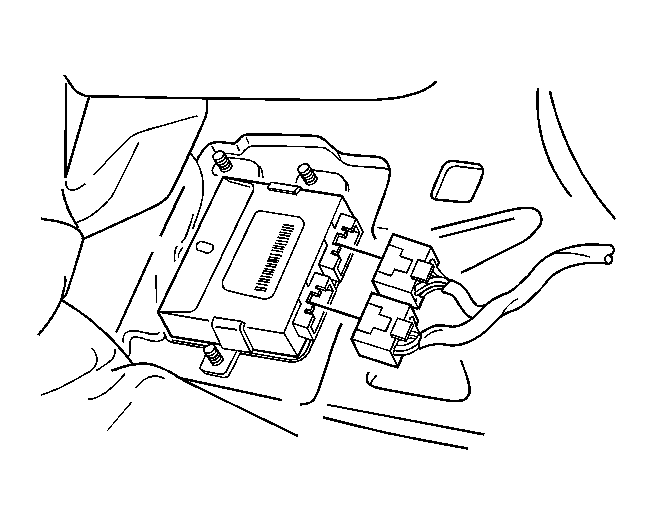

Fig 1: View Of ECM And Connectors

Courtesy of GENERAL MOTORS CORP.

Aline the ECM into the mounting base.
Connect the ECM connectors to the ECM.

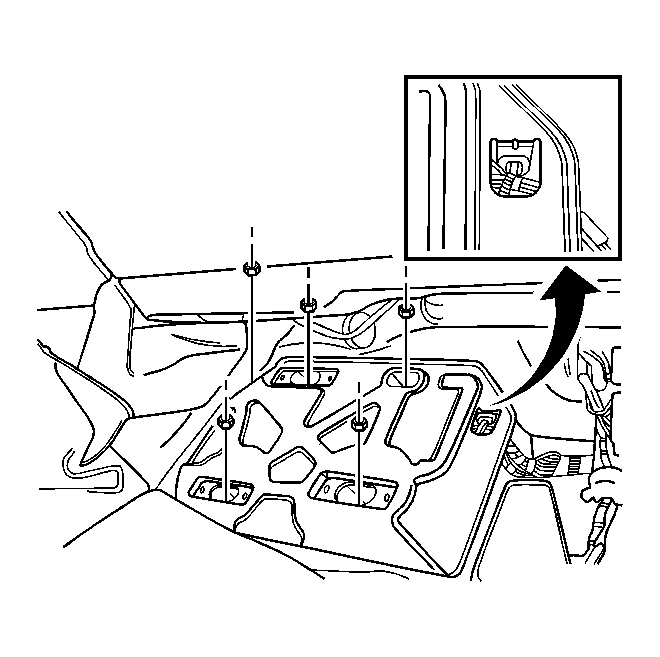

Fig 2: View Of ECM Cover And Retaining Nuts

Courtesy of GENERAL MOTORS CORP.

Install the front floor cover of the passenger.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the ECM retaining nuts.
Tighten: Tighten the ECM retaining nuts to 8 N.m (71 lb in) .
Connect the negative battery cable.
