2004 Chevrolet ClassicFACTORY OEM SERVICE PROCEDURE

Cruise Control Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

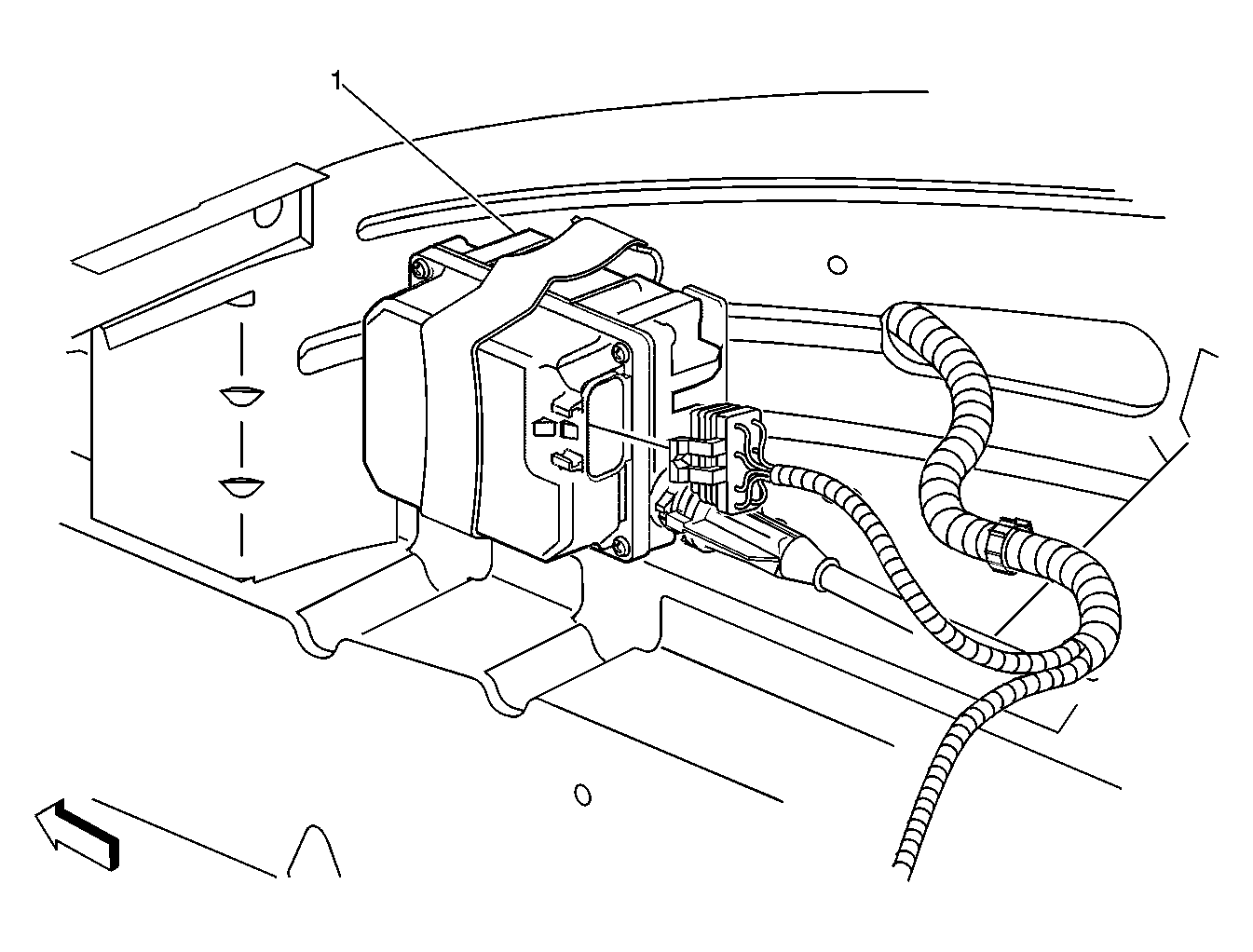

Fig 1: Right Side of Engine Compartment Component View
GM409956Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cruise Control Module (CCM)

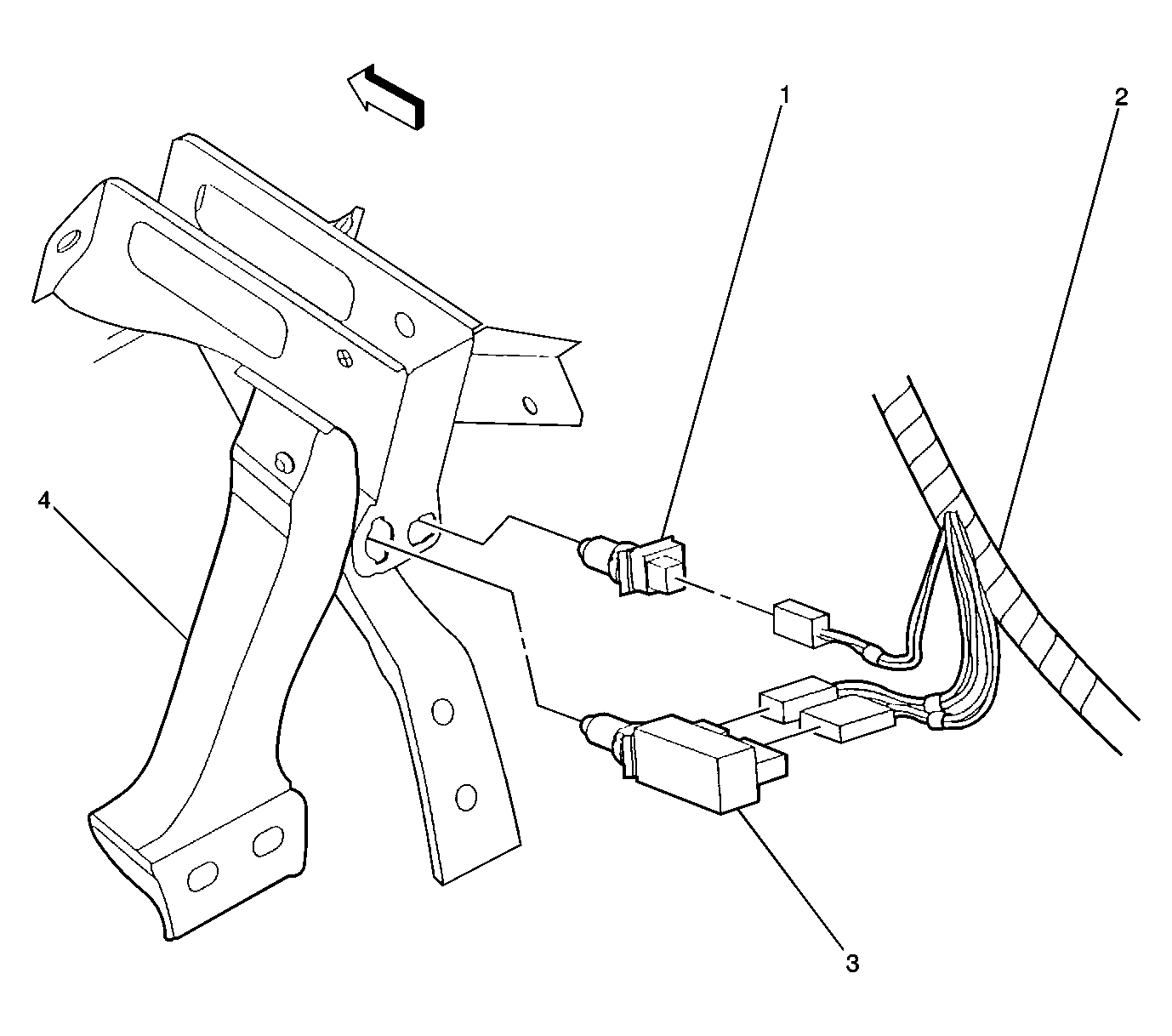

Fig 2: Below the Left Side of the I/P, Near the Steering Column Component View
GM409957Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 TCC/Brake Switch
2 Dash Harness
3 Stop Lamp Switch
4 Brake Pedal

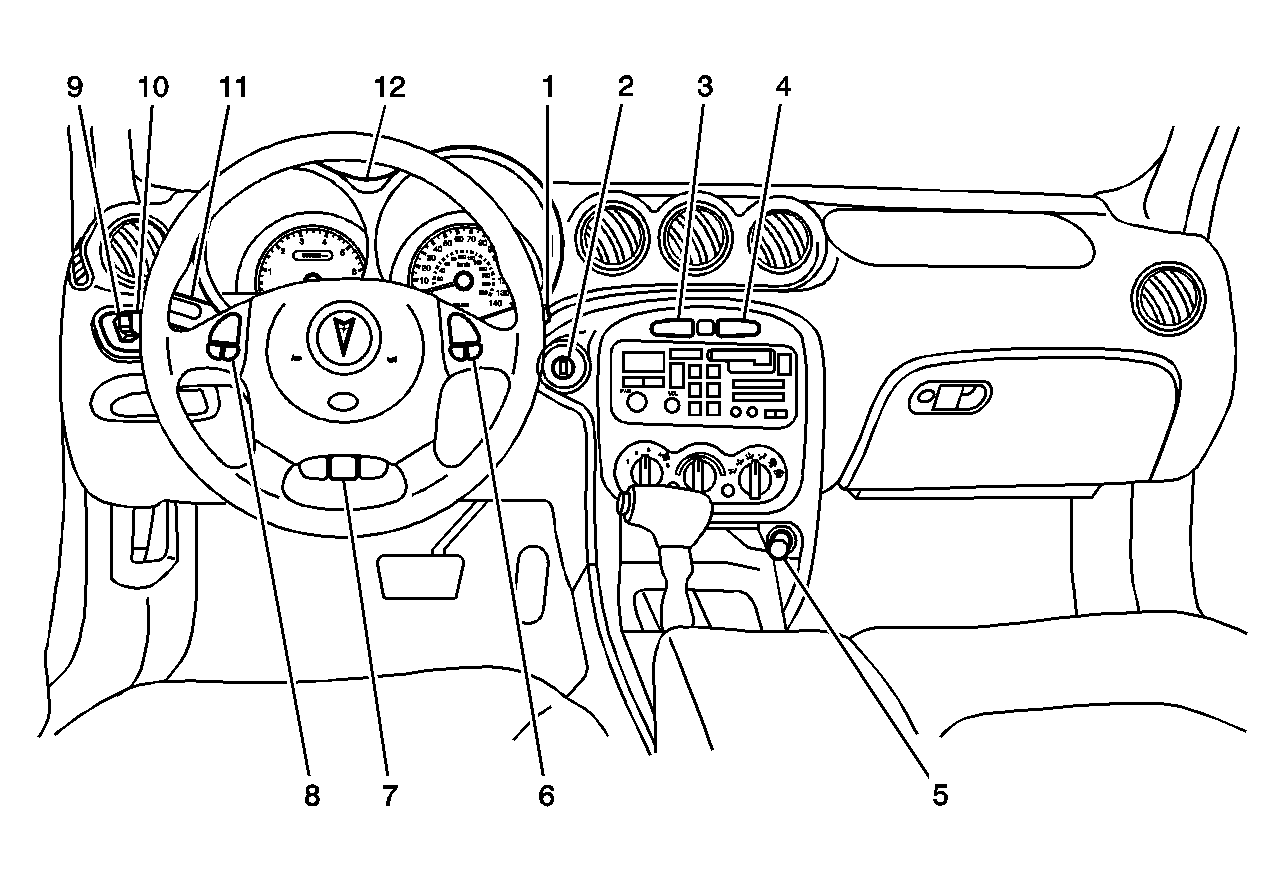

Fig 3: Instrument Panel Component View
GM747979Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Ignition Switch
3 Traction Control Switch (Pontiac)
4 Hazard Switch
5 Cigar Lighter
6 Steering Wheel Controls - Right
7 Cruise Control ON/OFF Switch
8 Steering Wheel Controls - Left
9 Fog Lamp Switch
10 I/P Dimmer Switch
11 Turn Signal/Multifunction Switch
12 Instrument Panel Cluster (IPC)

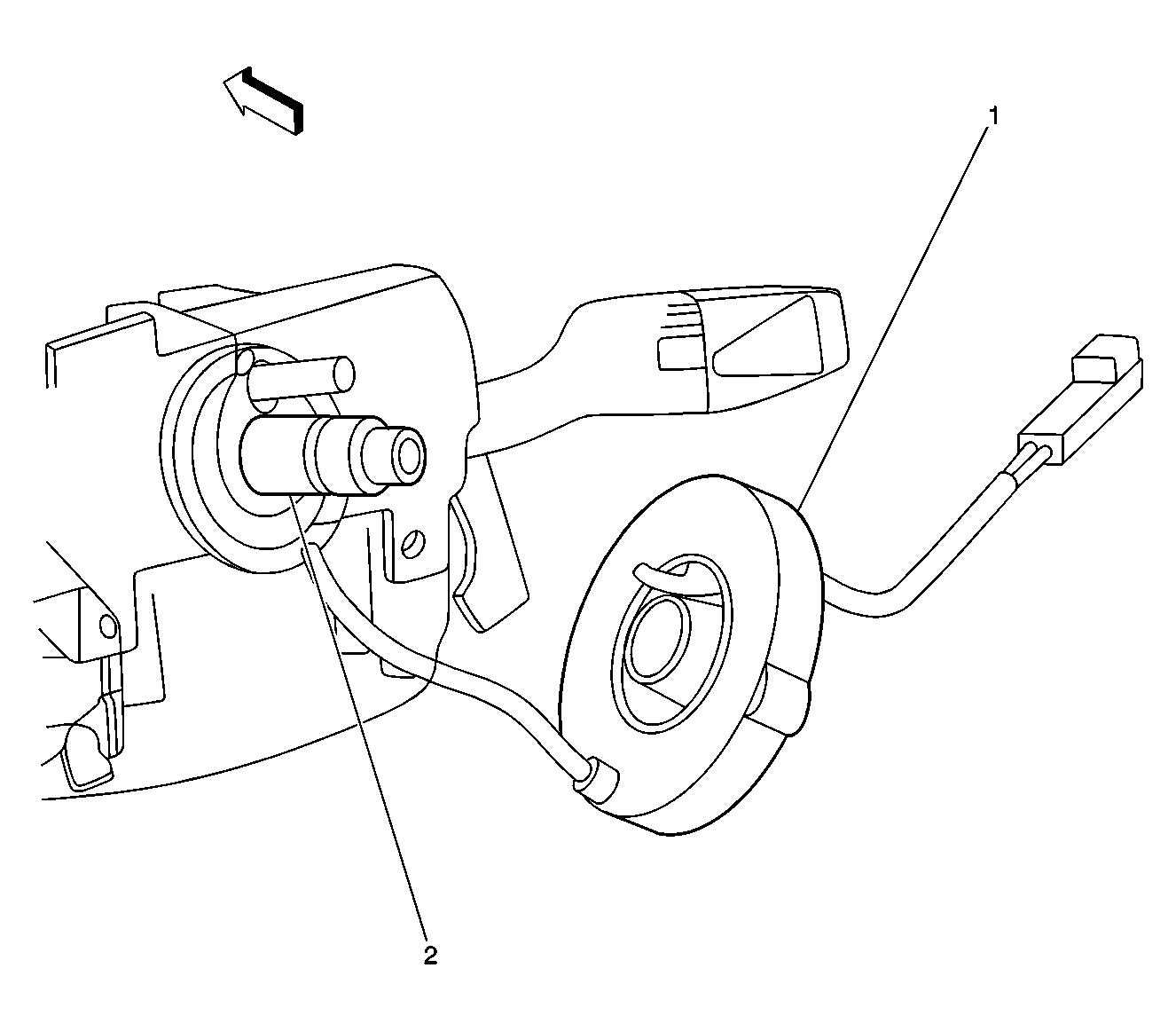

Fig 4: Inflatable Restraint Steering Wheel Module Coil Component View
GM385912Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module Coil
2 Steering Column Assembly
