2004 Chevrolet ClassicFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure .
- Disconnect the vacuum pipe from the fuel pressure regulator.
- Place a shop towel under the fuel pressure regulator in order to catch any fuel spillage.

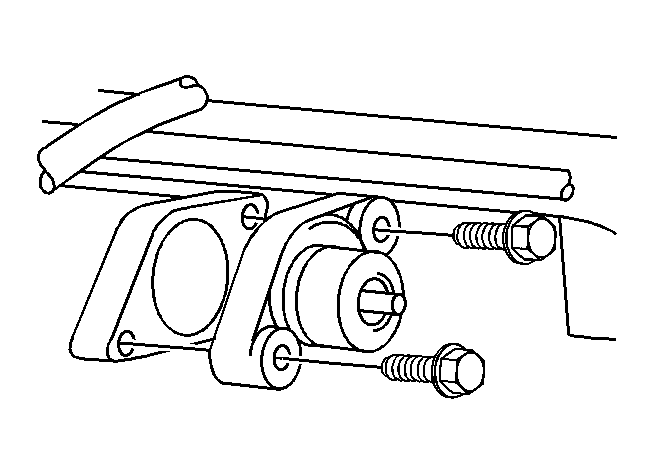

- Remove the retaining bolts from the fuel pressure regulator.
- Remove the fuel pressure regulator.
- Remove any seal or seal material left on the fuel rail (1).
