2004 Chevrolet ClassicFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
- Remove the fuel pump and fuel level sensor electrical retaining clip at the top of the fuel sender assembly.
- Disconnect the fuel pump and fuel level sensor electrical connector.

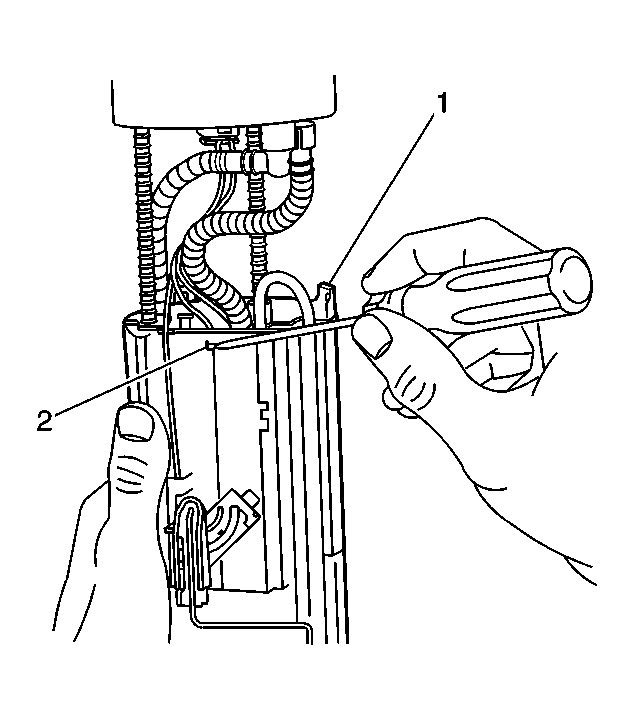

- Depress the 3 tabs (1) securing upper fuel reservoir and slide upward until free of lower reservoir (2).

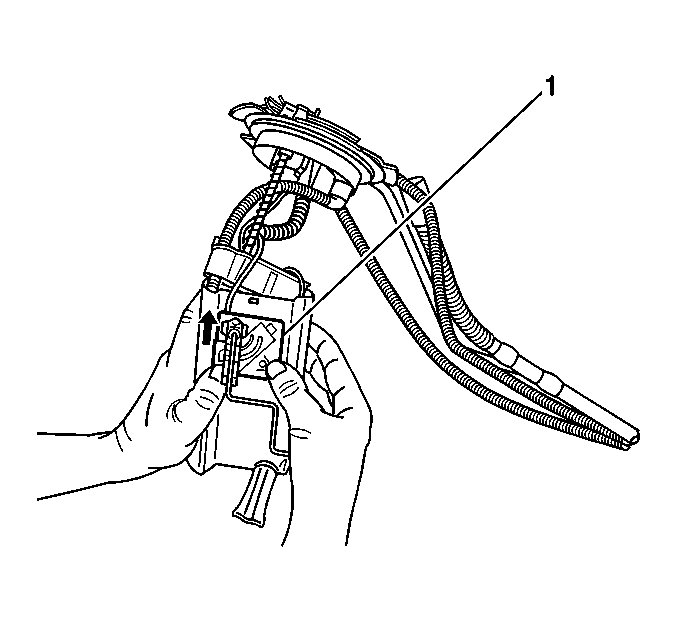

- Depress the tab on the fuel level sensor (1) while sliding up and out of the housing.
- Remove the retaining clip from the electrical connector.
- Remove the fuel level sensor wires from the connector, taking care to note the location of the wires.
