2004 Chevrolet ClassicFACTORY OEM SERVICE PROCEDURE

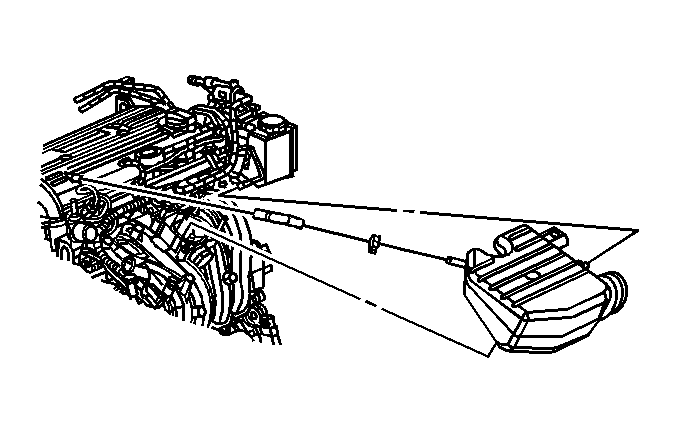

Removal Procedure
- Loosen the vent hose clamp at the air cleaner resonator.
- Loosen the air cleaner intake duct clamp at the air cleaner outlet resonator.
- Loosen the air cleaner outlet resonator to throttle body clamp, located forward of the accelerator cable bracket.
- Remove the air cleaner resonator to accelerator bracket bolt.
- Remove the resonator from the throttle body, the air cleaner intake duct and the vent hose.
