Installation Procedure
- Clean the EBCM gasket and the BPMV surface with alcohol using a clean rag.

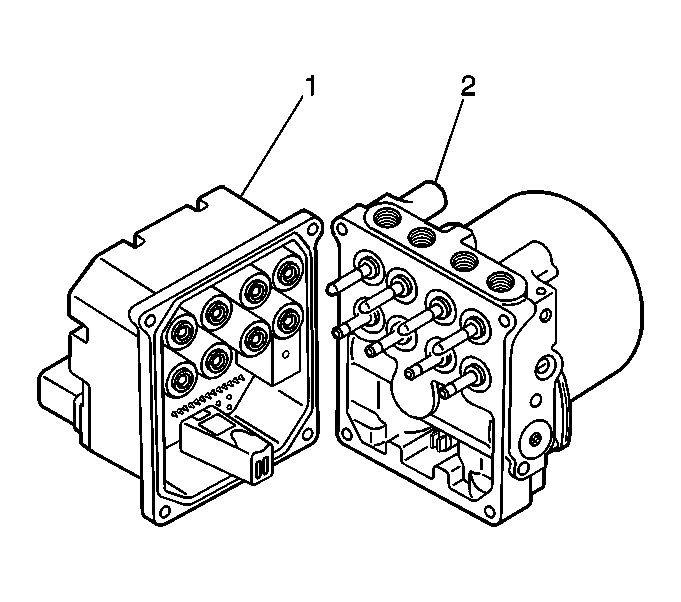

- Install the EBCM (1) to the BPMV (2).
- Install the 4 screws that attach the EBCM (1) to the BPMV (2).
Tighten: Tighten the screws to 5 N.m (44 lb in).

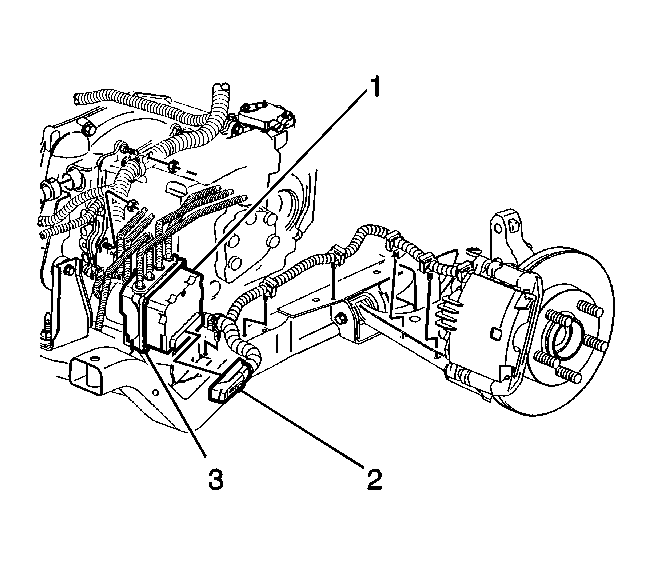

- Connect the EBCM harness connector (2) to the EBCM (1).
- Push down the harness connector lock tab (1) and then move the sliding connector cover back in the home position to lock.
- Push the CPA (2) back into place.
- Install the left engine splash shield.
- Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
- Perform the Diagnostic System Check - ABS .
