2004 Chevrolet Avalanche 2500FACTORY OEM SERVICE PROCEDURE

Installation Procedure

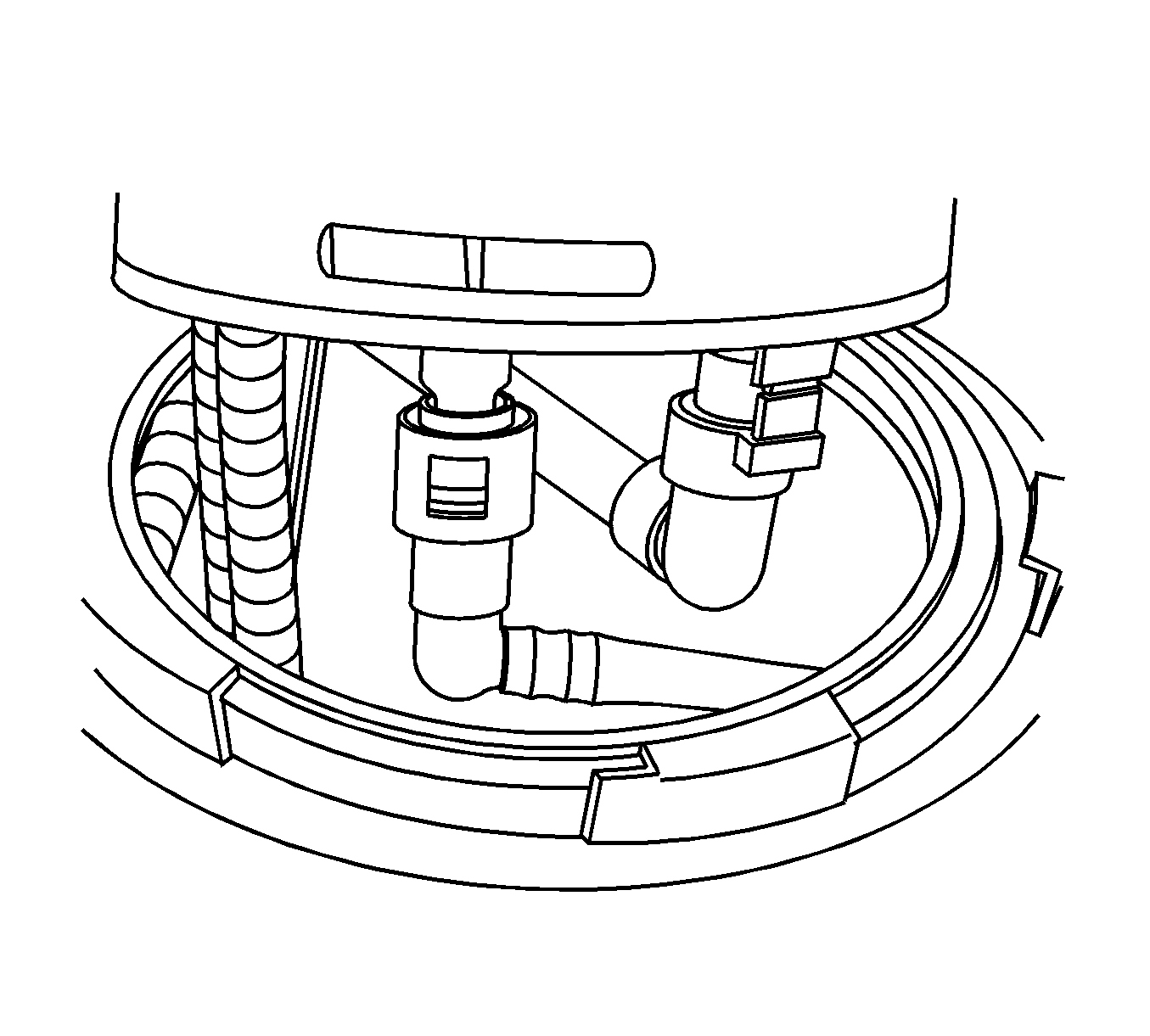

Fig 1: View Of Vapor Line Quick Connect Fittings (Rear Tank)

Courtesy of GENERAL MOTORS CORP.

Install a NEW fuel tank module seal onto the fuel tank.
Position the fuel tank module part way into the fuel tank.
Connect the vapor line quick connect fittings, to the module. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
Install the module into the fuel tank.
Place the lock ring into position.

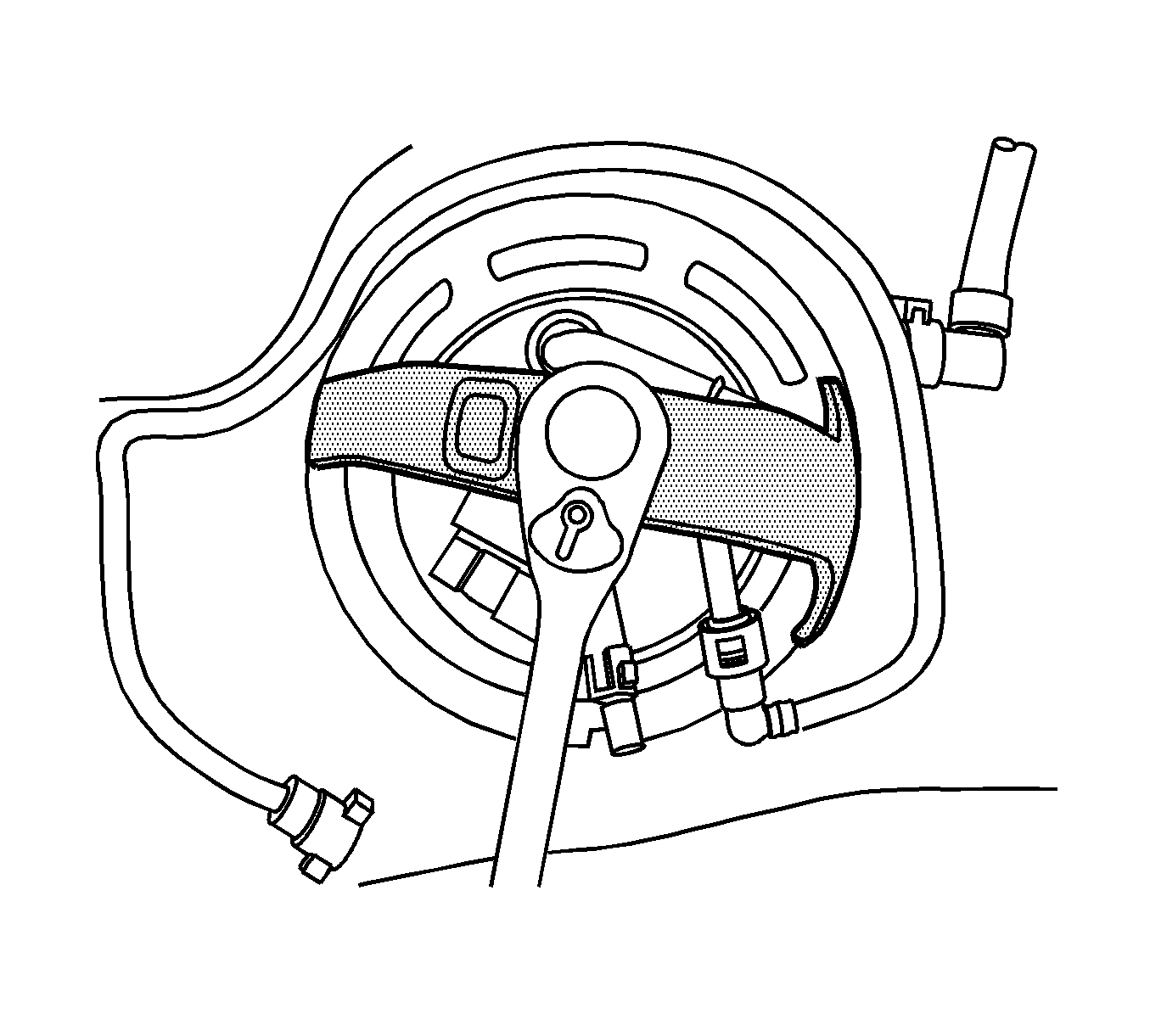

Fig 2: Rotating Lock Ring Using J 45722 (Rear Tank)

Courtesy of GENERAL MOTORS CORP.
