2004 Chevrolet Avalanche 2500FACTORY OEM SERVICE PROCEDURE

Removal Procedure

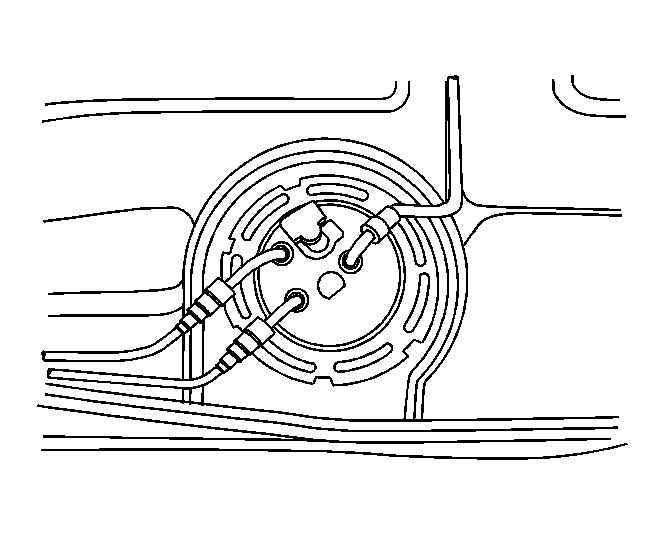

Fig 1: View Of Fuel & EVAP Lines At Fuel Tank Module (Front Tank)

Courtesy of GENERAL MOTORS CORP.

Remove the front fuel tank. Refer to Fuel Tank Replacement (Front Tank) or Fuel Tank Replacement (Rear Tank) .
Disconnect the fuel and evaporative emission (EVAP) lines from the fuel tank module. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .

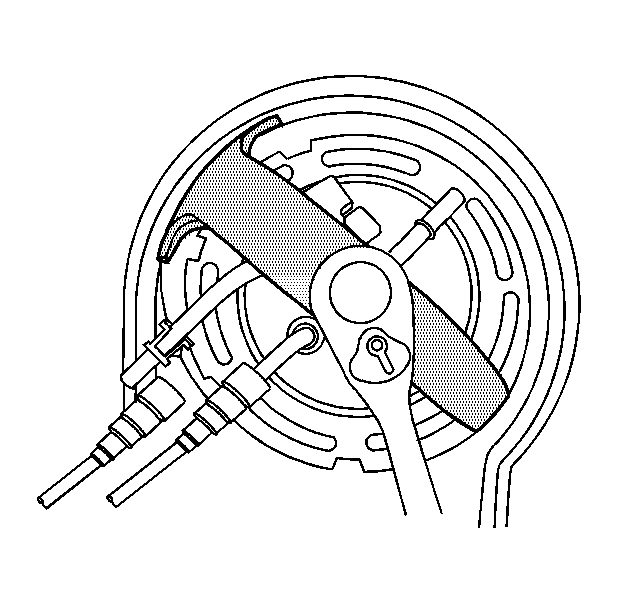

Fig 2: Rotating Lock Ring Using J 45722 (Front Tank)

Courtesy of GENERAL MOTORS CORP.
