2004 Chevrolet Avalanche 2500FACTORY OEM SERVICE PROCEDURE

Removal Procedure

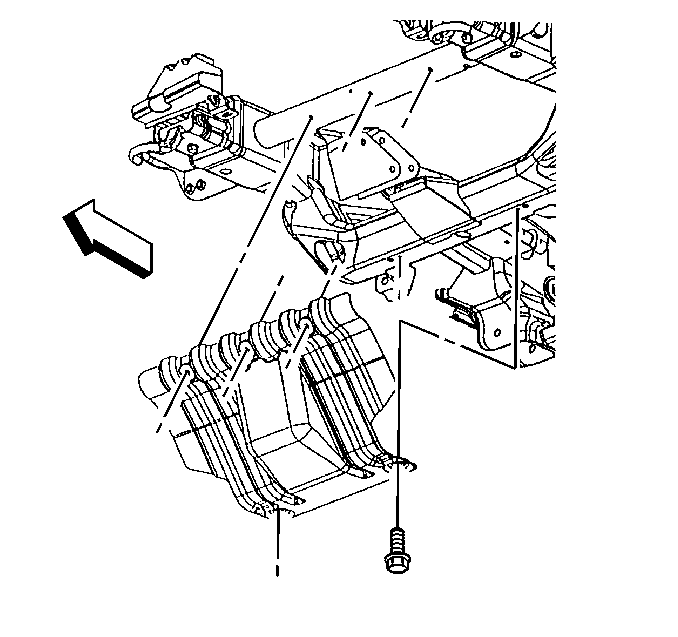

Fig 1: View Of Engine Protection Shield

Courtesy of GENERAL MOTORS CORP.

Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Remove the engine shield bolts and shield, if equipped.

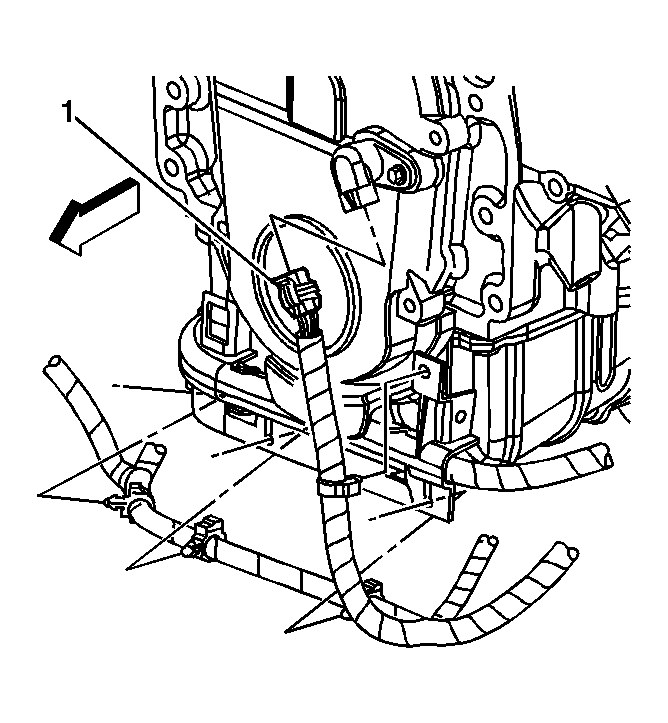

Fig 2: View Of CMP Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the camshaft position (CMP) sensor electrical connector (1).

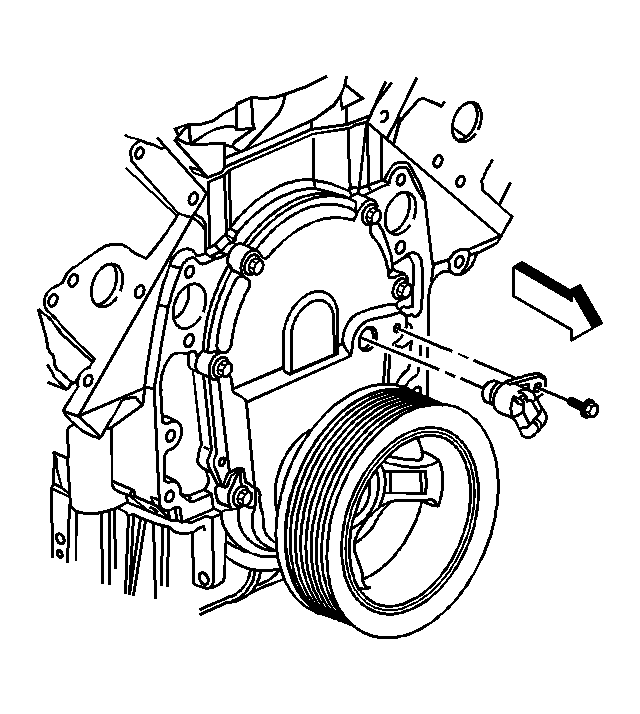

Fig 3: View Of CMP Sensor & Bolt

Courtesy of GENERAL MOTORS CORP.

Remove the CMP sensor bolt.
Remove the CMP sensor.
Inspect the CMP sensor for wear, cracks or leakage if the sensor is not being replaced.
