2004 Chevrolet Avalanche 2500FACTORY OEM SERVICE PROCEDURE

Removal Procedure

Fig 1: View Of MAF/IAT Sensor Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Remove the intake air resonator. Refer to Intake Air Resonator Replacement .
Disconnect the mass air flow/intake air temperature (MAF/IAT) sensor electrical connector (3).

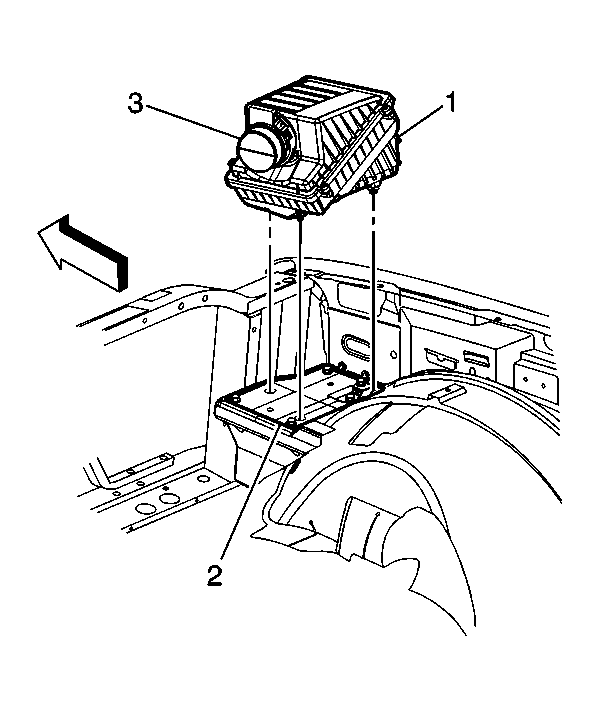

Fig 2: View Of Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

Pull up on the air cleaner assembly (1) in order to release the retainers from the air cleaner adapter (2).

Fig 3: View Of Air Cleaner Assembly, MAF/IAT Sensor & Clamp

Courtesy of GENERAL MOTORS CORP.

If necessary, loosen the MAF/IAT sensor clamp.
Remove the MAF/IAT sensor.
