2004 Chevrolet Astro Van Cargo, RWDFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the engine cover. Refer to Engine Cover Replacement in Interior Trim.
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Resonator Replacement .
Remove the accelerator cable from the throttle lever.

Fig 1: Identifying Accelerator Cable/Throttle Body Lever
Courtesy of GENERAL MOTORS CORP.
Remove the accelerator cable from the engine cable bracket.

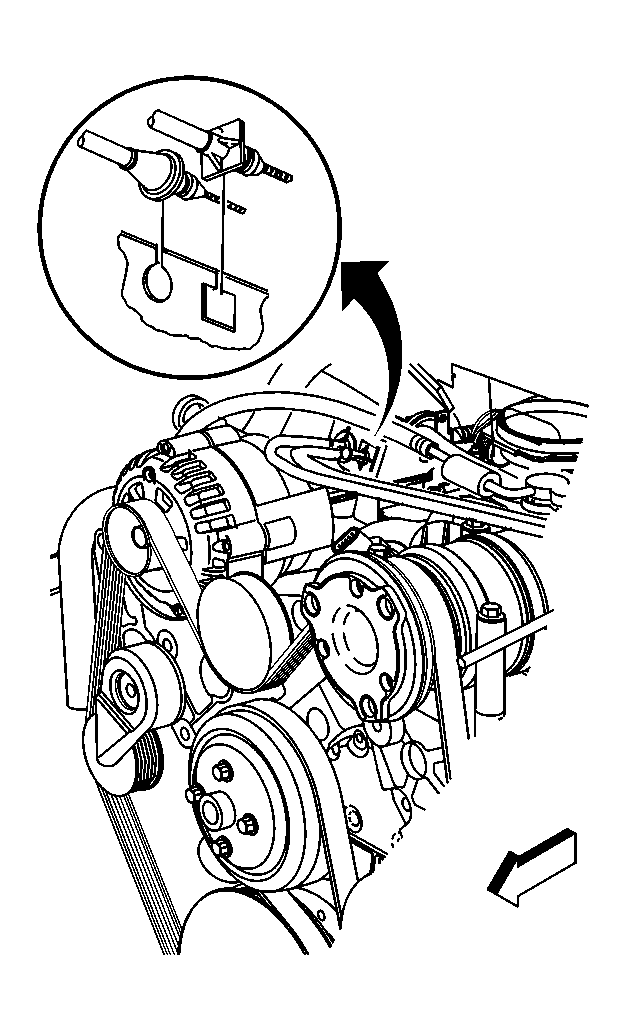

Fig 2: Expanded View Of Accelerator Cable From The Engine Cable Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the accelerator cable (1) from the accelerator pedal (3).

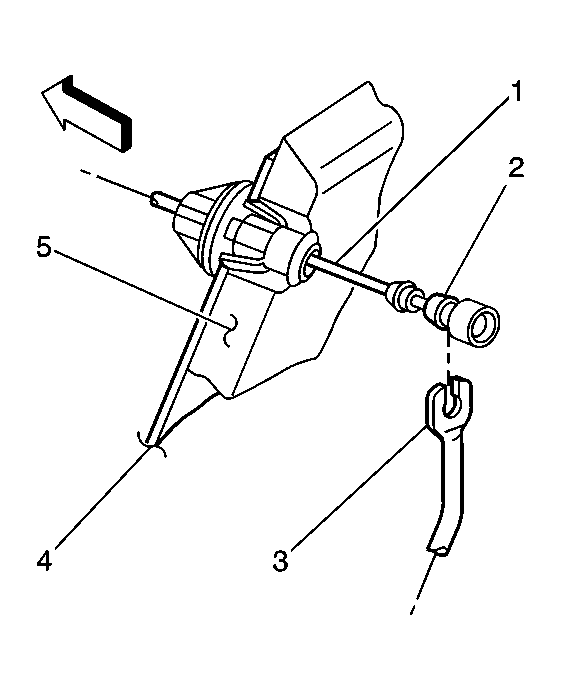

Fig 3: Identifying Accelerator Cable Assembly Components
Courtesy of GENERAL MOTORS CORP.
Remove the accelerator cable assembly from the bulkhead (1).

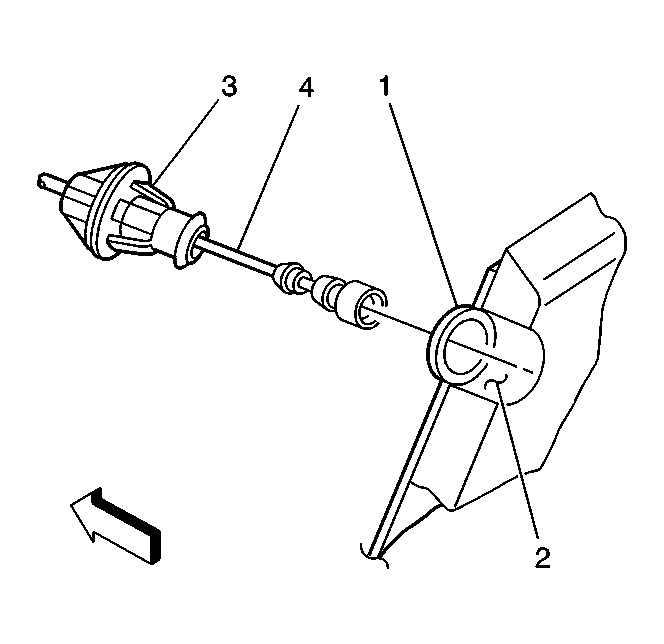

Fig 4: Expanded View Of Accelerator Cable Assembly At The Bulkhead
Courtesy of GENERAL MOTORS CORP.
