2004 Chevrolet Astro Van Cargo, AWDFACTORY OEM SERVICE PROCEDURE

Assembly Procedure

IMPORTANT: Installing the driven gear 180 degrees out of alignment, or locating the rotor in the wrong holes, will cause a no-start condition. Premature engine wear or damage may result.

Line up the square-cut hole in the vane wheel for the camshaft position (CMP) sensor.

Fig 1: Identifying Square-Cut Hole In Vane/Reluctor Wheel
Courtesy of GENERAL MOTORS CORP.

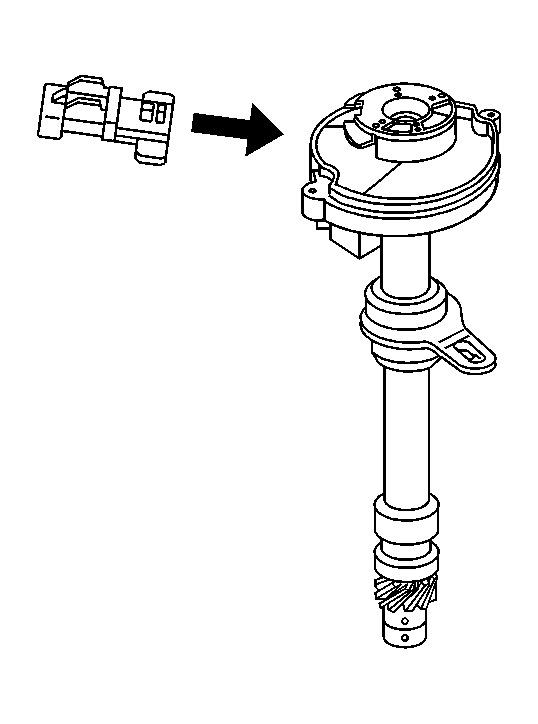

Insert the sensor into the housing.

Fig 2: View Of CMP Sensor
Courtesy of GENERAL MOTORS CORP.
